Glass Mold Cleaning Ceramic Blasting Media 62 - 66% Zirconia Beads B40 High Toughness
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet |
| Delivery Time: | 3-10 days depending on the order quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200mt per month |
|
Detail Information |
|||
| Product Name: | Zirconia Beads | Usage: | Glass Mold Cleaning |
|---|---|---|---|
| Specification: | B40 | Particle Size: | 0.250-0.425mm |
| Process: | Melting | Vicker Hardness: | 700HV |
| High Light: | abrasive blasting media,ceramic bead blasting media |
||
Product Description

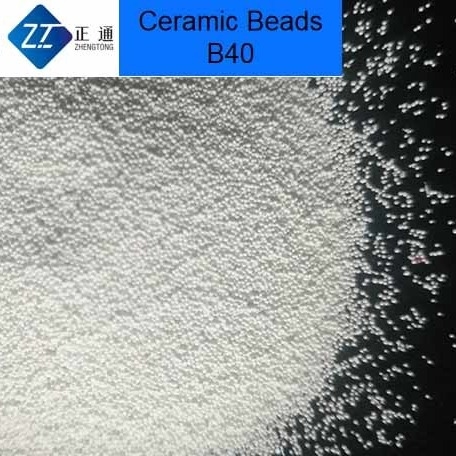

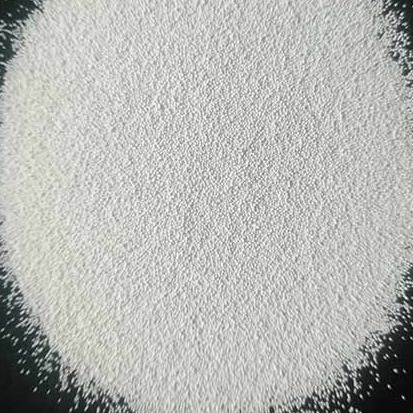

High Toughness 62 -66% Zirconia Beads Ceramic Blasting Media B40 for glass mold cleaning
1. Product Description
Zirconia ceramic blasting beads is also named as zirconia beads, it is produced by high quality Zirconium
Sand in electric furnace under high temperature over 2000 degrees,then made into different particle size
from B20 to B205, the special specification can be customized accordingly.
Zirconia Ceramic Beads is one kind of zirconia beads,it is widely used for blasting purpose.
People are usually confused it with another zirconia beads---zirconium silicate beads,here we just make
a simple comparation:
| Item | Ceramic Blasting Beads | Zirconium Silicate Beads |
| Chemical Index | ZrO2 62-66% SiO2 25-30% Al2O3 7-13% |
ZrO2 ≥65% SiO2 25-30% Others ≤1.0% |
| Processing Method | Melting | Sintering |
| Vickers Hardness | ≥700 HV | ≥900 HV |
| True Specific Gravity | ≥3.85 g/cm3 | ≥4.0g/cm3 |
| Bulk Density | ≥2.3g/cm3 | ≥2.5g/cm3 |
| Particle Size | B20-B205 etc | Φ0.1-50mm |
| Usage | Blasting Media | Grinding Media |
Seen from the above chart,ceramic beads has different index both in chemical and physical index.
Then,they have different applications,one in blasting and the other in grinding.
2. Specification of Zirconia Beads Ceramic Blasting Media
| Particle Size | |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized | |
3. Main Application of Blasting Ceramic Beads
B20 & B30 for metal surface shot peening
B40 for cleaning the glass molds
B60 for the pipeline inner and outer wall blast cleaning
B120 for the surface finish of golf club or medical instruments
B170 used for sandblasting the metal surface and built-in parts of iphone,ipad,ipod;
B205 for metal surface finishing of 3C products etc.
In addition,Ceramic Beads is also used as Shot peening media in aerospace and automotive industry
such as aerospace engine blades, turbines etc.
Surface Pretreatment for electroplating, painting, anode etc., to remove the impurity and increase product
surface adhesion.
4. Applicable Equipment:
Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting Room
5. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
6. Why Choose us?
Professional Manufacturers of Zirconia Ceramic Beads;
Stable quality and good after-sales service;
Main supplier of Foxconn,Samsung etc.
