High Efficiency Ceramic Blasting Media B60 Specification Pipeline Zirconia Sand

Minimum Order Quantity : 100KGS Price : Negotiation
Packaging Details : 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet Delivery Time : 3-10 days depending on the order quantity
Payment Terms : L/C, T/T, Western Union Supply Ability : 200mt per month
Place of Origin: Shanxi,China Brand Name: FUDA
Certification: ISO9001,ISO14001 Model Number: B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400

Detail Information

Product Name: Zirconium Sand Usage: Pipeline Surface Cleaning
Specification: B60 Particle Size: 0.125-0.250mm
Vicker Hardness: 700 HV Free Sample: Available
High Light:

abrasive blasting media


bead blasting material

Product Description

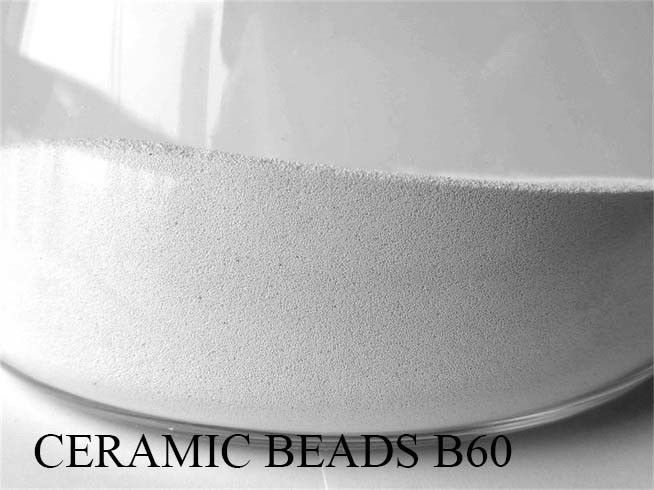

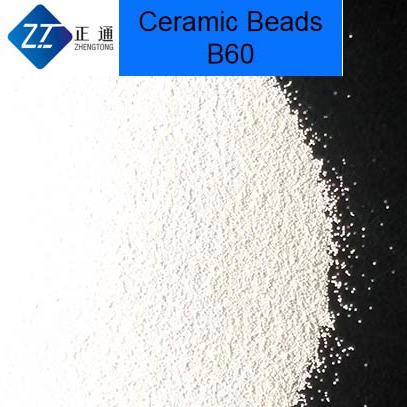

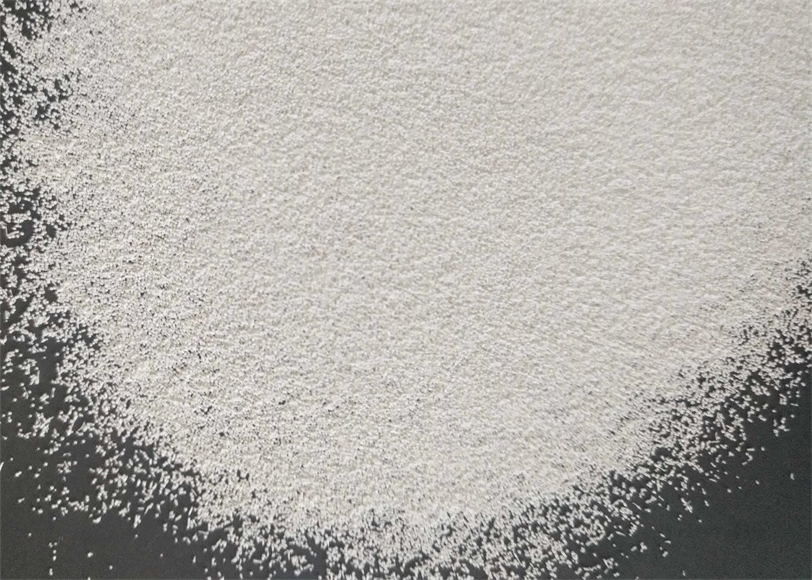

High Efficiency Ceramic Blasting Media Zirconia Beads B60 for Pipeline Cleaning

1.  Product Description

The ceramic blasting media zirconia beads is obtained from zirconium sand in electric furnace

through the special technology.It is widely used in surface finishing  processes to improve the wear

properties of metal surfaces, then  achieve better visual effect and texture.

2. Main Technical Index of Ceramic Blasting Media Zirconia Beads

Commodity Main Chemical Index Main Physical Index

  Ceramic Blasting Media

Zirconia Beads

(Melting Method)

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13%

Vickers Hardness: 700 kg /mm2


Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized


3. Product Features of Ceramic Blasting Media Zirconia Beads


High Hardness and Good Elasticity

Ceramic beads has high hardness and good elasticity,it is able to be rebounded in multi-angles in

peening process,it is especially suitable for light metal workpieces to improve the visual effect;


No damage to the Treatment Surface

Ceramic Beads is spherical in shape and superior smoothness,so there is no damage to the blasting

equipment and treatment surface;


Low Breakdown Rate and High Price/ performance ratio

The greater density of ceramic beads makes it higher modulus of elasticity and greater impact energy,

it will reduce shot peening pressure and energy consumption to get the same shot peening effect.Its

lower breakdown rate will reduce the refueling times, improve working efficiency,then finally save the

production cost;


No Ferrous Contamination to the workpieces

Zirconia Ceramic Beads contains zero iron,then there is no ferrous contamination for treatment surface,

it can be used to replace steel shot where ferrous contamination is not allowed.


Clean and Healthy Working Environment

Low dust generated in peening process,it will create cleaner working environment and better visul sense,

the operator will escape from the danger of silicosis.


4. Main Application of Ceramic Blasting Media Zirconia Beads


Surface cleaning for aluminium alloy,tatinium alloy and stainless steel etc;


Surface Pretreatment for electroplating, painting, anode etc., to remove the impurity and increase product

surface adhesion;


Surface finish for delicate medical instruments to make small rounded conners at thejunction of two surfaces

to enhance the smoothness and texture;


Surface shot peening for automotive and aviation components such as automotive gears, aerospace engine

blades, turbines etc to improve the fatigue life.


5. Applicable Equipment:


Manual Sandblasting machine;

Automatic Blasting Machine;

Open Blasting Machine;

Sandblasting Room

6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.

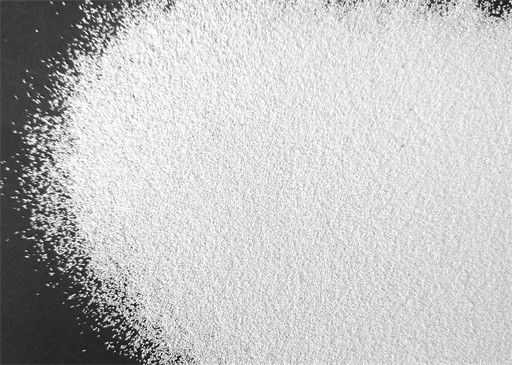

High Efficiency Ceramic Blasting Media B60 Specification Pipeline Zirconia Sand 0

7. FAQ

Are you direct Manufacturer of Zirconia Ceramic Beads ?

Yes,we are professional manufacturer,equipped with the most advanced production line and testing



Are you able to provide free samples?

Yes, few quantity free sample is avialable.


Could you please name your some clients?

Yes, our clients includes Foxconn, Samsung Electronics etc.


If you have any other questions,please contact me freely.
