Artificial Abrasive Plastic Media Blasting Nylon Sand PA60 For Surface Pre - Treatment

Minimum Order Quantity : 25kgs Packaging Details : 25kgs paper bags+Pallet
Delivery Time : 5-8 working days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 300MT Per Month
Place of Origin: Henan, China Brand Name: Meilan
Certification: ISO 9001 Model Number: PA10-PA120

Detail Information

Shape: Cylindrical Material: PA Polyamide Nylon 6
Color: White, Red Specific Gravity: 1.14 G/cm3
Tensile Force: 750 Kg / Cm2 Bending Stress: 1000 Kg / Cm2
Molding Shrinkage: 1.2—1.5%
High Light:

plastic bead blasting media

,

plastic abrasive blasting media

Product Description

Color White and Red Nylon sand blasting media for surface pre-treatmentof the circuit board



  • Description

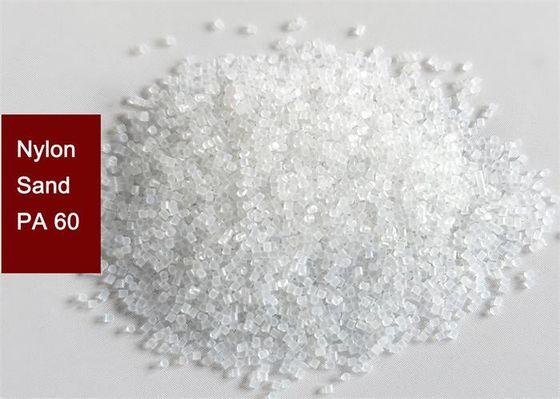

Nylon sand is a kind of artificial abrasive, the material POLYAMIDE, also called PA. It is translucent milky white/red/crystalline thermoplastic polymer particles. The shape of Nylon sand is Cylinder, mainly used for sandblasting, rough edge processor, and shot blasting.

  • Specification



Size Diameter*Length mm Color
PA10 0.10*0.10 White
PA15 0.15*0.15 White
PA20 0.20*0.20 White
PA30 0.30*0.30 White
PA40 0.40*0.40 White
PA50 0.50*0.50 White
PA60 0.60*0.60 White
PA80 0.80*0.80 White
PA100 0.80*0.80 White
PA120 1.00*1.00 White

Remark: Dimension accuracy ±0.05mm

Special specification and color can be customized





  • Physical Index:



Shape: Cylindrical
Color: Translucent milky white or Red
Material: Nylon 6
Hardness: Rockwell hardness HRC 120
Specific gravity: 1.14 g/cm3
Tensile force: 750 kg / cm2
Bending stress: 1000 kg / cm2
Water absorption rate 23 ℃: 1.8%
Molding shrinkage: 1.2—1.5%
Melting point: 220 ℃



  • Main Features

1.Soft and weak, with certain toughness, no cutting property, no damage to treated workpieces, it will reduce the defect rate of the treated workpieces

2. Not only remove the burrs and throns on the surface of treated workpiece,but also no damage to treated workpieces. Low dust generated in the cleaning process.





  • Application

PA Nylon sand has certain toughness and non-cutting properties, it will not cause damage to the product to be processed during use, at the same time, it has a long service life.

It is mainly used in below fields:

1. To clean the burr and overflow glue on the surface, holes and recesses of plastic, bakelite, resin and other products;



  • Deburring processing of various resin molding products, engineering plastics, thermosetting resin, standard Kuang module, rubber products, non-ferrous metal cutting processing, and fine burring removal processing of metal grinding processing, etc.



Artificial Abrasive Plastic Media Blasting Nylon Sand PA60 For Surface Pre - Treatment 0







Nylon sand will generate static electricity in the process of recycling; that is, there will be a lot of powder adhere to the surface of the product and it is difficult to clean up. Using an appropriate amount of antistatic liquid at the same time during use can prevent this from happening, and can make the machine in a long Maintain normal temperature during use to maintain the machine and extend its life.
