PA Nylon Sand Plastic Media Blasting Size PA40 For Mobile Phone Shells Deburring

PA Nylon Sand Plastic Media Blasting Size PA40 For Mobile Phone Shells Deburring

Product Details:

Place of Origin: Henan, China
Brand Name: Meilan
Certification: ISO 9001
Model Number: PA40: 0.40mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kgs
Packaging Details: 25kgs paper bags+Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300MT Per Month
Get Best Price Contact Now

Detail Information

Material: Plastic Media Blasting PA Polyamide Nylon 6 Function: Mobile Phone Shell Deburring
Shape: Cylindrical Molding Shrinkage: 1.2—1.5%
Specific Gravity: 1.14 G/cm3 Tensile Force: 750 Kg / Cm2
Bending Stress: 1000 Kg / Cm2
High Light:

PA40 Plastic Media Blasting

,

Plastic Media Blasting for Shells Deburring

,

PA40 Nylon Sand

Product Description

PA Nylon sand Plastic Media Size PA40 for mobile phone shells deburring​



  • Description

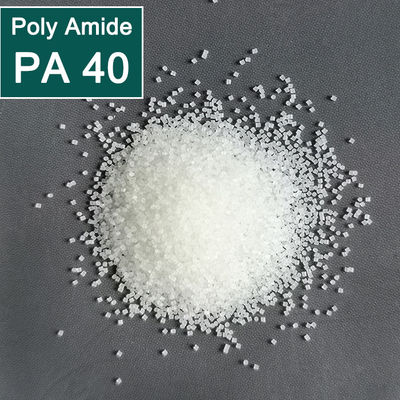

The main raw material of nylon sand is polyamide fiber (POLYAMIDE); the shape is translucent white crystalline thermoplastic polymer particles. Nylon particles (deburring particles), soft and no cutting, the spherical shape does not damage the workpiece, the material is soft and the service life is extra long.



Nylon sand is mainly used for sandblasting and shot blasting equipment. In cleaning, it can remove burrs and spurs on the surface of the workpiece without causing damage to the surface of the workpiece.

  • Specification



Size Diameter*Length mm Color
PA10 0.10*0.10 White
PA15 0.15*0.15 White
PA20 0.20*0.20 White
PA30 0.30*0.30 White
PA40 0.40*0.40 White
PA50 0.50*0.50 White
PA60 0.60*0.60 White
PA80 0.80*0.80 White
PA100 0.80*0.80 White
PA120 1.00*1.00 White

Remark: Dimension accuracy ±0.05mm

Special specification and color can be customized





  • Main Features

1.Soft and weak, with certain toughness, no cutting property, no damage to treated workpieces, it will reduce the defect rate of the treated workpieces

2. Not only remove the burrs and throns on the surface of treated workpiece,but also no damage to treated workpieces. Low dust generated in the cleaning process.





  • Application

DEBURRING FOR MOBILE PHONE SHELLS



In the CNC machining process of the middle plate or bottom plate of mobile terminal equipment (for example, mobile phone, tablet computer), since various burrs are generated when the tool cuts the blank, it is necessary to increase the deburring process. The manual deburring process has low efficiency, incomplete burr removal, and easily scratches the surface of the workpiece during the deburring process.



PA Nylon Sand Plastic Media Blasting Size PA40 For Mobile Phone Shells Deburring 0



Nylon sand is soft and weak, and has a long service life. It can be used in sandblasting guns to deburr mobile phone shells. Generally, 0.30-0.50mm nylon sand is used.
This sandblasting and deburring process uses a high-pressure spray gun to spray nylon sand onto the protected workpiece to complete the burr removal in the workpiece. The processing efficiency is high and the surface of the workpiece will not be scratched.
