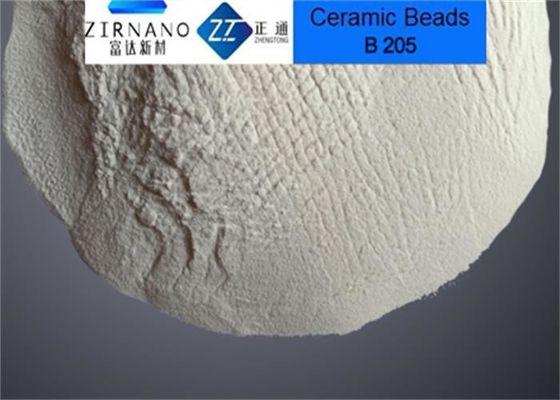

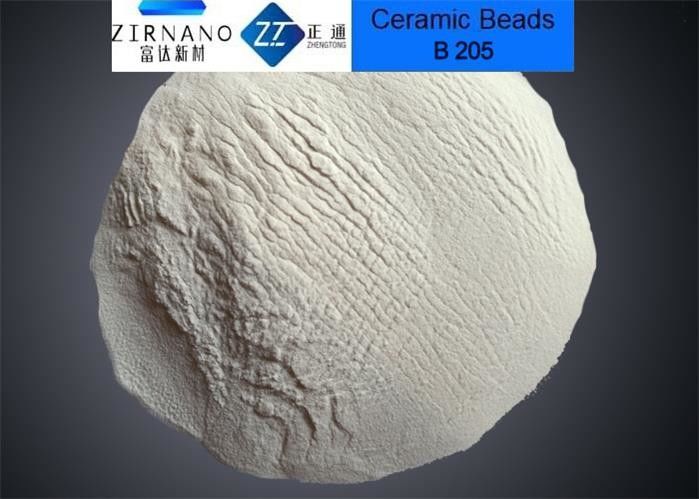

No Ferrous Ceramic Beads Zirconia Blasting Media B205 for 3C metal surface finish

Product Details:
Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B505
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month

Detail Information

Product Name: Ceramic Beads Usage: 3C Metal Surface Finish
Specification: B205 Particle Size: 0.000-0.063mm
Process: Melting Vicker Hardness: 700HV
High Light:

bead blasting material


ceramic bead blasting media

Product Description

No Ferrous Ceramic Beads Zirconia Blasting Media B205 for 3C metal surface finish

1.Product Description of  Ceramic Beads Zirconia Blasting Media

Ceramic Beads also named as zirconia blasting beads,the main chemical composition is about 62-66%

ZrO2,25-30% SiO2,7-13% Al2O3,it selects the zirconium sand as main materials, melting in an electric

furnace,then made by special technology to different particle sizes.

It has the characteristic of high hardness,high toughness,good spherical, high strength,low breakdown

rate,no silicosis danger. Then it is widely used as one blasting media to replace the glass beads.


2.The Comparation between Ceramic Beads,Glass Beads,Steel Beads

Item Ceramic Blasting Beads Glass Beads Steel Beads
Chemical Index ZrO2 62-66%
SiO2 25-30%
Al2O3 7-13%



C 0.8-1.2%
Si 0.45-1.50%
Mn 0.60-1.20%
Vickers Hardness ≥700 HV ≥560HV ≥700 HV
True Specific Gravity ≥3.85 g/cm3 ≥2.5g/cm3 ≥7.8 g/cm3
Particle Size 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Usage Blasting Media Blasting Media Blasting Media
Ferrous Contamination No Ferrous No Ferrous Ferrous
Dust Pollution Little Large Medium
Recyclable Times Multiple One time or twice Multiple
Power consumption Low Low High
Service Life Long 1/25 of ceramic beads Long
Equipment Wear Rate Low Low High
Blasting Effect High finish
No discoloration
High finish
White discoloration
Low finish
Black discoloration


Seen from the above chart,ceramic beads has long service life,which is about 25 times than the one

of glass beads,it is one clean blasting media with low dust,which is able to replace the glass beads where

clean working condition is concerned.


Ceramic beads has no ferrous contamination,which is able to be applied where ferrous contamination

is not allowed.


3. Specification of Zirconia Beads Ceramic Blasting Media

Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized


3.Main Application of Blasting Ceramic Beads

Ceramic Beads B205 is Widely used in 3C products’surface finishing treatment such as the metal or

plastic surface or its built-in parts of computer,mobile phone,camera etc.;


In addition,ceramic beads are also used in other applications:

B20 & B30 for metal surface shot peening

B40 for cleaning the glass molds

B60 for the pipeline inner and outer wall blast cleaning

B120 for the surface finish of golf club or medical instruments

B170 used for sandblasting the metal surface and built-in parts of iphone,ipad,ipod;


4. Applicable Equipment:


Manual Sandblasting machine;

Automatic Blasting Machine;

Open Blasting Machine;

Sandblasting Room


5. Product Package:

2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
No Ferrous Ceramic Beads Zirconia Blasting Media B205 for 3C metal surface finish 0


























6.Why Choose us?


Professional Manufacturers of Zirconia Ceramic Beads;


Stable quality and good after-sales service;


Main supplier of Foxconn,Samsung etc.
