High Hardness Grinding Media Balls , 4 - 10 Mm Zirconia Grinding Beads
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | 0.6-0.8mm~10mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |

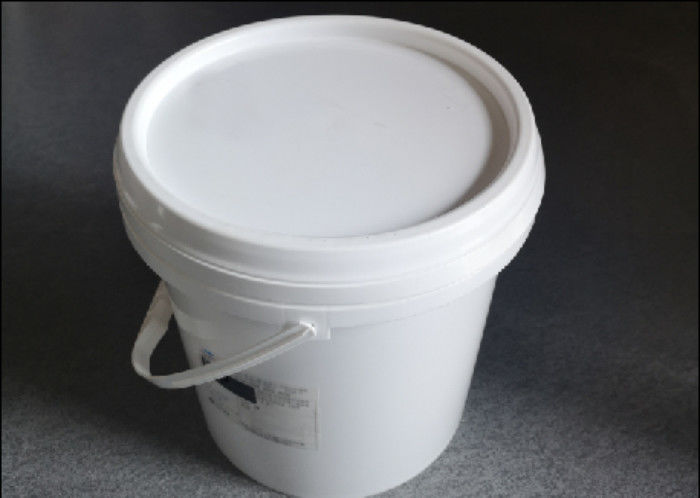

| Packaging Details: | 25kgs barrels+pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity: | 65 Zirconium Silicate Grinding Beads | Color: | White Or Milky White |
|---|---|---|---|
| Chemical Index: | ZrO2 65%min. SiO2 30-25% | Bulk Density: | 2.5g/cm3 |
| True Density: | 4.0g/cm3 | Hardness: | 900 HV |
| Impact Strength: | 1.1KN | Package: | 25kgs Barrels+pallet |
| High Light: | zirconia sintering beads,ceramic grinding media balls |
||
Product Description

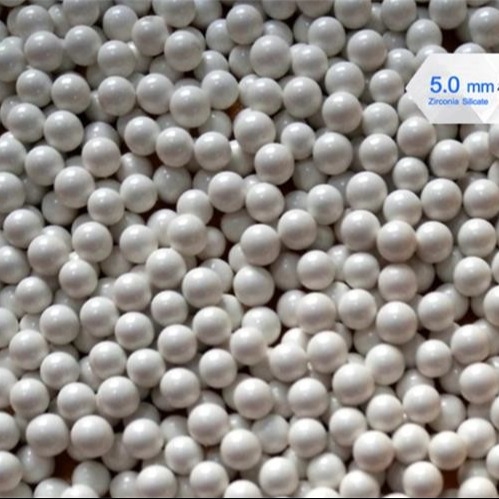

High Hardness Grinding Media Balls , 4 - 10 Mm Zirconia Grinding Beads
Zirconium Silicate Beads, ZrSiO4, is obtained from imported zircon sand, and formed by sintering phasing method, offering superior toughness and high compressive strength and low wear loss.
These Zirconium Silicate Beads are less dense than yttria-stabilized zirconia spheres, suitable for calcium carbonate, Kaolin, Tianium dioxide, paitings, coatings, ink and pesticides, etc..
| Chemical composition | ZrO2>65% |
| SiO2 <35% | |
| True Density | 4.0g/cm3 |
| Bulk density | 2.5g/cm³ |
| Wear rate per ton | 0.03kg/h |
| Moh's hardness | 8 |
| Color | Milky white |
| Package | 25kg/ barrel |
Size (Diameter/mm) :
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.5-0.6 |
| 0.6-0.8 | 0.8-1.0 | 1.0-1.2 | 1.0-1.2 |
| 1.4-1.6 | 1.6-1.8 | 1.8-2.0 | 2.0-2.2 |
| 2.2-2.4 | 2.4-2.8 | 2.8-3.2 | 4,5,6,7,8,9,10 |
- Good sphericity-Low abrasion loss, long life time. Wearability is 8-10 times higher than glass beads;
- High Density-High Grinding efficiency. Grinding efficiency is 3-5 times higher than glass beads;
- High crushing strength, reduce the intermal friction between the beads and improve the material flow efficiency
- Good icid and alkali-resistance and good chemical stability
- Printing Inks
- Pigments / Dyes
- Painting&Coatings
- Calcium carbobate/Kaolin
- Pesticide suspension
- Horizontal sand Mill
- Vertical Sand Mill
- Vertical Attrition Mill
- High Speed Ultra Fine Sand Mill
- Basket Mill
