Product Details:

Place of Origin: Henan, China
Brand Name: ZHENGTONG
Certification: ISO9001, ISO14001
Model Number: F12#-F1600#

Payment & Shipping Terms:

Minimum Order Quantity: 1 MT
Price: Negotiation
Packaging Details: 25kgs bags+Ton bag or pallet, 25mt/20'GP usually
Delivery Time: 8-30 days
Payment Terms: L/C, T/T
Supply Ability: 10000mt per year
Get Best Price Contact Now

Detail Information

Material: Aluminium Oxide Al2O3 Product Name: White Fused Alumina
Crystal Form: Trigonal Crystal Sytem Color: White
Hardness: Vickers Harness: 2200 HV Mohs: 9 True Specific: 3.95g/cm3
Package: 25kgs Bags +Ton Bag Or Pallet Chemical Index: Al2O3 99%min. SiO2 0.05%max. Fe2O3 0.1%max. NaO2 0.35%Max L.O.i 0.2% Max.
Usage: For Bonded Abrasives And Sandblasting Sample: 1 Kg For Free
High Light:

white fused alumina

,

fine grit aluminum oxide

Product Description

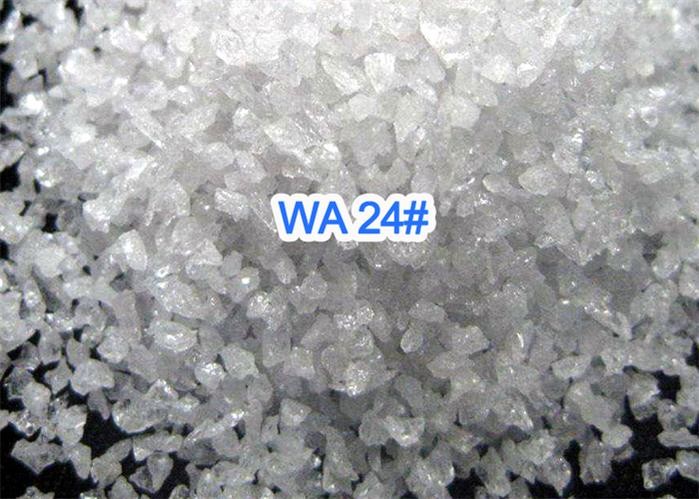

WHITE ALUMINA OXIDE GRITS FOR BONDED ABRASIVES, SANDBLAST

Bonded Abrasives White Fused Alumina , Sandblast Aluminum Oxide Abrasive Media 0

White aluminum oxide is a high purity abrasive electrically fused from Bayer processed alumina. This material is classified to exacting standards for various applications where higher purity levels and reduced iron content are required.



The crude grits 12#, 24#, 30#, 36#, 46#, 54#, 60# are widely used to produce Vitrified bonded abrasives grinding wheels and Resin bonded abrasives cutting discs, etc.. and also using for sandblasting.



Sizing standard China GB/T, FEPA, JIS and ANSI are all available against clustomers' request.


Bonded Abrasives White Fused Alumina , Sandblast Aluminum Oxide Abrasive Media 1




CHEMCIAL ANALYSIS
AL 2 O 3 SiO2 Fe 2 O 3 Na 2 O L.O.I
99.3% Min. 0.1% Max. 0.1% Max. 0.35% Max. 0.2% Max.



PHYSICAL PROPERTIES
Color Crystal Form True Specific Gravity Vickers Hardness Mohs Harness
White Trigonal Crystal 3.95g/cm3 2200kg /mm2 9



SIZES AVAILABLE
#12 MESH #16 MESH #20 MESH #24 MESH #30 MESH
#36 MESH #46 MESH #54 MESH #60 MESH #70 MESH
#80 MESH #90 MESH #100 MESH #120 MESH #150 MESH
#180 MESH #200 MESH #220 MESH #240 MESH #280 MESH
#320 #360 #400 #500 #600
#800 #1000 #1200 #1600





Macrogrits F4~F220 Specifications (FEPA 42-1:2006)



Specification 100% min 20% max 40% min 70% min 3% max thru
Grit Sieve Sieve Sieve Sieve Sieve
4 5/16 3 1/2 4 4+5 6
5 0.265 4 5 5+6 7
6 3 1/2 5 6 6+7 8
7 4 6 7 7+8 10
Specification 100% min 20% max 45% min 70% min 3% max thru
8 5 7 8 8+10 12
10 6 8 10 10+12 14
12 7 10 12 12+14 16
14 8 12 14 14+16 18
16 10 14 16 16+18 20
20 12 16 18 18+20 25
22 14 18 20 20+25 30
Specification 100% min 20% max 45% min 65% min 3% max thru
24 16 20 25 25+30 35
30 18 25 30 30+35 40
36 20 30 35 35+40 45
Specification 100% min 30% max 40% min 65% min 3% max thru
40 25 35 40 40+45 50
46 30 40 45 45+50 60
54 35 45 50 50+60 70
60 40 50 60 60+70 80
Specification 100% min 25% max 40% min 65% min 3% max thru
70 45 60 70 70+80 100
80 50 70 80 80+100 120
Specification 100% min 20% max 40% min 65% min 3% max thru
90 60 80 100 100+120 140
100 70 100 120 120+140 200
120 80 120 140 140+170 230
Specification 100% min 15% max 40% min 65% min 3% max thru
150 100 140 200 200+230 325
180 120 170 200 200+230+270 -
Specification 100% min 15% max 40% min 60% min
220 140 200 230 230+270+325 -




Bonded Abrasives White Fused Alumina , Sandblast Aluminum Oxide Abrasive Media 2

Bonded Abrasives and Sandblasting



Difference between Brown aluminum oxide and White aluminum oxide in Bonded abrasives grinding wheels

as below:



Abrasive Hardness Toughness

Materials suitable for grinding

Features
Brown Aluminum Oxide High High grinding metals with high tensile strength, such as carbon steel, alloy steel, malleable cast iron, hard bronze, etc.

It has good grinding performance. Often used for rough grinding with large margin and widely used.



White Aluminum Oxide Higher Little Lower precision hardened steel, high carbon steel, high speed steel and ground thin-walled parts. When grinding, the abrasive particles are easily broken, so the grinding heat is small.



Difference between Brown aluminum oxide and White aluminum oxide in sandblasting

as below:





Abrasive

Using Difference in sandblasting

Brown Aluminum Oxide



When fast cutting is needed, with a reclaimable media, brown aluminum oxide is often the best value.


White Aluminum Oxide

White aluminum oxide boasts of a extremely high purity that makes it suitable for applications requiring minimum contamination of foreign substances and sharp free cutting abrasive characteristics.
