P Sand P16# - 240# White Aluminum Oxide Blast Media For Coated Abrasives / Sand Belt
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGTONG |
| Certification: | ISO9001, ISO14001 |
| Model Number: | P16#-P240# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs bags+Ton bag or pallet, 25mt/20'GP usually |
| Delivery Time: | 8-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000mt per year |
|
Detail Information |
|||
| Material: | Aluminium Oxide Al2O3 | Product Name: | White Fused Alumina |
|---|---|---|---|
| Crystal Form: | Trigonal Crystal Sytem | Color: | White |
| Hardness: | Vickers Harness: 2200 HV Mohs: 9 | True Specific: | 3.95g/cm3 |
| Package: | 25kgs Bags +Ton Bag Or Pallet | Chemical Index: | Al2O3 99%min. SiO2 0.05%max. Fe2O3 0.1%max. NaO2 0.35%Max L.O.i 0.2% Max. |
| Usage: | For Coated Abrasives Sand Paper Sand Belt | Sample: | 1 Kg For Free |
| High Light: | white fused alumina,white fused aluminum oxide |
||
Product Description

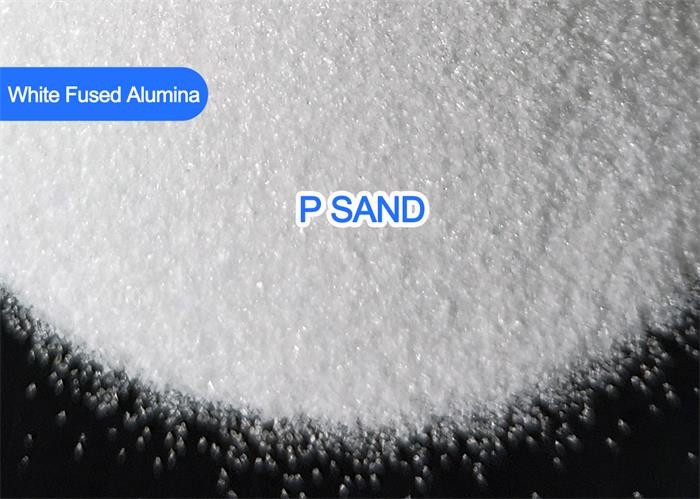

WHITE ALUMINA OXIDE P SAND FOR COATED ABRASIVES
White Fused Alumina(WA), also called White Fused Aluminium Oxide, named by its white color, belongs to the electro fused artificial corundum group and is an important mineral used widely for refractory bricks,refractory castables, pre-cast refractory shapes,other unshaped refractory products,ceramic shapes,metal&ceramic surface preparation, grinding wheels,
sandpapers,sanding belts,sandblasting media,lapping and polishing.
It's obtained from reduced fusion of high purity calcined alumina in electric arc furnaces. Calcined alumina is the most important material in aluminium making industry. After the fusion process, the materials become liquid, then cooled down and crushed into different sizes for different applications. Magnetic contents are removed and materials are reshaped by relevant equipments, and then sieved into standard sizes(FEPA,JIS,ANSI) of standard particle distribution.
| CHEMCIAL ANALYSIS | ||||
| AL 2 O 3 | SiO2 | Fe 2 O 3 | Na 2 O | L.O.I |
| 99.3% Min. | 0.1% Max. | 0.1% Max. | 0.35% Max. | 0.2% Max. |
| PHYSICAL PROPERTIES | ||||
| Color | Crystal Form | True Specific Gravity | Vickers Hardness | Mohs Harness |
| White | Trigonal Crystal | 3.95g/cm3 | 2200kg /mm2 | 9 |
| White Aluminum Oxide P Sand | |||||
| Size | % ≤ | Sieve 2+3 Subtotal % | Sieve 2+3+4 Subtotal % | Sieve 2+3+4+5 Subtotal % | Underflow Sieve 5 (% ≤) |
| P16 | 3 | 20-32 | 66-84 | 96 | 4 |
| P20 | 7 | 34-50 | 80-92 | 98 | 2 |
| P24 | 1 | 10-18 | 52-70 | 92 | 8 |
| P30 | 1 | 10-18 | 52-70 | 92 | 8 |
| P36 | 1 | 10-18 | 52-70 | 92 | 8 |
| P40 | 7 | 34-50 | 80-92 | 98 | 2 |
| P50 | 3 | 20-32 | 66-84 | 96 | 4 |
| P60 | 1 | 10-18 | 52-70 | 92 | 8 |
| P70 | 7 | 34-50 | 80-92 | 93 | 7 |
| P80 | 3 | 20-32 | 66-84 | 96 | 4 |
| P100 | 1 | 10-18 | 52-70 | 92 | 8 |
| P120 | 7 | 34-50 | 80-92 | 98 | 2 |
| P150 | 3 | 20-32 | 66-84 | 96 | 4 |
| P180 | 2 | 10-20 | 50-74 | 90 | 10 |
| P220 | 2 | 10-20 | 50-74 | 90 | 10 |
| P240 | 2 | 10-20 | 50-74 | 90 | 10 |
Coated Abrasives
Mainly used in the production of sandpaper, abrasive belts, flap discs and other coated abrasives.
Coated abrasives refer to abrasives that adhere abrasives (white aluminum oxide, brown aluminum oxide etc.) to flexible substrates, also known as flexible abrasives. White aluminum oxide P sand is mainly used in coated abrasives. It is a kind of artificial abrasive, which has the characteristics of high hardness and high grinding force.
