Refractory Grade 5mm Brown Fused Alumina For Castables
Contact Person : Caroline Cui
Phone Number : 86-15003865330
WhatsApp : +8615003865330
Minimum Order Quantity : | 1 MT | Price : | Negotiation |
---|---|---|---|
Packaging Details : | 25kgs bags+Ton bag or pallet, 25mt/20'GP usually | Delivery Time : | 8-30 days |
Payment Terms : | L/C, T/T | Supply Ability : | 10000mt per year |
Place of Origin: | Henan, China | Brand Name: | ZHENGTONG |
---|---|---|---|
Certification: | ISO9001, ISO14001 | Model Number: | F12#-F220# |
Detail Information |
|||
Material: | Aluminium Oxide Al2O3 | Product Name: | Brown Aluminum Oxide Abrasive |
---|---|---|---|
Crystal Form: | Trigonal Crystal Sytem | Color: | Brown |
Hardness: | Vickers Harness: 2100 HV Mohs: 9 | Bulk Density: | F12#-F220# 1.98-1.68g/cm3 |
True Specific: | 3.97g/cm3 | Package: | 25kgs Bags +Ton Bag Or Pallet |
Chemical Index: | Al2O3 95%min. SiO2 1%max. Fe2O3 0.3%max. TiO2 2.0-2.8% Cao 0.45% Max. | Usage: | For Bonded Abrasives Like Cutting Discm Grinding Wheels, Etc. |
Port Of Loading: | Tianjin, China | Sample: | 1 Kg For Free |
High Light: | brown fused alumina,grit aluminum oxide |
Product Description

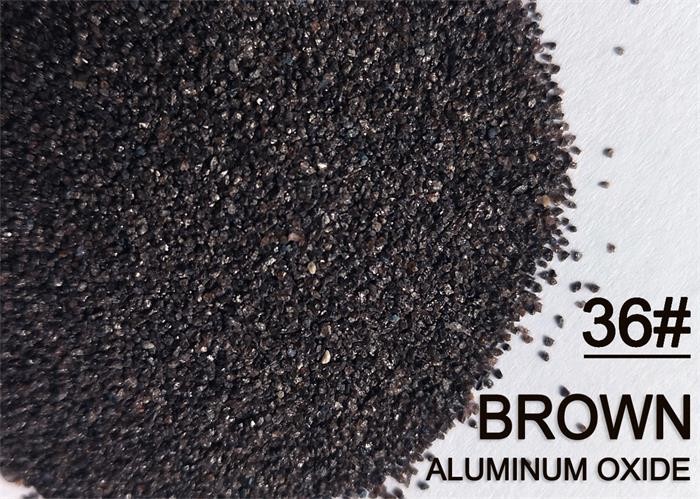

BROWN ALUMINUM OXIDE GRITS FOR BONDED ABRASIVES
Brown Fused Alumina, also called Brown aluminum oxide, is the main raw materials to produce vitrified bonded abrasives and resin bonded abrasives like cutting discs, cutting wheels, grinding wheels, etc..
Grit sizes from 12#-220#. Popular sizes 24#,30#,36#,46#,60#, 80# etc.
All grains can meet GB/T2481.2—2009 and/or FEPA 42-1:2006.
By Al2O3:
By application:
By smelting type:
By crushing type:
By Additional treatment:
Commodity: Brown Fused Alumina
Production Type: Tilting Furnace, Barmac Crushing, Air Blow Cleaning
Chemical Index | ||||
Al2O3 | SiO2 | Fe2O3 | TiO2 | CaO |
95%min. | 1.0% max. | 0.3% max. | 2.0%-3.0% | 0.45% Max. |
Physical Index | ||||
Color | Crystal Form | True Specific Gravity | Vickers Hardness | Melting point |
Brown | Trigonal Crystal | 3.97g/cm3 | 2100kg /mm2 | 2000 °C |
Sizes-Grit & Bulk Density (g/cm3) | ||||
F12# 1.93-1.99 | F14# 1.92-1.98 | F16# 1.91-1.97 | F20# 1.90-1.96 | F22# 1.89-1.95 |
F24# 1.88-1.94 | F30# 1.87-1.93 | F36# 1.85-1.91 | F40# 1.84-1.90 | F46# 1.83-1.89 |
F54# 1.82-1.88 | F60# 1.81-1.86 | F70# 1.80-1.84 | F80# 1.79-1.82 | F90# 1.77-1.80 |
F100# 1.75-1.78 | F120# 1.73-1.76 | F150# 1.70-1.74 | F180# 1.69-1.73 | F220# 1.68-1.72 |
Sizes-Section sand | ||||
0-1mm | 1-3mm | 3-5mm | 5-8mm | 0-25mm |
200mesh | 325mesh | Special sizes can be customized as per clients’ requirements |
Supply Capacity
Brown Aluminum oxide grits especially F 20#, 24#, 30#, 36#, 46#, 60#, 70#, 80#

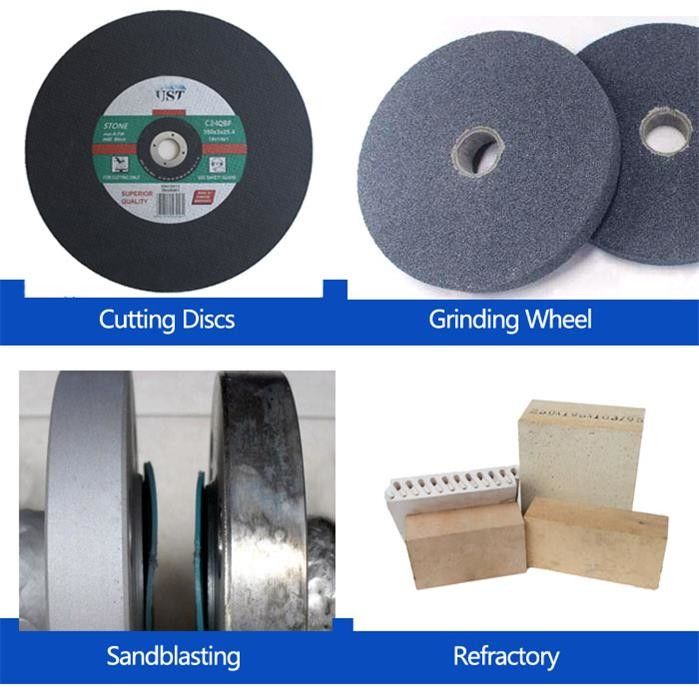

Is applicable for Bonded abrasives and sandblasting
Vitrified Bonded abrasives and resin bonded abrasives. Like grinding wheels, cutting discs, etc.
Sandblast on aluminum parts, copper parts, glass, Washed jeans, precision molds such as shoe molds blasting, decontamination, descaling, cleaning, pretreatment, matte finish, etching art, deburring, stress relief, etc.
Why Choose us?
1) 20 years abrasive industry experiences
2) Direct Factory supply & Fixed abrasive sources
3) On-site inspection in factory for each shipment
4) Samples tests each lot in Zhengzhou Research Institute for Abrasives& Grinding Co., Ltd
Our Brown fused alumina grit has been exported to Japan, India, Israel, Russia, Poland etc.
Pls send me email to get Brown fused alumina datasheet /samples and quotation…
