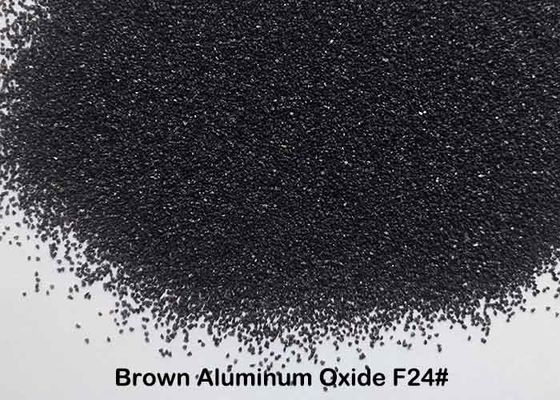

Synthetic Brown Aluminum Oxide Fused F24 / F30 / F36 Model For Resin Cutting Discs
Product Details:
| Place of Origin: | Henan,China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001,ISO14001 |
| Model Number: | F12-F220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Ton Bag, 25kg Bag+Ton Bag, 25kg Bag+Pallet |
| Delivery Time: | Within 7-20 days depending on the order quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000MTS per month |
|
Detail Information |
|||
| Product Name: | Synthetic Aluminium Oxide Brown | Commodity: | Brown Fused Alumina |
|---|---|---|---|
| Mohs Hardness: | 9 | Vicker Hardness: | 2200kg/mm2 |
| Bulk Density: | 1.98-1.68g/cm3 | Grit Size: | F12-F220 |
| High Light: | brown fused aluminum oxide,brown fused alumina |
||
Product Description
Synthetic Aluminum Oxide Brown Fused Alumina F24 F30 F36 for Resin Cutting Discs
1. Product Description of Synthetic Aluminum Oxide Brown Fused Alumina
Synthetic Aluminum Oxide is also called as brown aluminum oxide,it is made by high-quality bauxite, coke,
iron scrap as main material, then fused and purified in an electric arc furnace at a temperature more than
2200° C,then made into different sizes through the special process of cooling, crushing, magnetic separation
and screening etc.
It has the characteristics of high hardness,high toughness,good-self sharpness,strong cutting force etc.
2. The types of Synthetic Aluminum Oxide Brown Fused Alumina
There is top grade (Min 95% Al2O3) brown aluminum oxide and offgrade(Min 90%Al2O3) brown aluminum oxide,
second grade (Min 80% Al2O3)brown alumina according to the different alumina content.
Fixed furnace brown fused alumina and Tilting furnace brown fused alumina accoriding to
different type of electric furnace.
Barmac,Ball Milling,Roller Brown Fused Alumina according to different crushing methods.
3. Main Technical Index of Synthetic Aluminum Oxide Brown Fused Alumina
| Commodity | Usage | Grit | Main Chemical Index | ||||
| Al2O3 | TiO2 | SiO2 | Fe2O3 | Magnetic | |||
|
Brown Aluminium Oxide
|
Bonded Abrasives | F4～F80 | ≥95% |
≤3.5%
|
≤1.0% | ≤0.30% | ≤0.05 |
| F90～F150 | ≥94% | ≤3.5% | ≤1.0% | ≤0.30% | ≤0.03 | ||
| F180～F220 | ≥93% | ≤3.5% | ≤1.0% | ≤0.30% | ≤0.03 | ||
| Main Physical Index | |
| Color | Brown |
| Crystal Form | Trigonal Crystal System |
| True Specific Gravity | ≥3.97g/cm3 |
| Bulk Density | 1.68-1.98g/cm3 |
| Vicker Hardness | 2100kg /mm2 |
| Mohs Hardness | 9 Mohs |
| Compressive strength | 34N |
4. Main Application of Synthetic Aluminum Oxide Brown Fused Alumina

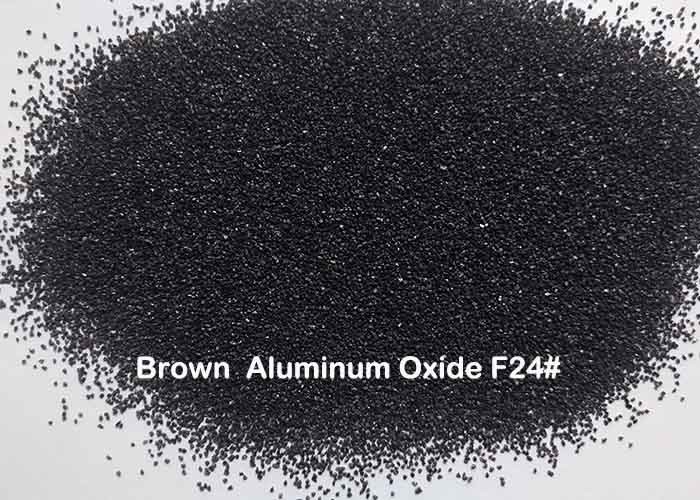

Brown Aluminum Oxide F24#,F30#,F36# is the most popular grit size
It is widely used for making various kinds of resin cutting discs,which is suitable for cutting or grinding the
carbon steel, oridiary alloy steel, calcinable cast iron, hard bronze, etc
Brown Aluminum Oxide is also used for making ceramic grinding wheels for rough grinding, semi-finishing,
fine grinding,grooving,cutting purpose.
In addition, Brown Aluminium Oxide is also widely used for making coated abrasives,refractory materials,
anti-skid materials, blasting media, brake pad etc.
5. Product Package:
