High Wear Resistance Zirconium Silicate Beads For Ink 65 Zirconia Beads

Minimum Order Quantity : 25kg Price : Negotiation
Packaging Details : 25kg drum+Pallet, 25kg Bag+Pallet,Ton Bag Delivery Time : 3-14days depending on the order quantity
Payment Terms : T/T, L/C Supply Ability : 3000MT per Year
Place of Origin: Shanxi,China Brand Name: FUDA
Certification: ISO9001,ISO14001 Model Number: 0.1-10mm

Detail Information

Product Name: Zirconium Silicate Beads,65 Zirconia Usage: Ink Industry
Mohs Hardness: 8 True Gravity: ≥4.0g/cm3
Compressive Strength: ≥1.1KN (Φ2mm) Materials: ZrO2≥ 65%,SiO2 25-30%
High Light:

ceramic grinding media balls

,

zirconium silicate media

Product Description

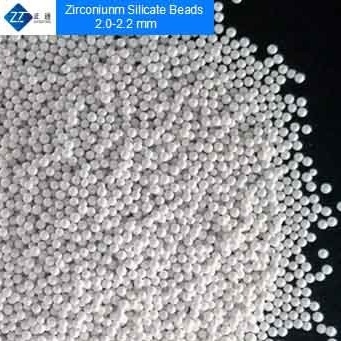

High Wear Resistance Zirconium Silicate Beads 65 Zirconia Ceramic Grinding Media for Ink

1. Product Description of Zirconium Silicate Beads 65 Zirconia

Zirconia Silicate Beads is one kind of Zirconia Beads,its main chemical composition is at least

65% ZrO2,then it is also called as 65 zirconia beads. It is produced by sintered phase process,

zirconia silicate beads are solid from surface to center in a stronger molecular structure,then

ensures higher density and wear resistance. It is widely used for one grinding media in various

industries such as coating,paint,ink,pesticides etc.

2. Main technical index of Zirconium Silicate Beads 65 Zirconia

Item Zirconium Silicate Beads
Chemical Index ZrO2 ≥65%
SiO2 25-30%
Others ≤1.0%
Processing Method Sintering
Vickers Hardness ≥900 HV
True Specific Gravity ≥4.0g/cm3
Bulk Density ≥2.5g/cm3
Particle Size Φ0.1-10mm etc.
Usage Grinding Media



Particle Size
0.1mm,0.2-0.4mm 0.4-0.6mm 0.6-0.8mm,0.8-1.0mm,1.0-1.2mm,
1.2-1.4mm,1.4-1.6mm,1.6-1.8mm,1.8-2.0mm,2.5-3.0mm ,3.0-3.5mm
4mm,5mm,6mm,7mm,8mm,10mm etc.
Special products can be customized



3. Main Features of Zirconium Silicate Beads 65 Zirconia



Medium Density,particularly suitable for large-volume agitated bead mills



Good Sphericity offers better fluidity and higher throughput of treated slurry



Smooth surface and low wear resistence provides few damage to the grinding equipment

and little contamination to the slurry as well as easy to change the slurry color



More concentrated particle size distribution, ensures narrower particle size distribution of

grinding slurry



4. Main Application of Zirconium Silicate Beads 65 Zirconia

Zirconia Silicate Beads is widely used for grinding and dispersing the slurry of ink slurry

such as cold solid ink,Thermosetting ink,ink jet,Gravure ink,Screen printing ink etc.



In addition,it is also used for pigment,dye, coating,painting,prescides,tatinum dioxide,

non-metal minerals etc.

5. Products Package

25kg drum+pallet, 25kg bag +pallet, ton bag,special packages can be customized.

High Wear Resistance Zirconium Silicate Beads For Ink 65 Zirconia Beads 0

6. Why Choose Us?



Professional manufacturer,Providing good products with stable quality & favorable price;



Equipped with the most advanced production line and testing equipments,certificatd by

ISO9001&14001;



Products has been exported to USA,South Korea,Vietnam,Japan etc.
