Blasting Ceramic Beads ZrO2 62% size B40 B60 for Glass Bottle Molds Cleaning
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |

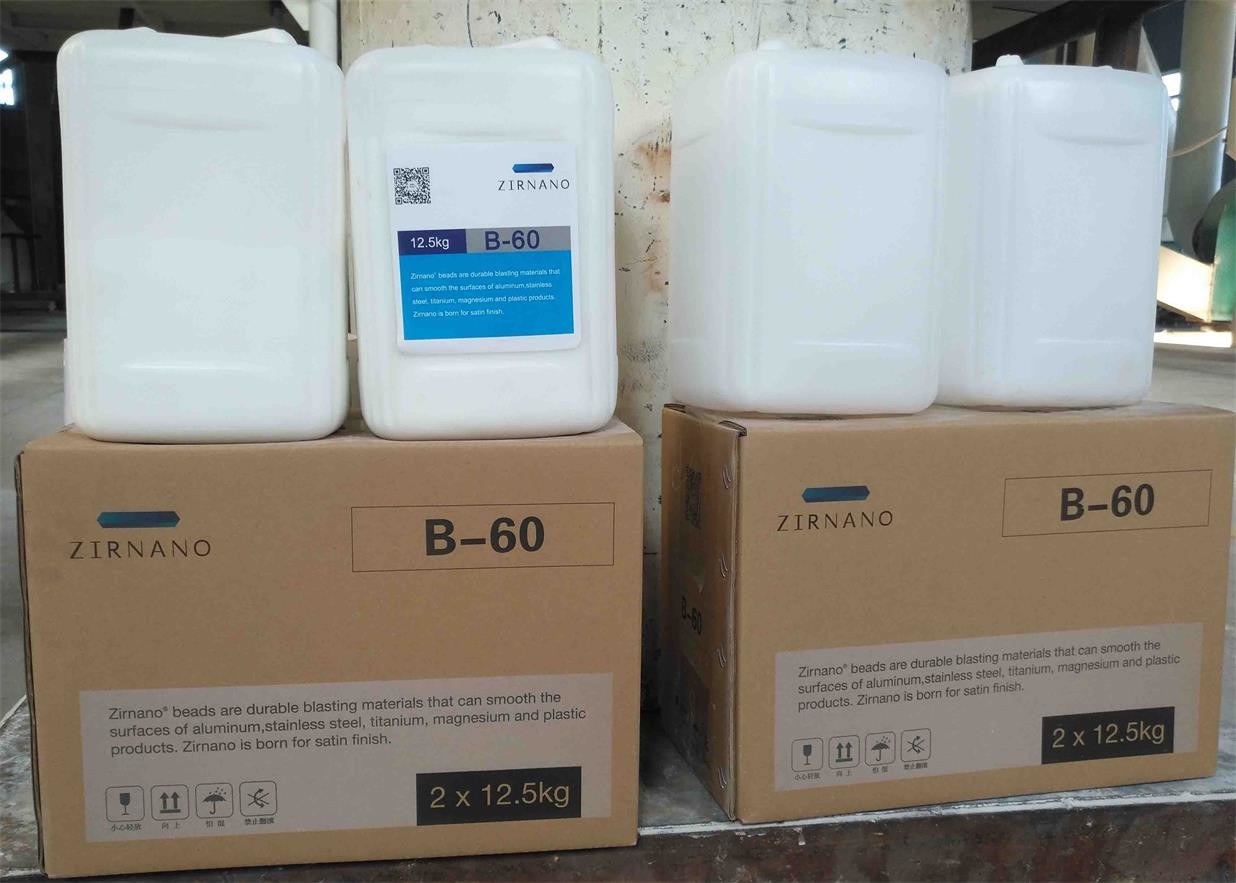

| Packaging Details: | 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Beads | Product Name: | Ceramic Blasting Media |
|---|---|---|---|
| Usage: | Surface Finish For 3C Products | Bulk Density: | 2.3 G/cm3 |
| True Gravity: | 3.85 G/cm3 | Vicker Hardness: | 700 HV |
| Main Material: | 62-66% ZrO2 | Shape: | Solid Round Ball |
| High Light: | abrasive media blasting,low dust blasting media |
||
Product Description

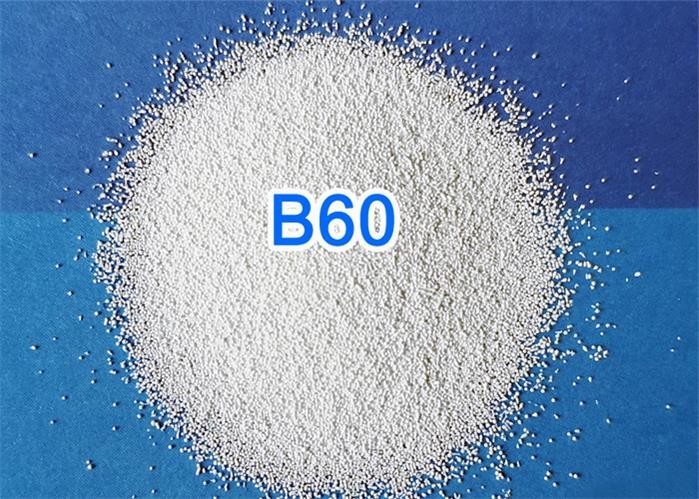

ZrO2 62% Ceramic Beads Solid Round Ball B40 B60 Glass Bottle Molds Blast Cleaning
| Title | ZrO2 62% Ceramic beads B40, B60 glass bottle molds blast cleaning | ||
| Product Name | Ceramic Beads Blasting Media/ Ceramic Media Shot Peening | ||
| Technical Data | |||
| Components | Content | CAS No. | EC No. |
| ZrO2 (Zirconium dioxide) | 60-68% | 1314-23-4 | 215-227-2 |
| SiO2 (Silicon dioxide) | 25-30 | 60676-86-0 | 262-373-8 |
| Al2O3 (Aluminum oxide ) | 7-13% | 1344-28-1 | 215-691-6 |
| Manufacturing Method | Melting in above 2000℃ furnace | ||
| True Density | 3.85 g/cm3 | ||
| Bulk Density | 2.3g/cm3 | ||
| Vicker Hardness | 700HV | ||
| Sizes for Sand Blasting | |||

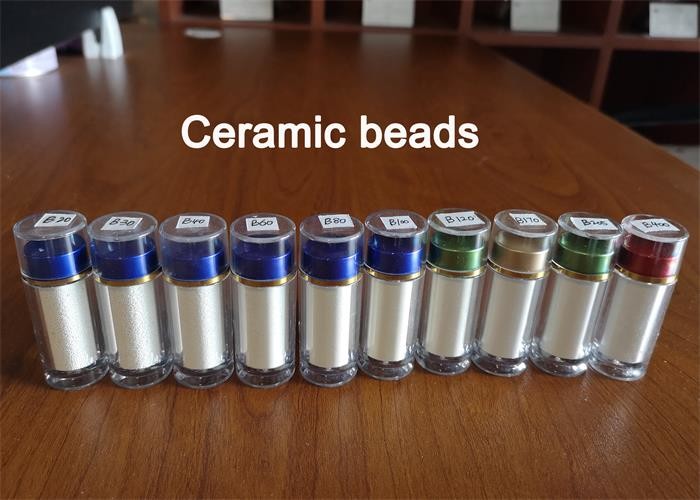

| Bead Size | Size range | Bead Size | Size range |
| B20 | 0.60-0.85 mm | B120 | 0.063-0.125 mm |
| B30 | 0.425-0.60 mm | B125 | 0.000-0.125 mm |
| B40 | 0.24-0.425 mm | B170 | 0.045-0.090 mm |
| B60 | 0.125-0.25 mm | B205 | 0.000-0.063 mm |
| B80 | 0.18-0.25 mm | B400 | 0.030-0.063 mm |
| B100 | 0.125-0.18 mm | B505 | 0.000-0.030 mm |
| Sizes for Shot Peening | |||
| Z850 | 0.85-1.18 mm | Z210 | 0.21-0.30 mm |
| Z600 | 0.6-0.85 mm | Z150 | 0.15-0.21 mm |
| Z425 | 0.425-0.60 mm | Z100 | 0.10-0.15 mm |
| Z300 | 0.30-0.425 mm | ||
| APPLICATION: Glass Bottles Molds - Sandblast cleaning | |||
| Glass bottle molds cleaning is to clean the scales like ash and oxidized plaque after high temperature | |||
| and lubricant release agent burning in the production process. | |||
| The cleaning methods include manual mechanical cleaning, sandblasting, direct chemical cleaning and | |||
| electrochemical cleaning. | |||
| Sandblasting is the most commonly used, and the blast cleaning method is highly efficient. | |||
| It is available in both dry and wet processes. | |||
| The most effective abrasive is ceramic beads becuase of the | |||
| Features below: | |||
| 1). Good elasticity, tiny damage to the glass bottle molds. | |||
| 2). No deformation and low abrasion wear. It can guarantee the consistency of the surface blast effect. | |||
| 3). No easy to beak down, no dust, clean and no hidden danger of silicosis, harmless to the operaters. | |||
| 4). Be recyclable and can be used many times, high cost performance. | |||
If you need any more details about ceramic beads or any questions about application, please send us inquiry and you will get fast response.
