High Performance Hollow Glass Microspheres Size 10-120μM Density Reducing

High Performance Hollow Glass Microspheres Size 10-120μM Density Reducing

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: H20-H60

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: by negotiation
Packaging Details: Paper cartons+Pallet, paper bags+Pallet
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, MoneyGram, PayPal, X Transfer
Supply Ability: 5000mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Hollow Glass Microspheres Color: White
Size: H20-H60 Specific Density: 0.2-0.6 G/cm3
Compressive Strength: 4-125 Mpa/500-18000 Psi Application: Reflective Thermal Insulation Coating, Oilfield Cementing Mud/ Drilling Fluid, Solid Floating Materials, Epoxy Tooling Board, SMC/BMC, 5G Board Modified Plastic. Ect.
High Light:

120μM Hollow Glass Microspheres

,

10μM Hollow Glass Microspheres

,

120μM glass hollow microspheres

Product Description

High performance Hollow glass microspheres size 10-120μm density reducing ​



Description of hollow glass microspheres:

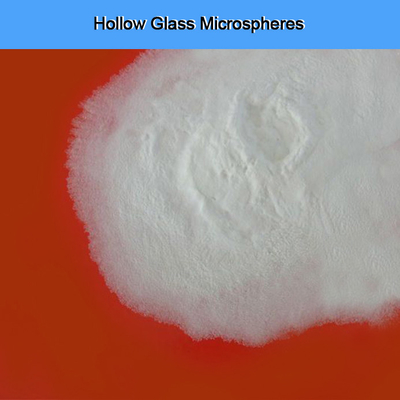

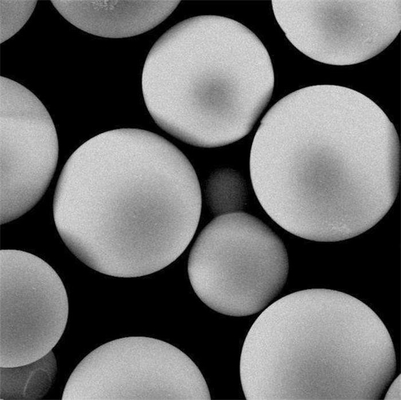

High-performance hollow glass beads (hereinafter referred to as HGS) is a closed, hollow sphere with a wall thickness of 1~3μm, containing dilute nitrogen, carbon dioxide and other gases. Its main chemical composition is soda lime borosilicate glass. HGS, as a lightweight micron-level resin material filler, can effectively reduce the density of products, increase or improve the water resistance, mechanical properties, shrinkage and rheological properties of products.



Specification of hollow glass microspheres:



SPECIFICATION OF HOLLOW GLASS MICROSPHERES
Types True Density
(g/cm3)
Bulk Density
(g/cm3)
Compressive
Strength (Mpa/PSI)
Particle size
D50 (μm) D90 (μm)
H20 0.20-0.22 0.10-0.12 4/500 65 110
H22 0.21-0.24 0.11-0.13 5/750 65 100
H25 0.24-0.27 0.13-0.15 5/750 65 100
H28 0.27-0.30 0.14-0.17 10/1500 55 85
H30 0.29-0.32 0.15-0.18 10/1500 55 85
H32 0.31-0.33 0.17-0.19 14/2000 45 80
H35 0.33-0.37 0.18-0.21 21/3000 40 70
H38 0.37-0.39 0.19-0.22 38/5500 40 65
H40 0.39-0.42 0.19-0.23 28/4000 40 70
H42 0.41-0.44 0.21-0.24 55/8000 40 60
H46 0.44-0.48 0.23-0.26 41/6000 40 70
H50 0.48-0.52 0.25-0.27 55/8000 40 60
H55 0.53-0.57 0.27-0.29 69/10000 40 60
H60 0.58-0.62 0.29-0.34 83/12000 40 65




Properties of hollow glass microspheres:





1. Good economy



Compared with fillers of other shapes, hollow glass beads have a small surface area to volume ratio and low oil absorption, which can reduce the amount of matrix resin and increase the amount of fillers. At the same time, glass beads with a smaller volume can be filled into larger gaps of glass beads, increasing the total filling amount, further reducing the amount of resin, and reducing the cost. Lightweight glass hollow microspheres can occupy more volume than ordinary fillers of the same weight. This means that hollow glass microspheres have more cost advantages when considering unit volume cost rather than unit weight cost.



2. Reduce viscosity and increase fluidity



The appearance of hollow glass microspheres is spherical. Compared with other irregular-shaped fillers, it is easier to flow and can roll like steel balls in a bearing. Therefore, adding hollow glass microspheres to the composite material can reduce the melt viscosity and The internal stress makes the processing and forming easier, which is conducive to the conventional forming of composite materials.



3. Reduce material density



Generally, fillers have a relatively high density and are added to plastics and rubbers as extenders. Although they can achieve the purpose of reducing costs, they tend to increase the density of the products and affect the performance and use of the products. Because hollow glass beads are hollow products, especially floating beads, the density is very small, about 0.40 ~ 0.75 g/cm3. Now some products, such as some hollow glass beads of 3M company, have a lower density, which can reach 0.125~0.16. g/cm3 level. Adding such low-density fillers to plastics can not only reduce costs, but also make products lighter.





Application of hollow glass microspheres





Building materials
Thermal insulation coating (roller coating) H25, H30
Thermal insulation coating (spraying) H40
Pipeline tank insulation paint H32
Repair putty H25
Modified plastic, FRP
Solid floating materials H20, H25,H30
Polyurethane injection H32
SMC/BMC H32, H38, H46
Thermosetting plastic H46
Thermoplastic H46
Oilfield
Oilfield cementing mud H40-H60
Oilfield drilling fluid H40-H60
Other
Adhesives H40
Emulsion explosives H20
Yogi H20
Damping material H40
