Iron Free Ceramic Blasting Media B60 B120 For Stainless Steel Parts Surface Finish

Iron Free Ceramic Blasting Media B60 B120 For Stainless Steel Parts Surface Finish

Product Details:

Place of Origin: Shanxi
Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: By negotation
Packaging Details: 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, , D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 3000 mts per year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Bead Blasting Media Product Name: Ceramic Beads,Zirconia Beads
Usage: Blasting Media,Surface Treatment Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 700HV
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Specification: B20-B505
High Light:

Iron Free Ceramic Blasting Media

,

Ceramic Blasting Media

,

Ceramic Blasting Media Surface Finish

Product Description

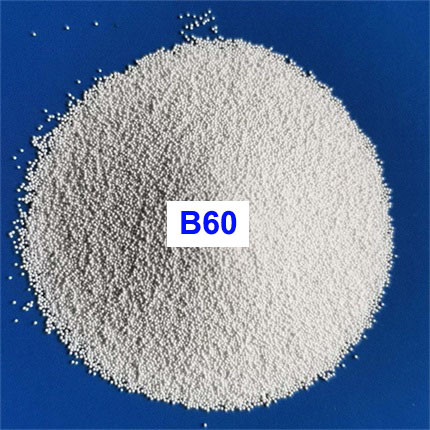

Iron-free Ceramic Beads Blasting Media B60 B120 for Stainless Steel Parts Surface Finish



1. Product Description of Ceramic Beads Blasting Media



Ceramic Beads is one solid round blasting media,it selects the high quality imported zircon sand as

main material, fused in high temperature,then finally made into different size from B20 to B505 by

special technology.



Ceramic beads has wide particle size,which is able to meet almost blasting equipments.

The more popular size is B40(0.425-0.600mm),B60(0.150-0.300mm),B120(0.063-0.125mm),B170

(0.045-0.090mm),B205(0-0.063mm).



2. Main Technical Data of Ceramic Beads Blasting Media



Commodity Name Chemical Index Physical Index

Ceramic Beads
ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting

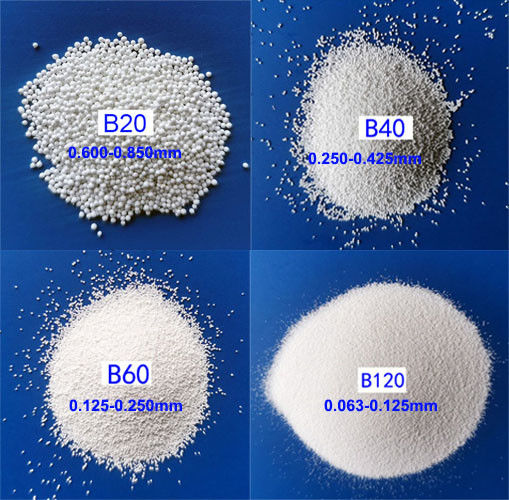

Particle Size for Ceramic Blasting Media
B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150:0-125μm
B40:0.250-0.425mm B170: 0.045-0.090mm
B60:0.150-0.300mm B205: 0-0.063mm
B80:0.125-0.212mm B400: 0.030-0.063mm
B100:0.106-0.180mm B505: 0.010-0.030mm
Particle Size for Ceramic Shot Peening
Z100: 0.100-0.150mm Z150: 0.150-0.210mm
Z210:0. 210-0.300mm Z300: 0.300-0.425mm
Z425:0.425-0.600mm Z600: 0.600-0.850mm
Z850: 0.850-1.180mm ./
Remark: Special specification can be customized.



3. Main Applications of Ceramic Beads Blasting Media



Surface finish for metal parts to achieve one satin blasting effect;



Surface preparation for electroplating or anodizing to achieve a certain surface roughness;



Surface finish for medical instruments to remove the microburrs and make small round conners at the

junctions of two surface to finally achieve the most smoothness texture;



Surface reinforcement for automotive parts to eliminate the surface stress and improve the surface strength.

Iron Free Ceramic Blasting Media B60 B120 For Stainless Steel Parts Surface Finish 0

4. Applicable Equipments of Ceramic Beads



Manual sandblasting machine



Annual Sandblasting Machine



Sandblasting room



5. Why Ceramic Beads is widely used in blasting industries?



Ceramic beads has round smooth surface,high hardness and strength,which can be rebounded in multi-angles

in the blasting process,it will bring little damage to the blasting equipments.



Ceramic beads has dense crystal structure and lower break-down rate,the non-broken beads will maintain its

original shape and property. Then the beads in blasting machine will be almost the same quantity,which will

save the refuel time and finally achieve more consistent blasting effect.



Compared with glass beads,the service life of ceramic beads can be prolonged to be 25-30 times,which will

save the blasting cost.



Little dust generated in blasting process,which will provide one clean and bright working condition,no hidden

danger of silicosis to the worker. Meanwhile,it also greatly save the treatment cost of solid waste.



Therefore,ceramic beads is one clean and high efficient blasting media, which is gradually used to replace

glass beads and widely used in blasting industries.
