Product Details:

Place of Origin: Shanxi
Brand Name: Zirnano
Certification: ISO9001,IS014001,ROHS,SGS
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: By negotation

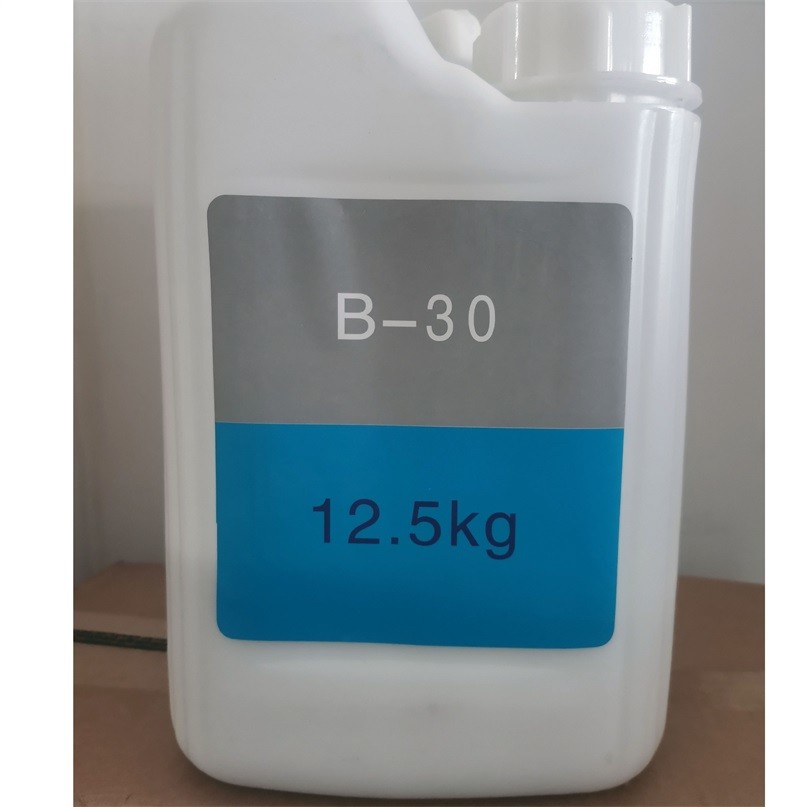

Packaging Details: 25kg barrel+ Pallet or 2*12.5kg barrel+Carton+Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, , D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 3000 mts per year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads,Zirconia Sand
Shape: Spherical Color: White
Material: ZrO2 60-66%,SiO2 25-30%,Al2O3 7-13% Hardness: 60HRC Min
Bulk Density: 2.3g/cm3 True Gravity: 3.85g/cm3
Size: B20-B505 Free Sample: Available
High Light:

700HV Ceramic Bead Abrasive

,

JZB20 Ceramic Bead Abrasive

,

Surface Finish Ceramic Bead Abrasive

Product Description

700HV Ceramic Blasting Media Zirconia Beads JZB20 JZB30 JZB40 JZB60 for Metal Surface Finish

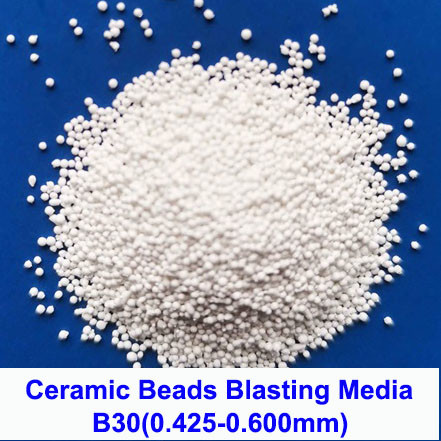

1. Product Description of Ceramic Beads

Ceramic Beads is also called as ceramic micro-beads,it selects the high-quality imported Australian zircon

sand as main raw material, then fused in electronic furnace under high temperature over 2000 degrees,finally

made into different micro-beads by the process of cooling,screening,magnetic separation,inspecting,packing.



It has the features of good sphericity,smooth surface,good elasticity,high hardness,which can be rebounded

at any angle in the whole process of sandblasting,especially suitable for the metal surface finish.

Meanwhile,it can also eliminate the stress and improve the fatigue life of treated work-pieces.



2. Main Technical Data of Ceramic Beads

Commodity Name Ceramic Bead Blasting Media
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Particle Size B20: 0.600-0.850mm
B30:0.425-0.600mm
B40:0.250-0.425mm
B60:0.150-0.300mm
B80:0.125-0.212mm
B100:0.106-0.180mm
B120:0.063-0.125mm
B150:0.000-0.125mm
B170:0.045-0.090mm
B205: 0.000-0.063mm
B400: 0.030-0.063mm
B505: 0.010-0.030mm
Special Size can be customized.



3. Main Applications of Ceramic Beads

Mainly used for metal surface finishing,

Mold cleaning ,rust removal, deburring,

surface shot peening and strengthening of aircraft blades, gears and turbine parts,

Pre-treatment before electroplating and painting,

Surface finishing of sports, fitness equipment and medical equipment.



700HV Ceramic Bead Abrasive Zirconia Beads JZB20 JZB30 JZB40 JZB60 Metal Surface Finish 0



4. Advantages of Ceramic Beads



Long Service Life

The service life of ceramic beads can be prolonged 20-30 times compared with the one of glass beads,

it will reduce the refueling times and finally save the overall product cost.



Low Dust

Ceramic beads has high hardness and medium density and dense crystal structure,only few beads will

be broken-down, so it will generate little dust in whole sandblasting process,then ensuring the worker to

escape from the hidden danger of silicosis



No ferrous contamination

Ceramic beads mainly contains ZrO2,SiO2,Al2O3,there is no ferrous contamination to the treated-workpieces,

it can replace steel shot,where ferrous contamination is prohibited.





5. The Popular Specification of Ceramic Beads

B40,B60,B120,B170,B205 is the more popular specification of ceramic beads,mainly used for surface finish of

metal,rubber,plastic products etc.



6. Why Choose us?



Professional manufacturer:

Equipped with the most advanced production line and professional staffs,annual output over 3000mts;



High Cleanliness:

All the ceramic beads are screened more than six times and blow-cleaning under high temperature,which

provides higher clearliness and ensures it to be work normally in humid weather;



More Competitive Price/performance Ratio:

Our plant locates in mountain area,it has lower production cost and environmental protection cost,so price

is more competitive than the other plants’.



Stable Supplier of Famous enterprises:

We are the stable supplier of Foxconn,Samsung electronics...
