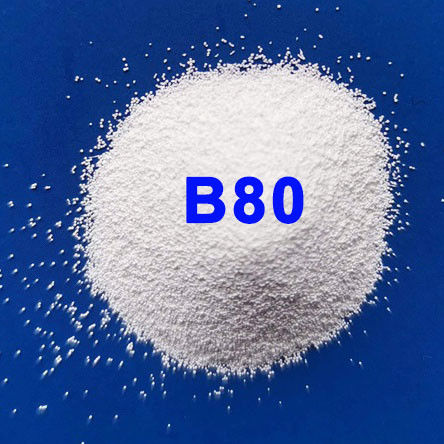

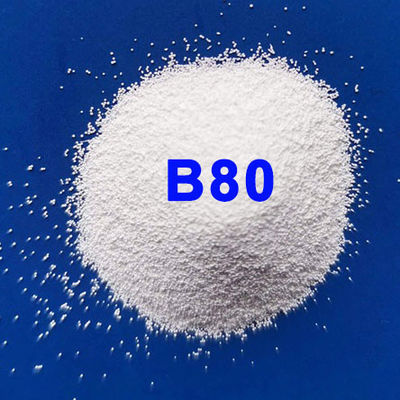

B40 B60 B80 B120 Zirconia Beads For Surface Cleaning
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25KG BARREL+PALLET,2*12.5KG BARREL+CARTON+PALLET |
| Delivery Time: | 3-7 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000mts per year |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Beads,Zirconia Sand |
|---|---|---|---|
| Shape: | Spherical | Main Chemical: | ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30% |
| Hardness: | ≥700HV | Bulk Density: | 2.3g/cm3 |
| Popular Size: | B40,B60,B120,B205 | B80: | 0.125-0.212mm |
| High Light: | B120 Zirconia Beads,B80 Zirconia Beads,B60 Zirconia Beads |
||
Product Description
B40 B60 B80 B120 Ceramic Bead Blasting Media Zirconia Beads for Surface Cleaning
1. Product Description of Ceramic Bead Blasting
Ceramic blasting media is also called as zirconia sand, it selects the high quality zircon sand as main
material by electric fusion method,finally made into different microbeads. Its unique internal crystal
structure ensures its high hardness and good impact resistance.
It has the characteristics of good sphericity and perfect smooth surface,low breakdown-rate,which will
provide one clean and bright sandblasting environment, meanwhile its stable chemical inertness ensures
zero pollution to the treated workpieces.
Compared with glass beads, the severice life of ceramic blasting media will be prolonged 20 times,it can
replace glass beads where one clean and high efficient blasting working condition is required.
2. Main Technical Data of Ceramic Blasting Media
| Commodity | Ceramic Beads or Ceramic Blasting Media | |
| Chemical Index | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% |
|
| Physical Index | Vickers Hardness ≥700 HV Bulk Density≥2.3g/cm3 True Gravity: 3.85g/cm3 Process: Melting |
|
| Particle Size | B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150: 0.053-0.106mm | |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm | |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm | |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm | |
| B100: 0.106-0.180mm | B505: 0.000-0.030mm | |
| Remark: Special specification can be customized | ||
3. Main Applications of Ceramic Blasting Media
Surface finish for 3C products and its accessories such as metal back shell,built-in parts,power bank,
data line....
Surface cleaning for moulds such as moulds of glass-bottle,automobiles, plastic, medical and auto parts...
Surface finish for golf parts such as golf heads and clubs...
Shot Peening for automobile parts such as aluminum alloy wheels, and inner wall of cylinder liners, built-in
parts of gear and gearbox.
Surface finish for electromechanical hardware, such as springs, electric plug workpieces, motor casings
and inner walls, mechanical gears, electric plug
4. Precautions for using ceramic Blasting Media
Store in dry Indoor environment: temperature 35± 15℃, relative humidity 45-85%
Product validity: three years
Use it up within 30 days after sealing off
Suggest to wear a mask to protect the worker
Please kindly open 1/3 to 1/2 vest of dust collector,When using ceramic beads for the first time.
5. Applicable Blasting Equipment
Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting room;
