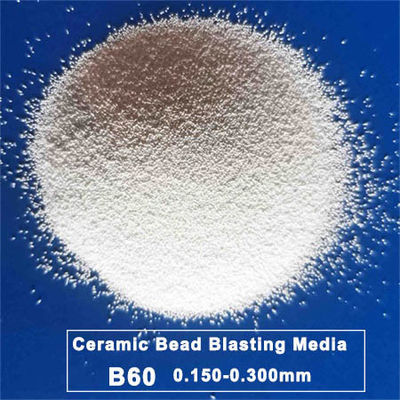

JZB60 Micro Ceramic Bead Blasting For Shiny Satin Surface Finshing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25KG BARREL+PALLET,2*12.5KG BARREL+CARTON+PALLET |
| Delivery Time: | 3-7 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000mts per year |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Beads, Ceramic Mirco-beads |
|---|---|---|---|
| Color: | White | Shape: | Spherical |
| Main Chemical: | ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30% | Hardness: | ≥700HV |
| Bulk Density: | 2.3g/cm3 | True Gravity: | 3.85g/cm3 |
| High Light: | Micro Ceramic Bead Blasting,JZB60 Ceramic Bead Blasting,Satin Surface Ceramic Bead Blasting |
||
Product Description
Mirco-beads Ceramic Bead Blasting Media JZB60 JZB120 JZB170 JZB205 for Shiny Satin Surface Finshing
1. Product Description
Ceramic blasting media is one clean blasting media,it selects the high quality zircon sand as main material,
then fused in arc furnace,finally screened into different beads. It is most suitable for surface finishing
applications,which will achieve the smoothest finish and a unique satin effect on stainless steel,light metal,
plastic parts.
Although ceramic beads and glass beads are both round solid blasting media,their service life is quite different.
The service life of ceramic beads has been prolonged for 25-30 times as the one of glass beads,it can replace
glass beads where one clean and bright working condition is required.
Ceramic beads B40,B60,B120,B205 is more popular size in blasting applications.
2. Main Technical Data
| Ceramic Blasting Media | ||
| ZrO2 | SiO2 | Al2O3 |
| 60-66% | 25-30% | 7-13% |
| Vicker Hardness | True Specific Gravity | Bulk Density |
| ≥700 HV | ≥3.85 g/cm3 | 2.3g/cm3 |
| Particle Size | ||
| B20: 0.600-0.850mm | B30:0.425-0.600mm | B40:0.250-0.425mm |
| B60:0.150-0.300mm | B80:0.125-0.212mm | B100:0.106-0.180mm |
| B120:0.063-0.125mm | B150:0.000-0.125mm | B170:0.045-0.090mm |
| B205:0.000-0.063mm | B400:0.030-0.063mm | B505:0.010-0.030mm |
| Special specification can be customized | ||
3. Main Features of Ceramic Blasting Media
Good sphericity,smooth surface;
High hardness,high strength;
Low breakdown rate,long service life;
No Ferrous contamination to the treated parts;
Low solid-waste treatment cost.
4. Main Applications
Surface Finish for light alloys such as aluminium alloy,magnesium alloy,titanium alloy etc.
Metal surface finish for stainless steel parts such as outdoor stainless steel fitness equipments...
Surface finish for plastic parts,rubber parts...
Mold cleaning for glass-bottle,tires,die casting...
Deburring for electronic parts,circult board,heat-treated parts...
Surface Preparation before anodizing,electroplating...
Surface finish for 3C products,its built-in parts,as well as its accessories such as power bank,USB interface...
Shot peening for automobile and aerospace industry...
5. How to choose the good quality ceramic blasting media?
Firstly, seen from the beads shape, good ceramic beads has higher sphericity no less than 85%, which has
rounder shape;
Secondly,judge from the cleanliness,ceramic beads in higher cleanliness will be sunk into the bottom of container
quickly. While the water in container is still cleaner,not muddy.
Thirdly, quality also can be judged easily from the appearance of beads, Good beads has whiter color and more
uniform particle size distribution.
6. The Package of Ceramic Beads
25kg round barrel+Pallet
2*12.5kg square barrel+Pallet
25kg round barrel+ Wooden Case.
Special package can be customized.
