B60 Zirconia Ceramic Bead Blasting For Mold Cleaning
Product Details:
Place of Origin: | China |
Brand Name: | Zirnano |
Certification: | ISO9001,ISO14001,SGS,ROHS |
Model Number: | B20-B505 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100KGS |
---|---|
Price: | Negotiable |
Packaging Details: | 25kg barrel+pallet or 2*12.5kg barrel+carton+pallet |
Delivery Time: | 3-5 days after order confirmed |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 250mts monthly |
Detail Information |
|||
Commodity: | Ceramic Blasting Media | Product Name: | Ceramic Beads Blasting |
---|---|---|---|
Color: | White | Bulk Density: | 2.3g/cm3 |
Hardness: | 700HV | Sphericity: | ≥85% |

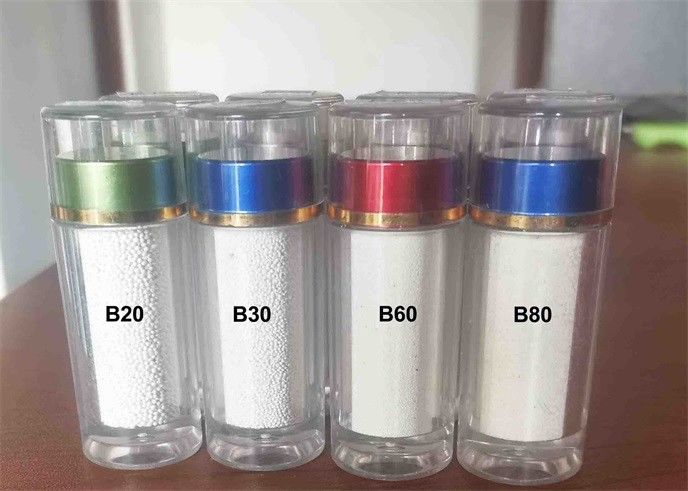

Shape: | Round Solid Beads | Specification: | B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400,B505 |
High Light: | Zirconia Ceramic Bead Blasting,B60 Ceramic Bead Blasting,Mold Cleaning Ceramic Blasting Media |
Product Description
ZrO2 60-66% 700HV Hardness Ceramic Bead Blasting Media Zirconia Sand B40 B60 for Mold Cleaning
1. Product Description of Ceramic Beads
Ceramic beads is one clean blasting media,it is also called as ceramic blasting media.
If you are looking for one blasting media to replace glass beads,also achieve to smooth,bright blasting effect with lower
toughness,then ceramic beads is the best choice for you.
Compared with glass beads,ceramic beads has lower breakdown rate,it will provide one bright and clean blasting environment,ensure the workers to escape from the hidden dangers of silicosis,it is good for the worker’s health.
Ceramic beads also has lower cost for solid-waste treatment also due to its lower breakdown rate,then little dust
generated in the whole blasting process.
So ceramic beads is one clean and economic blasting media.
2. Main Technical Data of Ceramic Beads

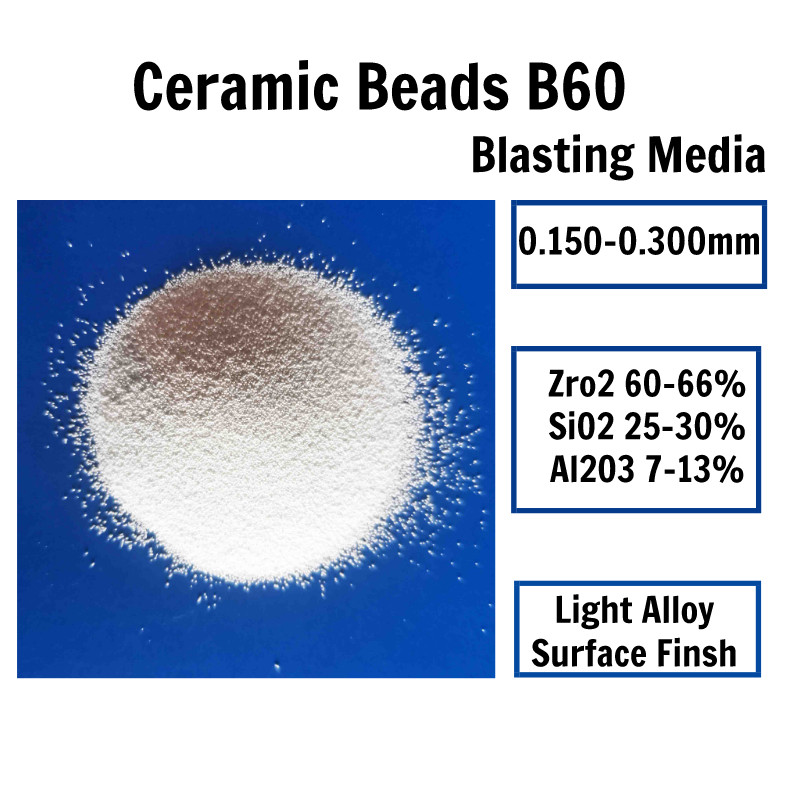

Chemical Index | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% |
|
Physical Index | Vickers Hardness ≥700 HV Bulk Density≥2.3g/cm3 True Gravity: 3.85g/cm3 Process: Melting |
|
Particle Size | B20: 0.600-0.850mm | B120: 0.063-0.125mm |
B30: 0.425-0.600mm | B150: 0.053-0.106mm | |
B40: 0.250-0.425mm | B170: 0.045-0.090mm | |
B60: 0.150-0.300mm | B205: 0.000-0.063mm | |
B80: 0.125-0.212mm | B400: 0.030-0.063mm | |
B100: 0.106-0.180mm | B505: 0.000-0.030mm | |
Remark: Special specification can be customized |
3. Main Applications of Ceramic Bead Blasting Media
Surface finish for stainless steel products such as outdoor fitness equipments,shelfs,kitchen ware...
Surface balsting for the inner & outter wall of metal pipes
Surface finish for light alloy parts such as aluminum alloy,magnesium alloy,titanium alloy etc.
Surface preparation before elecropalting,anodizing to increase the surface toughness...
4. Abrasion rate comparation between ceramic beads and glass beads
Here is one actual example from our client who use 7mts glass beads one month to blast the die-cast aluminum parts,then
for the same condition,it only used 0.1mts ceramic beads monthly.Then the abrasion rate between ceramic beads and glass
beads is up to 70:1.
It not only reduce the blasting cost but also reduce the treatment cost of solid-waste greatly.
So ceramic beads is more economic blasting media in long term budget if people know that above abrasion rate comparation.
5. Where ceramic beads can replace galss beads?
Generally speaking,ceramic beads can replace glass beads in metal surface blasting completely.
It can also replace ceramic beads where one clean and bright working condition or one lower toughness and brighter blasting
effect are required.
6. Why choose us?
Direct manufacturer of ceramic beads,annual output is over 3000mts;
Equipped with most advanced production line and qualified sales and services teams;
All products can be traced from the very begining of raw materials to the final products.
Stricter quality control system,all the cargo will be sampled beforedelivery even for one small sample.
Prompt delivery and flexible payment term.
Stable suppliers of Foxconn,Samsung Electronics....
