3C Products B20 Sandblasting Ceramic Cleaning Media
Product Details:
| Place of Origin: | China |
| Brand Name: | ZHENGTONG |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Beads | Product Name: | Ceramic Blasting Media |
|---|---|---|---|
| Usage: | Surface Finish For 3C Products | Bulk Density: | 2.3 G/cm3 |
| True Gravity: | 3.85 G/cm3 | Vicker Hardness: | 700 HV |
| Main Material: | 60-66% ZrO2 | Shape: | Solid Round Ball |
| High Light: | Sandblasting Ceramic Cleaning Media,B20 Ceramic Cleaning Media,3C Products Ceramic Bead Blasting |
||
Product Description

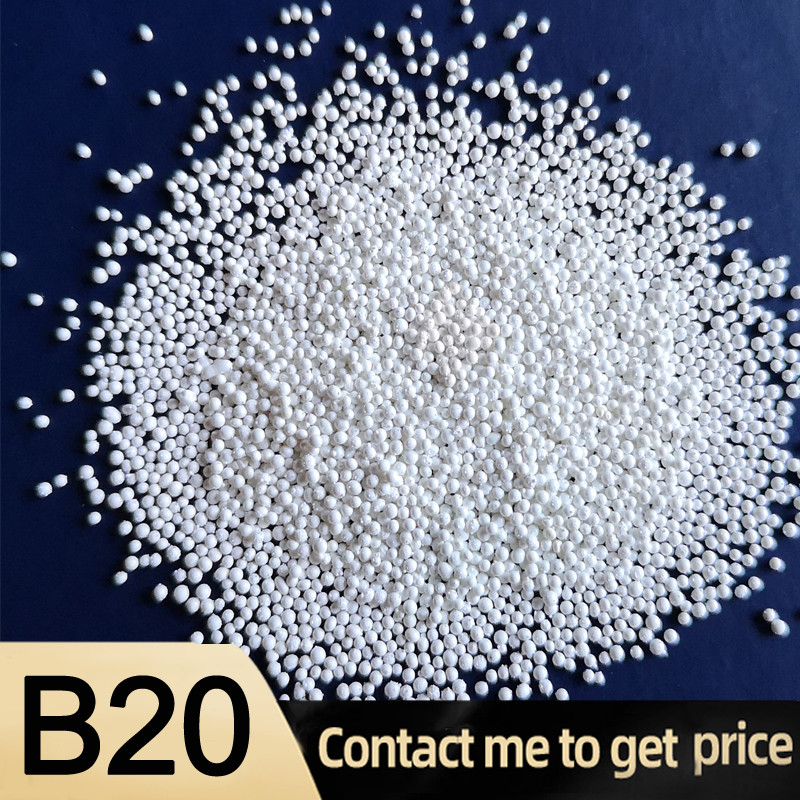

3C Products B20 Sandblasting Ceramic Cleaning Media
DESCRIPTION OF CERAMIC BEADS BLASTING MEDIA
The ceramic beads is zirconium based ceramic blasting media, made through electro fusion., then made to multiple sizes micro beads from B20 to B505.
The ceramic beads is used for surface treatments like sandblast cleaning, deburring, pretreatment before coating and precise surface treatment .
It has concentrated grain sizes to obtain uniformity.
| Technical Data | |||
| Components | Content | CAS No. | EC No. |
| ZrO2 (Zirconium dioxide) | 60-68% | 1314-23-4 | 215-227-2 |
| SiO2 (Silicon dioxide) | 25-30 | 60676-86-0 | 262-373-8 |
| Al2O3 (Aluminum oxide ) | 7-13% | 1344-28-1 | 215-691-6 |
| Manufacturing Method | Melting in above 2000℃ furnace | ||
| True Density | 3.85 g/cm3 | ||
| Bulk Density | 2.3g/cm3 | ||
| Vicker Hardness | 700HV | ||
| Sizes for Sand Blasting | |||
| Bead Size | Size range | Bead Size | Size range |
| B20 | 0.60-0.85 mm | B120 | 0.063-0.125 mm |
| B30 | 0.425-0.60 mm | B125 | 0.000-0.125 mm |
| B40 | 0.24-0.425 mm | B170 | 0.045-0.090 mm |
| B60 | 0.125-0.25 mm | B205 | 0.000-0.063 mm |
| B80 | 0.18-0.25 mm | B400 | 0.030-0.063 mm |
| B100 | 0.125-0.18 mm | B505 | 0.000-0.030 mm |
| Sizes for Shot Peening | |||
| Z850 | 0.85-1.18 mm | Z210 | 0.21-0.30 mm |
| Z600 | 0.6-0.85 mm | Z150 | 0.15-0.21 mm |
| Z425 | 0.425-0.60 mm | Z100 | 0.10-0.15 mm |
| Z300 | 0.30-0.425 mm | ||
FEATURES OF CERAMIC BEADS BLASTING MEDIA
1. High impact resistance and round beads, not easy to be broken. The broken rate of ceramic beads is around 1%.
2. Low dust generation, friendly to the environment and worker’s health.
3. Matte Metallic luster, no polishing reflective.
4. No metal pollution.
APPLICATION OF CERAMIC BEADS BLASTING MEDIA
· 1. Sandblast cleaning for metal tools
2. Descaling and deburring
3. Alu alloy and Stainless steel surface satin finishing
4. Painting/ coating stripping and pre treatment before coating

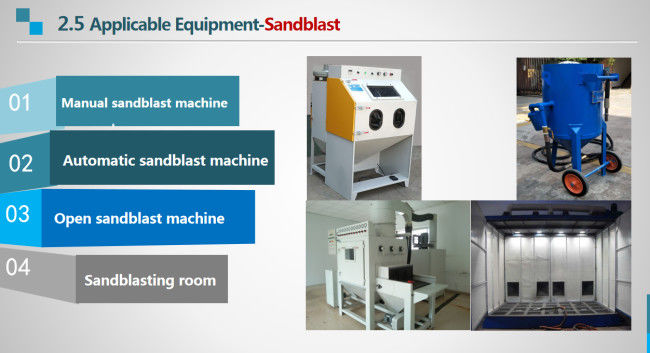

The ceramic beads is applicable to use in the mobile open sandblasting machine.
CONTACT US
Beside ceramic media, we can also supply sandblasting accessories like blasting hoses and B4C nozzles, multiple sizes available.
Contact us to get ceramic media and accessories in one site.
