90μM B170 Ceramic Bead Blasting Media For Orthopedic Implants
Product Details:
| Place of Origin: | China |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Commodity: | Ceramic Beads | Product Name: | Ceramic Blasting Media |
|---|---|---|---|
| Shape: | Solid Round Shape | Bulk Density: | 2.3g/cm3 |
| True Gravity: | 3.85g/cm3 | Vicker Hardness: | ≥700HV |
| Sphericity: | ≥0.8 | Free Sample: | Available |
| High Light: | B170 Ceramic Bead Blasting Media,90μM Ceramic Bead Blasting Media,Orthopedic Implants Ceramic Blasting Media |
||
Product Description

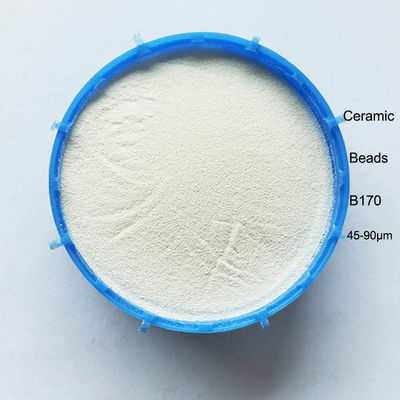

Ceramic Blasting Media B170 45-90μm B205 0-63μm B400 30-63μm for Orthopedic Implants
1. Product Description of Ceramic Blasting Media
Ceramic Beads selects the high quality zircon sand as main raw material,then fused in arc furnace under
high temperature over 2000 degrees,then made into different microbeads through special technology.
Ceramic beads has medium density and high hardness,which can provide high impact speed in blasting
process,so it is one ideal choice for surface sandblasting and shot peening,especially suitable for titanium
parts.
2. Main Technical Data of Ceramic Beads
| Commodity Name | Chemical Index | Physical Index |
| Ceramic Blasting Beads |
ZrO2 60-66% SiO2 25-30% |
Vickers Hardness ≥700 HV |
| True Specific Gravity ≥3.85 g/cm3 | ||
| Bulk Density≥2.3g/cm3 | ||
| Particle Size | B20: 0.600-0.850mm | |
| B30:0.425-0.600mm | ||
| B40:0.250-0.425mm | ||
| B60:0.150-0.300mm | ||
| B80:0.125-0.212mm | ||
| B100:0.106-0.180mm | ||
| B120:0.063-0.125mm | ||
| B150:0.000-0.125mm | ||
| B170:0.045-0.090mm | ||
| B205: 0.000-0.063mm | ||
| B400: 0.030-0.063mm | ||
| B505: 0.010-0.030mm | ||
| Special specification can be customized | ||
3. Main Applications of Ceramic Blasting Media
Surface finish for hardware industries: hardware parts,springs,motor casing,door handles,lock cylinder etc.
Surface cleaning for molds industries: glass-bottle molds,tire molds,rubber molds etc
Surface finishing for mechnical parts,Cylinder head,artifical limb & joints,gears,glasses frames etc
Deburring for electronic & plastics industries: electronic circult board,plastic parts...
Surface strengthening treatment for automotive industries: gear-box built-in parts,Turbine....
Surface finishing for golf head,golf club...
4. Why choose our zirnano Ceramic Beads?
Higher Cleanliness
Zirnano ceramic beads are mede by the special technology,all the ceramic beads are screened more than
six times and blow-cleaning under high temperature,which provides higher clearliness and ensures it to be
work normally in humid weather;
More competitive price/performance ratio
Zirnano ceramic beads has almost the same particle size distribution and blasting effect as the one of Zirblast,
while price is more competitive,since our plant located in mountain areas,the environmental cost and labor
cost is cheaper.
Stable quality & Prompt delivery
Our ceramic beads is made by high quality zircon sand according to stricter formula ratio,all the shipment will
be sampled and tested before loading. Equipped with the most advanced production line and management
system,we can delivery the goods in time.
Stable suppliers of famous company
We are the stable supplier of Kumichel,Samsung Electronics,Foxconn...
5. Questions and Answers:
Q: Are you manufacturer of ceramic beads?
A: Yes,our ceramic beads plant loacted in Shanxi,China
Q:How to place one order?
A:Please click one of our products,then send us one inquiry email, we will reply you immediately after receiving it.
Q: We use galss beads 150# for stainless steel blasting in the past,can I use ceramic beads to replace it?
A: Yes,ceramic beads B120 (63-125μm) can replace galss beads 150# to blast stainless steel products,it will
achieve smooth bright satin finish.
Q: Which specification is more popular?
A: Ceramic beads B40,B60,B120,B205 is the popular specification.
Q:How about the delivery method?
A: If order quantity less than 100kgs,delivery by Air Express is the most quick and reasonable way.
For order quantity more than 100kgs,we will delivery it by sea way.
Q: How about the precautions when I use the ceramic beads at first time?
A:it is suggested to open 1/3 to 1/2 vest of dust collector,since ceramic beads need the wind to be recycled in the
blasting process.
Q: Is ceramic beads recyclable?
A:Yes,ceramic beads is recyclable,it can be blasted 70-90 times in the blasting process generally.
Q:Is it easy to be broken down in the blasting process?
A:No,it is not easy to be broken down,since it has dense crystal structures and high mechnical strength.
