Zirconia Toughened Alumina Beads For Metal Polishing in vibration polishing machine
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | 0.6-0.8mm~10mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity: | 65 Zirconium Silicate Grinding Beads | Color: | White Or Milky White |
|---|---|---|---|
| Chemical Index: | ZrO2 20%min. SiO2 30-35%, Al2O3 40-50% | Bulk Density: | 2.3g/cm3 |
| True Density: | 3.7g/cm3 | Hardness: | 800 HV |
| High Light: | grinding media balls,ceramic grinding balls |
||
Product Description

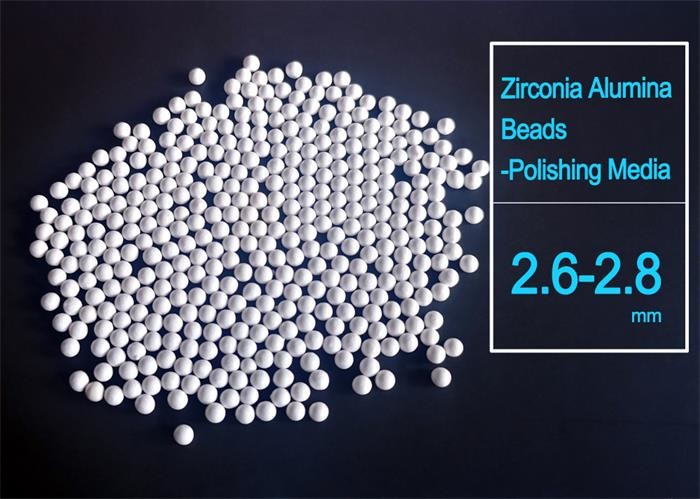

Zirconia Toughened Alumina beads for metal polishing in Vibration polishing machine

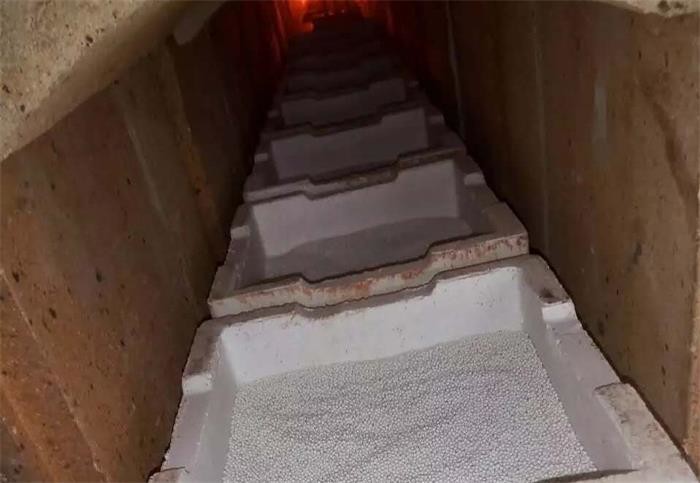

Zirconia Toughened Alumina beads is also called ZTA beads, made by sintering phasing process.
It is polishing media for metal polishing, and also grinding media for Calcium, Kaolin, Copper, Zinc, and gold industries.
| Chemical composition | ZrO2>20% |
|
SiO2 30-35% |
|
| Al2O3 40-50% | |
| True Density | 3.7g/cm3 |
| Bulk density | 2.3g/cm³ |
| Moh's hardness | 8 |
| Color | Milky white |

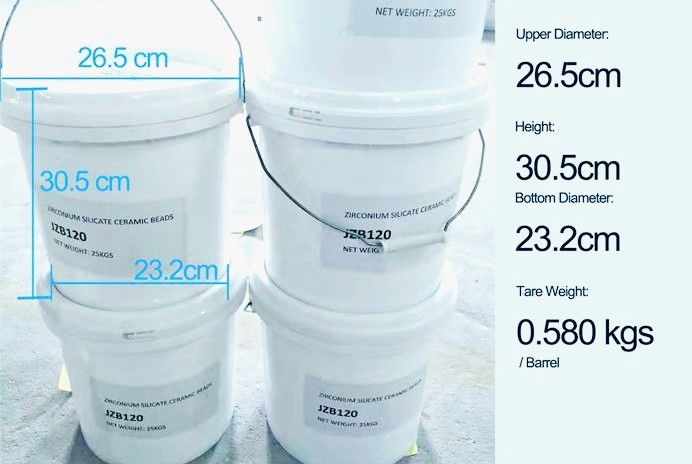

| Package | 25kg/ barrel |
Size (Diameter/mm) :
| 0.6-0.8 | 0.8-1.0 | 1.0-1.2 | 1.0-1.2 |
| 1.4-1.6 | 1.6-1.8 | 1.8-2.0 | 2.0-2.2 |
| 2.2-2.4 | 2.4-2.8 | 4,5,6,7,8,9,10 | |
As Polishing media:
The surface is smooth, low abrasion, impact resistance, economical and practical.
As grinding media:
The internal structure is uniform and dense, and the particle size distribution is consistent.
Excellent toughness, compressive strength, etc., impact resistance, not broken
Low abrasion and little wear on equipment
In Polishing
Mainly used for precision polishing the surface of various metal parts after rough polishing.
Use with the brightener can greatly improve the brightness of the workpiece surface.
Can be used in vibration polishing machine, planetary polishing machine, eddy current polishing machine and roller polishing machine.
In Grinding
Mainly used in calcium carbonate, kaolin, non-ferrous metal mines such as copper mine, zinc mine, gold mine, etc.
Ball mill, stirring mill, polishing machine and sand mill and other types of equipment grinding media.
