25kgs Barrel Packaged Ceramic Beads Abrasive Blasting Media B100 Size 106-180 μM
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B60,B80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

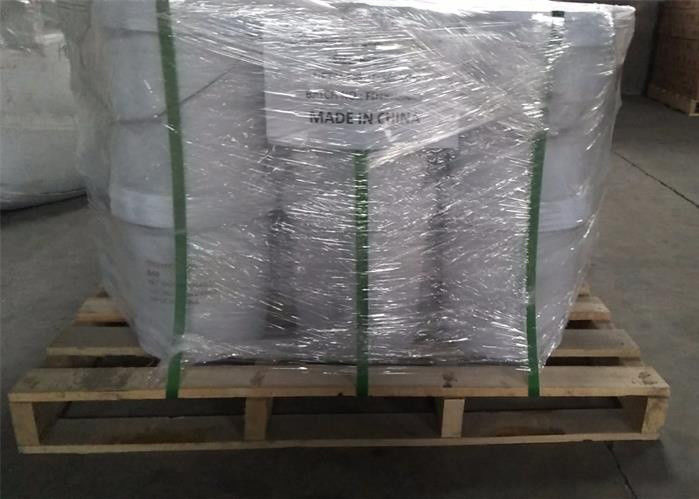

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | Free Sample: | Available |
| High Light: | ceramic bead blasting media,abrasive blasting media |
||
Product Description

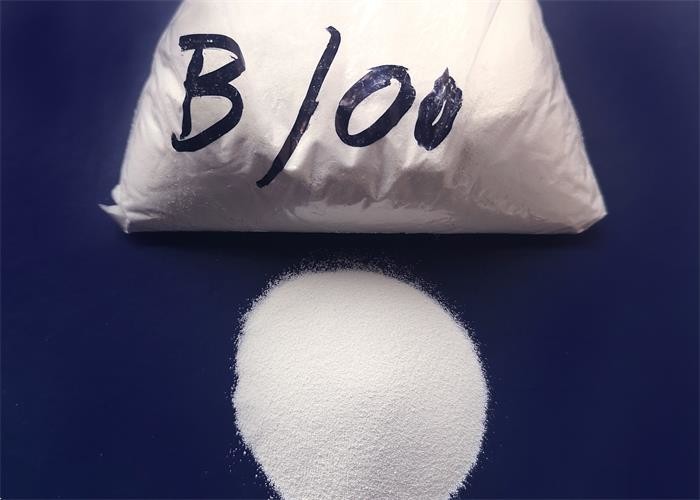

25kgs Barrel packaged ceramic beads abrasive blasting media B100 size 106-180 μm
Description of ceramic beads
Ceramic Beads is zirconia based spherical abrasive sandblasting media, produced in melting process, and then shaped into micro spherical beads, with very fine micro structure featured strong wear resistance and high toughness, and low-dust emission. Sizes available from B20 (600-800μm ) to B505 (0-63μm ).
It does not contaminate the treated metal parts surface, especially suited for metal and alloy tool cleaning and surface preparation applications.
Specification of ceramic beads
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||
Sizes
| B20 | B30 | B40 | B60 |
| 600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
| B80 | B120 | B170 | B205 |
| 180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
Production process of ceramic beads
Features of ceramic beads
- Good toughness and low wear, very low dust and eco-friendly.
- Spherical shape is particularly suitable for soft and conservative treatment and shot peening on the surface.
- Iron free, not contaminate the treated metal parts surface.
Application of ceramic beads
- Surface treatment of stainless steel and aluminum parts
- Wet and dry blasting
- Deburring
- Descaling &Refurbishment
- Tools&Molds cleaning
- Paint stripping
- Remove coating
- Etching and plating pretreatment
Applicable equipment
Manual sand blasting machine, Automatic sand blasting machine,
Open type series of sand blasting machine, and Blasting room series.
