Wear Resistance Ceramic Abrasive Media B100 For Titanium Alloy Metal Sandblasting

Wear Resistance Ceramic Abrasive Media B100 For Titanium Alloy Metal Sandblasting

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: B120

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Abrasive Media Name: Sand Blasting Media Zirconia Ceramic Bead
Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet Purity: 99.9%
High Light:

abrasive blasting media

,

ceramic bead blasting media

Product Description



1 kg Free sample ceramic abrasive blasting media B100 for titanium alloy metal sandblasting



Description of ceramic abrasive blasting media



1 kg Free sample ceramic abrasive blasting media for titanium alloy metal sandblasting



Ceramic Beads is ceramic abrasive sandblasting media, with very fine micro structure featured strong wear resistance and high toughness, and low-dust emission.

It does not contaminate the treated metal parts surface, especially suited for metal and alloy tool cleaning and surface preparation applications.



Comparing with steel shot, the ceramic beads can save energy and preserve work parts because of its appropriate hardness and good elasticity.







Specification of ceramic abrasive blasting media



Chemical Index:



ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%



Physical Index

Processing: Melting
Bulk Density: 2.3g/cm3
True Specific Gravity 3.97 g/cm3
Vickers Hardness: 700 kg /mm2



Size

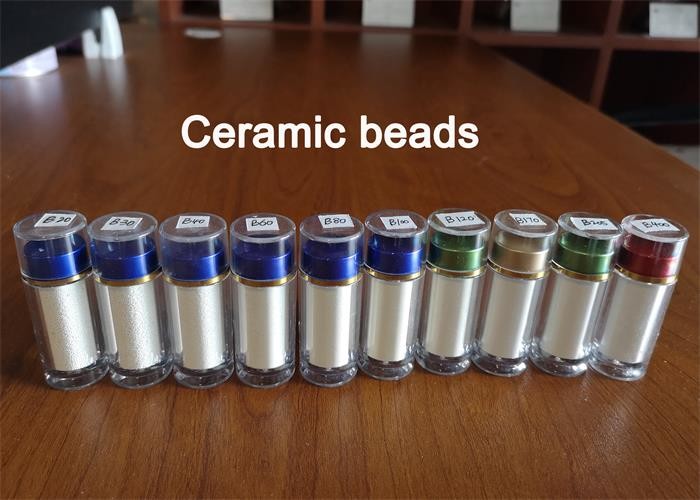

Grit size B20 B30 B40 B60 B80 B100 B120
Microns μm 600-850 425-600 250-425 150-300 125-212 106-180 63-125
Grit size B125 B170 B205 B400 B505 Special sizes can be customized
Microns μm 0-125 45-90 0-63 30-63 0-63
Grit size Z850 Z600 Z425 Z300 Z210 Z150 Z100
Microns 850-1180 600-850 425-600 300-425 210-300 150-210 100-150











Application of ceramic abrasive blasting media



  • 3C industry sandblasting: Computer shell, mobile phone middle frame, built-in parts and USB Data cable plug blasting surface treatment.
  • Glass bottle & Tires Molds cleaning sandblasting
  • Shot peening in automotive and aerospace industry.
  • Metal parts surface treatment blasting finish, like Hard wares parts, Pots, medical instrument, golf club, etc





Characteristics of Ceramic beads:



Ceramic beads is of iron free, no contamination or damage to treated metal parts



Narrow particle sizes distribution and smooth spherical beads lead consistency in blasting treatment results from the first part to the last.



Cost-effective compared to glass beads because of its high wear resistance, 25 times better than glass beads.



Enhanced performance in dry air blast, wet blast as well as wheel turbine blasting machines







Wear Resistance Ceramic Abrasive Media B100 For Titanium Alloy Metal Sandblasting 0







If you need ceramic beads, pls feel free contact us for advisory pre-sale service, best price, details, and samples, etc.
