Ultra Fine 0.1mm Stabilized Zirconia Grinding Beads Sphere Shape For Ink Milling
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| High Light: | zirconium oxide beads,zirconium oxide balls,zirconia ceramic balls |
||
Product Description
Ultra fine 0.1mm Y-TZP yttrium stabilized zirconia oxide grinding beads for ink milling
| l Product Name | |||||
| Fast delivery ultra fine 0.1mm Y-TZP yttrium stabilized zirconia oxide grinding beads for ink milling | |||||
| l Commodity Description | |||||
|
Yttrium stabilized zirconia oxide grinding beads is also called Y-TZP grinding beads. It is produced from Yttrium stabilized zirconia powder by beating, drying and forming to beads, then sintering and polishing. It is with a wide range of application in grinding for Painting,Coating, Pigment, Ink, Magnetic materials, Medicine, Agrochemical
and Mine industry. |
|||||
| l Chemical & Physical Index | |||||
| Chemical Index | Production Process | True Density | Bulk Density | Hardness | |
| Vickers | Mohs | ||||
|
ZrO2 :95% Y2O3: 5% |
Sintering | 6.0 | 3.7 | 1200-1400HV | 9 |
| l Sizes | |||||
| 0.1-0.2mm | 0.2-0.3mm | 0.3-0.4mm | |||
| 0.4-0.6mm | 0.6-0.8mm | 0.8-1.0mm | |||
| 1.0-1.2mm | 1.2-1.4mm | 1.4-1.6mm | |||
| 1.6-1.8mm | 1.8-2.0mm | 2.0-2.2mm | |||
| 2.2-2.4mm | 2.4-2.6mm | 2.6-2.8mm | |||
| 2.8-3.0mm | 3.0-3.5mm | 3.5-4.0mm | |||
| 5mm | 6mm | 7mm | |||
| 8mm | 9mm | 10mm | |||
| 11mm | 12mm | 15mm | |||
| 17mm | 20mm | 25mm | |||
| 30mm | 40mm | 50mm | |||
| l Features of Zirconia grinding beads | |||||
|
1. High hardness, Mohs 9 2. Good wear resistance, low wear loss 0.12 ppm/h max. 3. Non-conducted and low thermal conduction,3 W/m.K 4. No impurity, keep the material high degree of purity. |
|||||
| l Parameters- (Comparing with Zirconium Silicates) | |||||
| Parameters | 95 Y-TZP Zirconia Grinding Beads | 65 Zirconium Silicate Beads | |||
| Chemical index | ZrO2+Y2O3 | ZrO2+SiO2 | |||
| Chemical stability | Good | Better | |||
| Vickers Hardness | 1100HV | 900HV | |||
| True Density | 6.0g/cm3 | 4.0 g/cm3 | |||
| Bulk Density | 3.7g/cm3 | 2.5g/cm3 | |||
| Size range | 0.1-50mm | 0.6-10mm | |||
| Shape | spherical | spherical | |||
| Metal Pollution | no | no | |||
| Wear loss | 0.6% | 0.75% | |||
| Application |
Grinding and milling media in below industries: 1. Wear and corrosion resistant products like coating, pigment, ink and dyeing |
Grinding mainly for calcium carbonate, kaolin, titanium dioxide, paint, paint, etc. | |||
| l Applicable Equipment | |||||
|
1. Horizontal Bead Mill 2. Vertical Bead Mill /Sand Mill 3. Vertical Attrition Mill 4. High Speed Ultra Fine Sand Mill 5. Basket Mill 6. Horizontal Pin Mill 7. Nano Mill |
|||||
| l Package | |||||

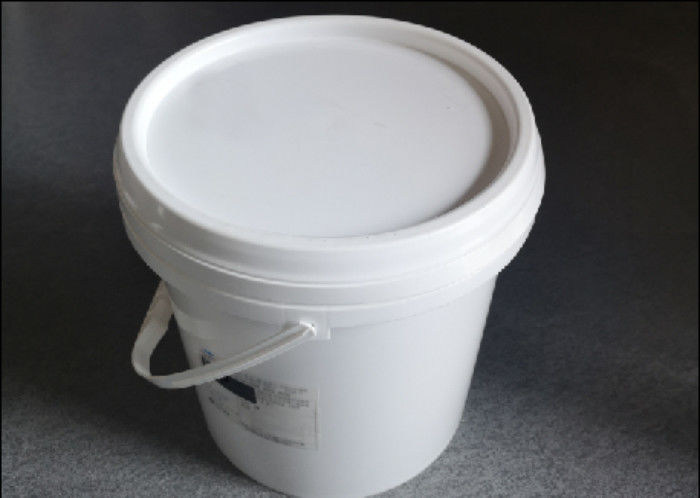

| 25kgs /Barrel+Pallet | |||||
