Micro B120 Ceramic Bead Blasting Zirconium Silicate Beads With Long Service Life

Micro B120 Ceramic Bead Blasting Zirconium Silicate Beads With Long Service Life

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001,ROHS,SGS
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 25kg barrel+pallet or 2*12.5kg barrel + Pallet
Delivery Time: Within 3-5 days after order Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 MTS Per Year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Beads Blasting Meida Product Name: Ceramic Beads
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Particle Range: 0-850 μm Specification: B20-B505
Vicker Hardness: 700HV Sphericity: ≥ 80%
High Light:

Micro B120 Ceramic Bead Blasting

,

Zirconia based Ceramic Beads Blasting

,

Ceramic Zirconium Silicate Beads Blasting

Product Description

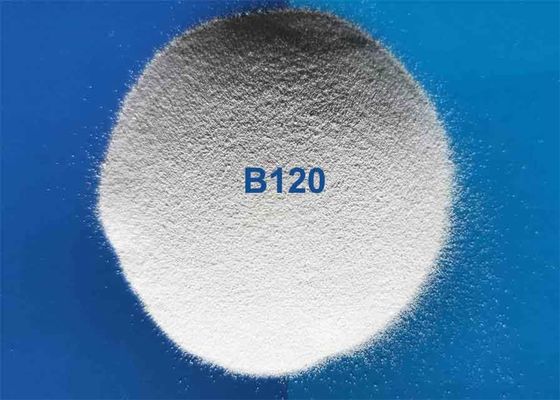

Ceramic Bead Blasting Zirconium Silicate Beads B120 63-125μm for Golf Head,Medical Instrument



1. Product Description of Ceramic Bead Blasting

Ceramic Beads selected the high quality zircon sand as main raw material,then fused in electric furnace under

high temperature over 2000,finally made into different size through special technology.

It is widely used as one blasting media to replace galss beads where one clean working condition and more

consistent blasting effect is required.



2. The Main Technical Data of  Ceramic Bead Blasting



Commodity Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Ceramic Bead Blasting Processing Method Melting
Vickers Hardness ≥700 HV
True Specific Gravity ≥3.85 g/cm3
Bulk Density ≥2.3g/cm3
Usage Blasting Media





Particle Size
B20 B30 B40
600-850μm 425-600μm 250-425μm
B60 B80 B100
150-300μm 125-212μm 106-180μm
B120 B170 B205
63-125μm 45-90μm 0-63μm
B400 B505 /
30-63μm 0-30μm /



3. Why Ceramic beads can replace galss beads?

Compared with glass beads,ceramic beads has the following advantages:

Longer service life

Ceramic beads has fine microstructure, lower breakdown rate,it is not easy to be broken in the whole blasting

process, the non-broken one will still maintain its original shape and properties, it can be reused for many cycles.

while glass beads is easy to be dust after several cycles,even stick to the surface of workpieces.



More consistent Blasting Effect

Ceramic beads has better sphericity, smooth surface, higher hardness,which will provide the minimal crack initiation,

then finally provide more consistent and shinny blasting effect compared with the one of glass beads.



Lower solid waste disposal cost

Glass beads will finally break into dust,people have to spend additional cost to dispose it.While little solid waste

disposal cost when after using ceramic beads.



No hidden danger of Silicosis

Ceramic beads will generate little dust in the whole blasting process,there is no hidden danger of silicosis to the

operator.



4. Main Applications of Ceramic Bead Blasting:

Surface finish for the metal surface of 3C products and its built-in parts as well as its accessories;

Sandblasting for light alloy,stainless steel etc;

Surface cleaning for galss-bottle molds,plastic molds,tire molds etc;

Pretreatment for electroplating,painting,anodizing etc.

Deburring for electronic products and aluminum casting.



Micro B120 Ceramic Bead Blasting Zirconium Silicate Beads With Long Service Life 0



5. Why choose Zirnano Ceramic Beads?

Higher clearliness

Our ceramic bead are screened more than six times and blow-cleaning under high temperature,

which provides higher clearliness and ensures it to be work normally in humid weather;



More Competitive price/performance Ratio

Our ceramic beads plant is located in mountain area,there is lower labor cost & environmental cost,then the

product cost is lower and more competitive than the one of others’ plants.



More stable quality

Our ceramic beads is made by high quality zircon sand according to stricter formula ratio,all the shipment

will be sampled and tested before loading.
