• ZrO2 62 - 66% Zinano Ceramic Blasting Media B60 125 - 250μM For Stainless Steel
  • ZrO2 62 - 66% Zinano Ceramic Blasting Media B60 125 - 250μM For Stainless Steel
ZrO2 62 - 66% Zinano Ceramic Blasting Media B60 125 - 250μM For Stainless Steel

ZrO2 62 - 66% Zinano Ceramic Blasting Media B60 125 - 250μM For Stainless Steel

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001,ROHS,SGS
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 25 KG (12L)Barrel + Pallet; 2*12.5 KG Barrel+ Carton Box+ Pallet
Delivery Time: Within 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 MTS Per Year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Beads Product Name: Ceramic Blasting Media
Application: Blasting Media Or Shot Peening Shape: Spherical
Mohs Hardness: 8 Bulk Density: 2.3 G/cm3
True Gravity: 3.85g/cm3 Specification: B20-B505
High Light:

abrasive blasting media

,

ceramic bead blasting media

Product Description

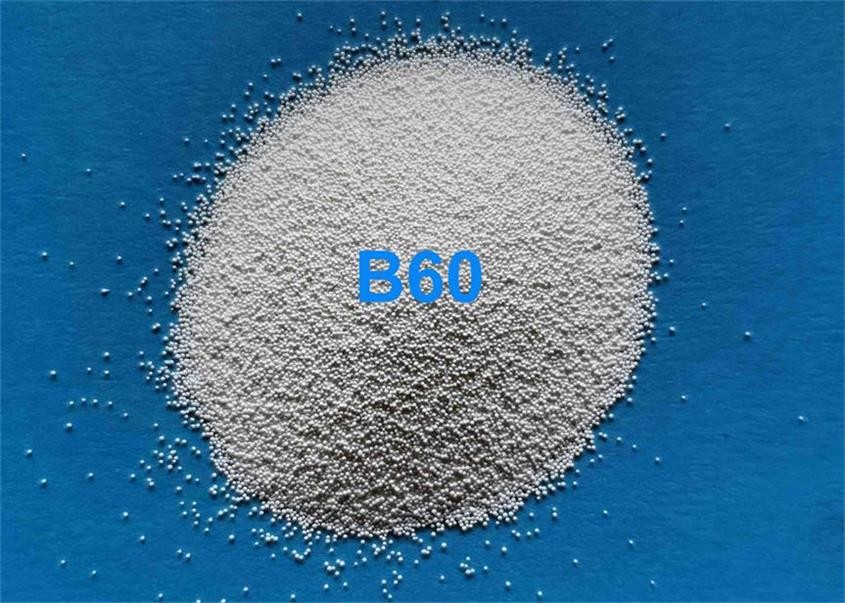

ZrO2 60-66% Zinano Ceramic Bead Blasting B60 125-250μm for Stainless Steel



1. Product Description of Ceramic Bead Blasting

Ceramic Bead is one clean blasting media,which will generate little dust in the whole blasting process,then it can replace glass beads in most applications.



2. The Comparation between Ceramic Beads and Glass Beads

Item Ceramic Bead Blasting Glass Beads
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%



SiO2:>65%,Na2O<14.0%
CaO>8.0%,MgO>2.5%
Al2O3 0.5-2.0%

Fe2O3:0.15%

Vickers Hardness ≥700 HV ≥560HV
True Specific Gravity ≥3.85 g/cm3 ≥2.5g/cm3
Usage Blasting Media Blasting Media
Ferrous Contamination No Ferrous No Ferrous
Dust Pollution Little Large
Recyclable Times Multiple One time or twice
Power consumption Low Low
Equipment Wear Rate Low Low
Blasting Effect High finish
No discoloration
High finish
White discoloration





Particle Size Comparation
Ceramic Beads Glass Beads
B20: 0.600-0.850mm 30#:0.425-0.850mm
B30:0.425-0.600mm 40#: 0.425-0.600mm
B40:0.250-0.425mm 60#:0.300-0.425mm
B60:0.125-0.250mm 80#:0.150-0.300mm
B80:0.180-0.250mm 100#:0.106-0.212mm
B100:0.125-0.180mm 120#:0.106-0.150mm
B120:0.063-0.125mm 150#:0.075-0.150mm
B150:0.053-0.125mm 180#:0.075-0.106mm
B170:0.045-0.090mm 220#:0.053-0.106mm
B205: 0-0.063mm 280#:0.045-0.075mm



3. Main Features of Ceramic Bead Blasting

Long servive life

The life of ceramic bead is about 20 times compared with the one of galss beads

High Efficiency and consistent Blasting Effect

The elastic modulus of cearamic bead is 330GPa, which is much higher than the 60 GPa of glass beads.

It is not easy to be broken down,people do not need to refuel the beads frequently,then the beads in the

blasting machine will maintain the same quantity and shape,which will achieve the more consistent blasting

effect.

Better Visual Effect

The workpiece treated by ceramic bead will achieve shinny visual effect and lower roughness,it will also greatly

reduce the working time for mold repairing and polishing.



Lower energy consumption

Ceramic bead has higher density and modulus of elasticity and better impact energy,when achieving the same

blasting effect,it will need lower energy consumption and blasting pressure,finally reducing the production cost.



4. Main Application of Ceramic Bead Blasting

Mold cleaning and maintenance

Surface finish for 3C products such as the metal surface and built-in parts

Deburring for circuit board in electronic industry

Anti-fatigue and strengthening treatment of shock absorber spring in automotive and turbine industry

Manufacturing and maintenance of titanium alloy materials in aerospace industry

ZrO2 62 - 66% Zinano Ceramic Blasting Media B60 125 - 250μM For Stainless Steel 0

5. Why Choose Us?



Professional Manufacturer of ceramic beads,annual output over 3000mts;



Equipped the most advanced production line,testing equipment, as well as professional technical staffs

and 7*24h technical support;



Strict quality control and quality assurance, products will be inspected by each shipment,even for the free

sample in small quantity;



Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;



Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc



Products in good quality & stable performance,competitive price,flexible payment terms,prompt delivery etc.
