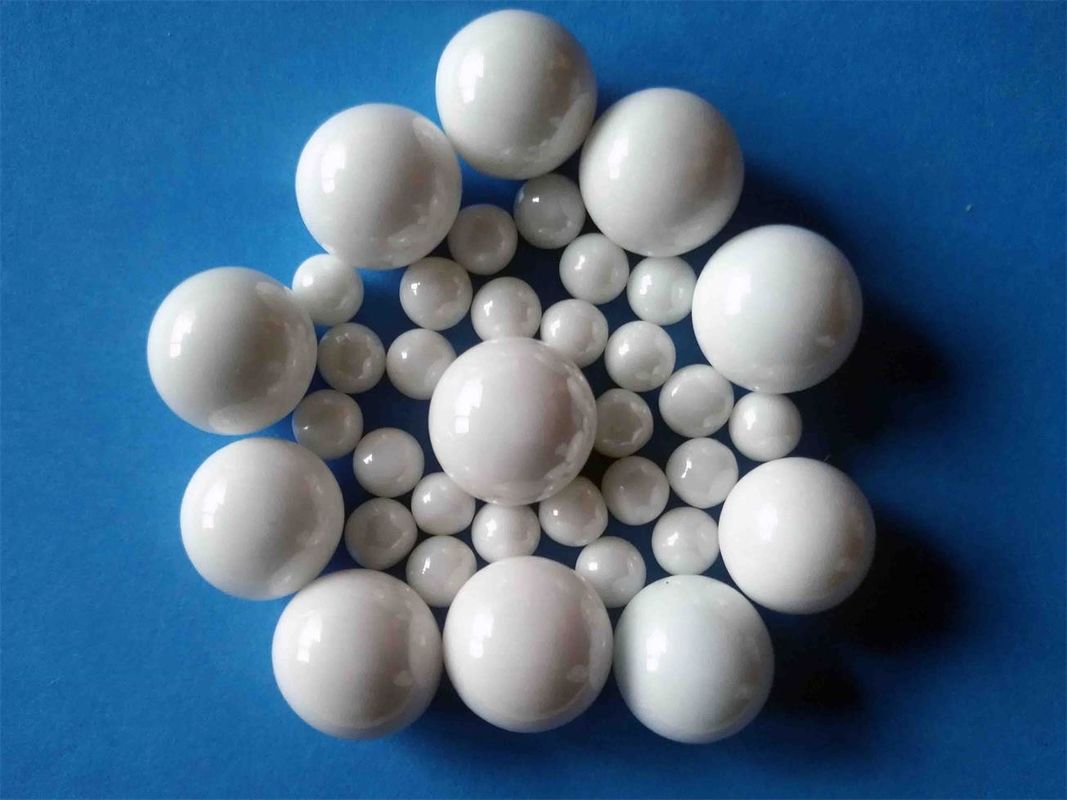

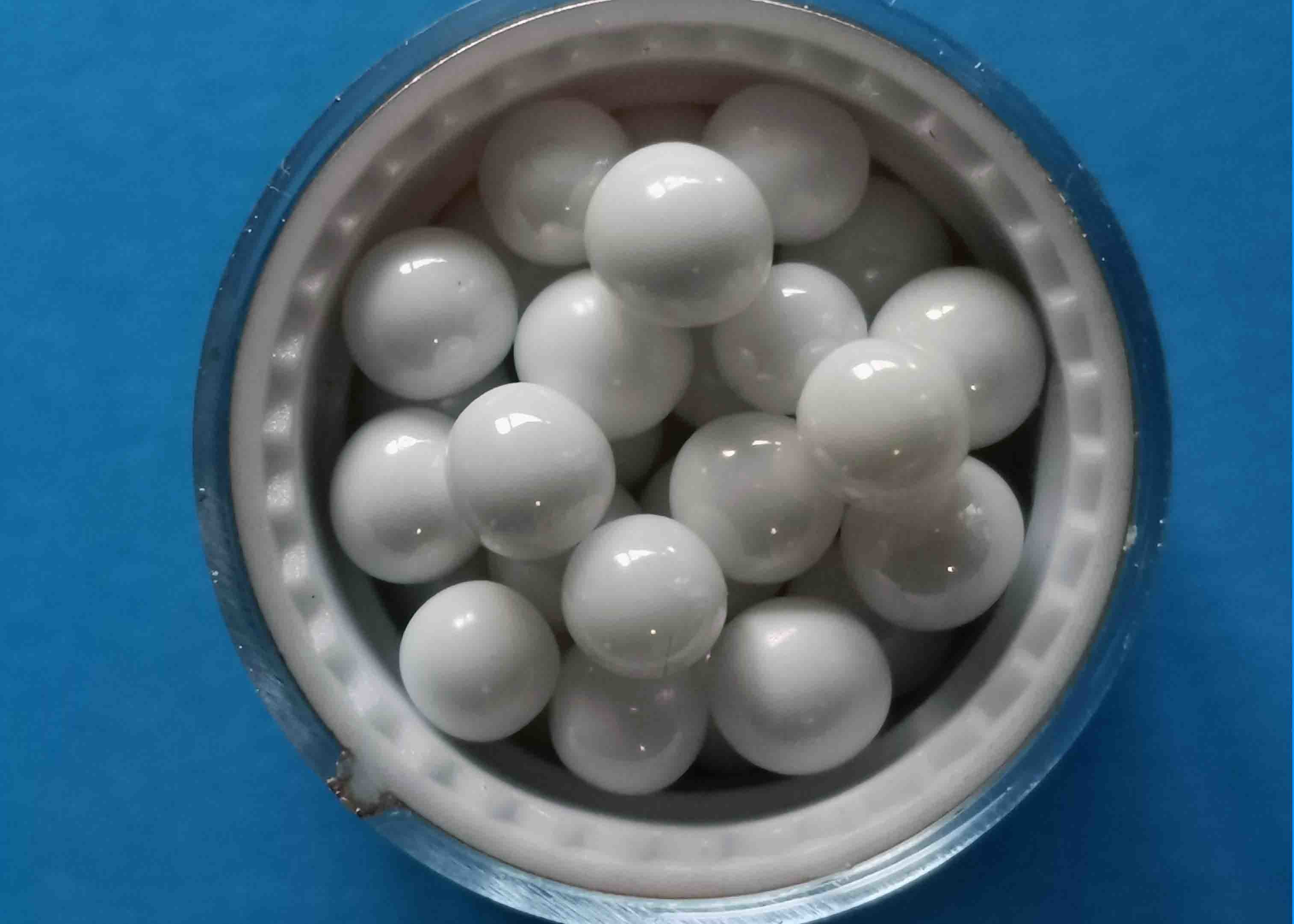

Zirconia Beads 95 Yttria Stabilized Zirconia Beads Sintering In Paint / Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 0.2-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25KG |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel + Pallet |
| Delivery Time: | Within 1-3 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mt |
|
Detail Information |
|||
| Commodity: | 95 Yttria Stabilized Zirconia Beads | Product Name: | 95 Zirconia Beads |
|---|---|---|---|
| Application: | Grinding Media | Process: | Sintering |
| Shape: | Round Solid Ball | Bulk Density: | 3.7g/cm3 |
| True Gravity: | ≥6.0 G/cm3 | Vicker Hardness: | ≥1100 HV |
| High Light: | zirconium oxide beads,zirconium oxide balls,zirconia ceramic balls |
||
Product Description
Zirconia Beads 95 Yttria Stabilized Zirconia Grinding Media in Ink,Paint,Coating
1. Product Description of 95 Yttria Stabilized Zirconia Grinding Media
95 Yttria Stabilized Zirconia Beads selects the rare earth yttrium oxide as stabilizer, and high whiteness
and fineness zirconia powder as main material,which ensures no pollution to treated materials.
2. Main Technical Data of 95 Yttria Stabilized Zirconia Grinding Media
| Commodity | Typical Chemical Index | Main Physical Index |
| 95 Zirconia Beads | ZrO2 ≥95% | True Gravity ≥6.0g/cm3 |
| Y2O3 ≥4.5% | Bulk Density ≥3.7g/cm3 | |
| Others ≤0.5% | Vicker Hardness ≥1100 HV | |
| sintering process | compressive strength ≥2.0KN Φ2mm |
| Specification for 95 Zirconia Beads | |||
| Φ0.1-0.2mm | Φ0.2-0.3mm | Φ0.3-0.4mm | Φ0.4-0.6mm |
| Φ0.6-0.8mm | Φ0.8-1.0mm | Φ1.0-1.2mm | Φ1.2-1.4mm |
| Φ1.4-1.6mm | Φ1.6-1.8mm | Φ1.8-2.0mm | Φ2.0-2.2mm |
| Φ2.2-2.4mm | Φ2.4-2.6mm | Φ2.6-2.8mm | Φ2.8-3.0mm |
| Φ4mm | Φ5mm | Φ6mm | Φ7mm |
| Φ8mm | Φ9mm | Φ10mm | Φ12mm |
| Φ15mm | Φ17mm | Φ20mm | Φ25mm |
| Φ30mm | Φ40mm | Φ45mm | Φ50mm |
| Remark: Special Specification can be customized | |||
3. Main Applications of 95 Zirconia Beads
Mainly used for ultra-fine grinding and dispersion of materials requiring "zero pollution" and high viscosity
and hardness, such as non-metallic minerals, pesticides, electronic ceramics, magnetic materials, titanium
dioxide, medical supplies, pigments, dyes, inks, special chemical industries, etc.
4. Main Features of 95 Zirconia Beads
High hardness,high strength
Low abrasion rate
High sphericity,little damage to grinding machine
Zero pollution to the materials
5.How to Choose the right zircona bead grinding media?
| Application List for Zirconia Grinding Media | |||
| 95 Zirconia Beads | 80 Zirconia Beads | Ce- stabilized zirconia | 65 Zirconia Beads |
Ink,Paint,Coating, Pigment,Dye,Pesticides, Titanium dioxide, Electronic ceramics, Pharmaceutical, non-metallic minerals |
Ink, Paint. Coating,Pigment, Pesticides, Titanium dioxide, non-metallic minerals |
Ink ,Paint Coating,Pigment |
Ink,Paint, Coating, Pigment,Pesticides, Titanium dioxide, non-metallic minerals |
There are four kinds of zirconia bead grinding media,people are able to choose the right on according
to the different industries and grinding equipments.
