• Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE
  • Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE
Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE

Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE

Product Details:

Place of Origin: China
Brand Name: ZIRNANO
Certification: ISO9001,ISO14001
Model Number: Z100-Z850

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Beads Product Name: Ceramic Blasting Media
Usage: Surface Finish For 3C Products Bulk Density: 2.3 G/cm3
True Gravity: 3.85 G/cm3 Vicker Hardness: 700 HV
Main Material: 62-66% ZrO2 Shape: Solid Round Ball
High Light:

shot blasting material

,

shot blasting abrasive

,

abrasive shot blasting

Product Description

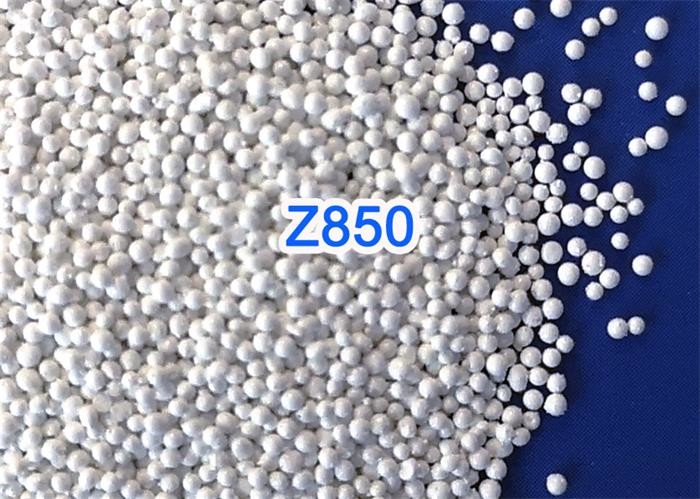

Z100-Z850 Shot Peening Ceramic Media Meets AMS2431-7B SAE Aerospace



Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE 0

Ceramic shot peening media is made from imported zircon sand as raw material and by electrofusion, and

then blow to different sizes from Z100-Z850.

Its unique internal crystal phase structure ensures its strong hardness and impact resistance. The spherical

body and perfectly smooth surface and dust-free features provide a prerequisite for a good working environment.

At the same time, a stable chemical inertness ensures that the treated workpiece is not contaminated.

Our ceramic beads quality meets AMS2431-7B requirements of SAE Aerospace .



Technical Data
Components Content CAS No. EC No.
ZrO2 (Zirconium dioxide) 60-68% 1314-23-4 215-227-2
SiO2 (Silicon dioxide) 25-30 60676-86-0 262-373-8
Al2O3 (Aluminum oxide ) 7-13% 1344-28-1 215-691-6
Manufacturing Method Melting in above 2000℃ furnace
True Density 3.85 g/cm3
Bulk Density 2.3g/cm3
Vicker Hardness 700HV
Sizes for Shot Peening
Z850 0.85-1.18 mm Z210 0.21-0.30 mm
Z600 0.6-0.85 mm Z150 0.15-0.21 mm
Z425 0.425-0.60 mm Z100 0.10-0.15 mm
Z300 0.30-0.425 mm



Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE 1

  • Impact resistance, long service life;
  • Small dust, good sandblasting effect;
  • Smooth surface, good fluidity;
  • Low wear, low nozzle loss;
  • Very low iron content, no pollution of the workpiece.
  • Can be recycle for many times use, high cost performance.



Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE 2



Fields: Shot peening of aluminum alloy rims, automobile springs, gearbox gears, engine crankshafts, etc. in the automotive industry, shot peening of aircraft blades, gears, turbine disks, landing gear support beams, wings, etc. in the aerospace industry



Shot peening application range:

Shot peening can prevent bending fatigue of automobile parts; shot peening can improve the bending fatigue property of the root of the tooth profile; shot peening can improve the fatigue resistance and safe service life of the crankshaft; shot peening can increase the strength and rigidity of the connecting rod;



Z100-Z850 Shot Peening Media Surface Finish For aluminum alloy rims Meets AMS2431-7B SAE 3

  • 25kgs-12L Barrels
  • 12.5kgs small Barrels, 2 barrels in Paper cartons



Lot number is the production date

Label

Labeling on the barrels and paper cartons

Net weight: Net 25kg

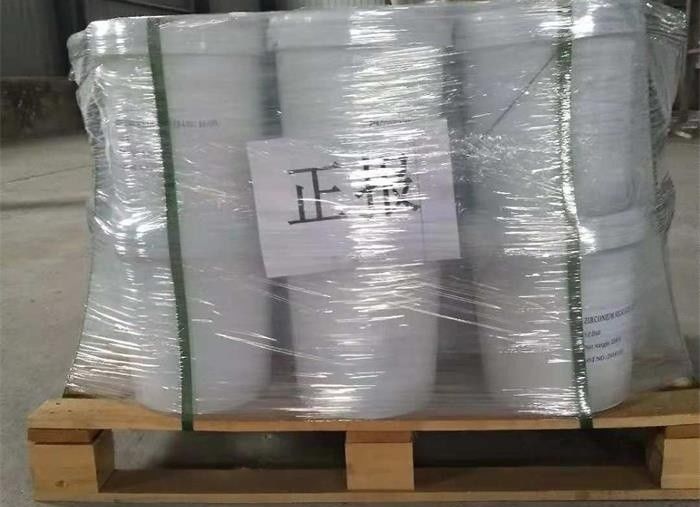

Supply packaging picture



  • Custody method



Quality guarantee period

2 years after delivery.



Keep the barrels sealed in order to prevent impurities mixing.

Avoid direct sunlight

Store in a dry and cool warehouse

Keep ventilated

Far from fire
