Beads B60 Environmentally Friendly Ceramic Blasting media easy to recyle
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |

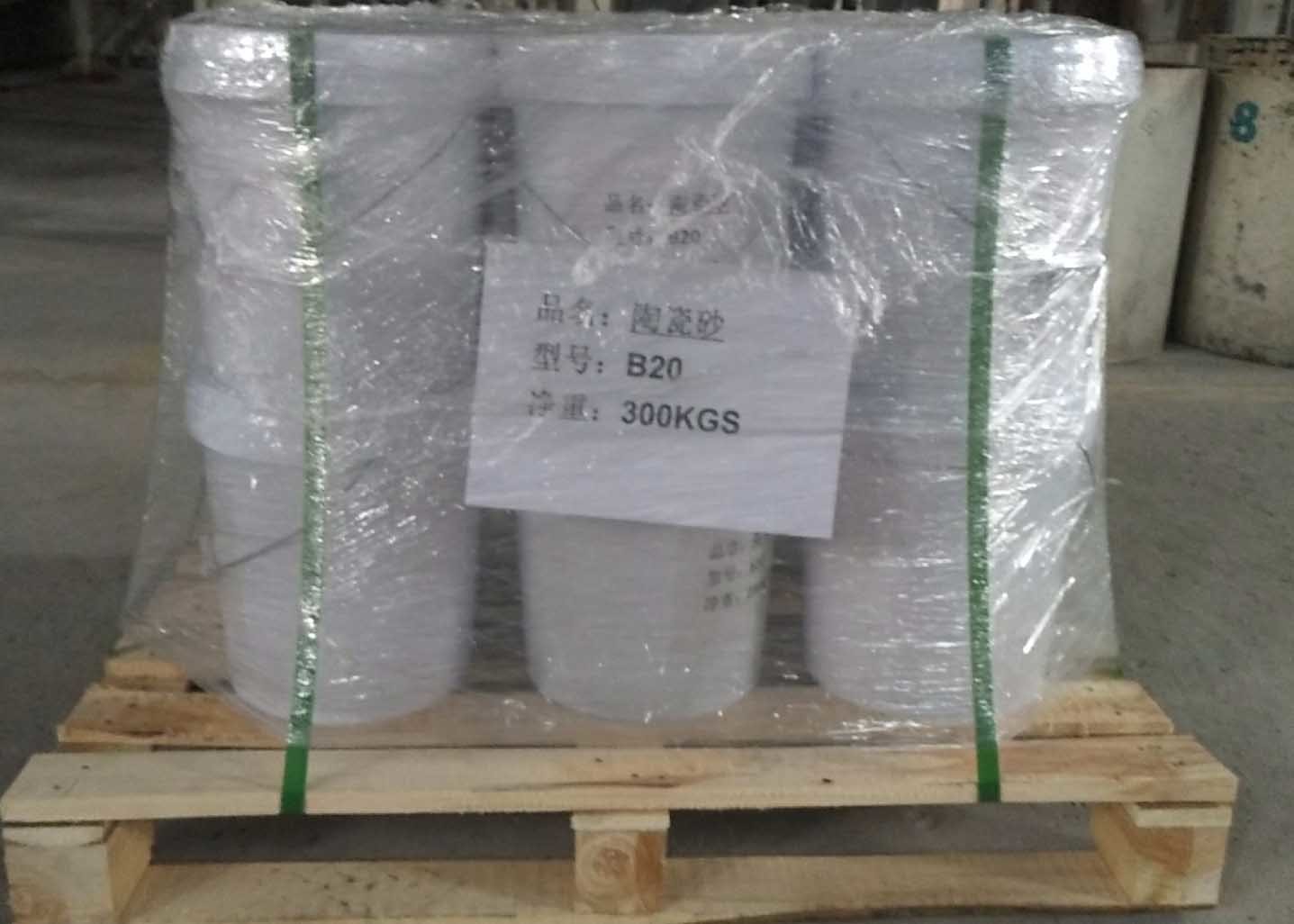

| Packaging Details: | 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Beads | Product Name: | Ceramic Blasting Media |
|---|---|---|---|
| Usage: | Surface Finish For 3C Products | Bulk Density: | 2.3 G/cm3 |
| True Gravity: | 3.85 G/cm3 | Vicker Hardness: | 700 HV |
| Main Material: | 62-66% ZrO2 | Shape: | Solid Round Ball |
| High Light: | abrasive blasting media,ceramic bead blasting media |
||
Product Description
Beads B60 Environmentally Friendly Ceramic Blasting media easy to recyle
DESCRIPTION OF CERAMIC BEADS B60
Ceramic blasting beads is an efficient and environmentally friendly sand blasting media, can be recycled easily
and used many times.
It has features of proper density, like bulk density 2.3g.cm3, high toughness, good stability, low loss and low
energy consumption.
| Technical Data | |||
| Components | Content | CAS No. | EC No. |
| ZrO2 (Zirconium dioxide) | 60-68% | 1314-23-4 | 215-227-2 |
| SiO2 (Silicon dioxide) | 25-30 | 60676-86-0 | 262-373-8 |
| Al2O3 (Aluminum oxide ) | 7-13% | 1344-28-1 | 215-691-6 |
| Manufacturing Method | Melting in above 2000℃ furnace | ||
| True Density | 3.85 g/cm3 | ||
| Bulk Density | 2.3g/cm3 | ||
| Vicker Hardness | 700HV | ||
| Sizes for Sand Blasting | |||
| Bead Size | Size range | Bead Size | Size range |
| B20 | 0.60-0.85 mm | B120 | 0.063-0.125 mm |
| B30 | 0.425-0.60 mm | B125 | 0.000-0.125 mm |
| B40 | 0.24-0.425 mm | B170 | 0.045-0.090 mm |
| B60 | 0.125-0.25 mm | B205 | 0.000-0.063 mm |
| B80 | 0.18-0.25 mm | B400 | 0.030-0.063 mm |
| B100 | 0.125-0.18 mm | B505 | 0.000-0.030 mm |
| Sizes for Shot Peening | |||
| Z850 | 0.85-1.18 mm | Z210 | 0.21-0.30 mm |
| Z600 | 0.6-0.85 mm | Z150 | 0.15-0.21 mm |
| Z425 | 0.425-0.60 mm | Z100 | 0.10-0.15 mm |
| Z300 | 0.30-0.425 mm | ||
FEATURES OF CERAMIC BEADS B60
1. Ceramic beads has long service life and high cost performance:
The life of ceramic beads is more than 30 times that of glass beads. Ceramic sand will not wear, only a small amount will be broken into pieces, and the broken ceramic beads will still maintain the original size, shape and hardness. and smooth surface, this is enough to recycle.
2. Ceramic beads does not produce dust. This is enough to effectively reduce the dust content and final waste in the working environment, which can effectively protect the environment from pollution and pose no harm to workers.
3. Ceramic beads has high hardness, long service life, good elasticity and low wear, which can effectively reduce the number of replacement materials and reduce the cost of workers. Whether it is used in dry blasting, wet blasting or shot blasting, ceramic sand can bring high efficiency.
APPLICATION OF CERAMIC BEADS B60
- 3C industry sandblasting: Computer shell, mobile phone middle frame, built-in parts and USB Data cable plug blasting surface treatment.
- Glass bottle & Tires Molds cleaning sandblasting
- Shot peening in automotive and aerospace industry.
- Metal work pieces surface treatment blasting finish, like Hard wares parts, Pots, medical instrument, golf club, etc
If you're looking for Ceramic Beads B60, pleased contact us to get updated price and more details.
