• High Toughness ZrO2 62-66% Ceramic Bead Blasting Material Shot Peening B20 - B400 For Surface Preparation
  • High Toughness ZrO2 62-66% Ceramic Bead Blasting Material Shot Peening B20 - B400 For Surface Preparation
High Toughness ZrO2 62-66% Ceramic Bead Blasting Material Shot Peening B20 - B400 For Surface Preparation

High Toughness ZrO2 62-66% Ceramic Bead Blasting Material Shot Peening B20 - B400 For Surface Preparation

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: B20-B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotaible
Packaging Details: 2*12.5 KGS Barrel +Carton Box + Pallet,25KGS Barrel + Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000mts
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Media Product Name: Zirconia Beads
Usage: Blasting Media Bulk Density: ≥2.3 G/cm3
Shape: Solid Round Ball Recycles: 70-90
High Light:

abrasive blasting media

,

ceramic bead blasting media

Product Description

High Toughness ZrO2 62-66% Ceramic Beads  Blasting Media Shot Peening B20-B400 for surface Preparation

1. Product Description of Ceramic Blasting Media

Ceramic beads contain 62-66% ZrO2 and its fine microstructure ensures it has the characteristics of high

hardness,high strength impact,it will create a good toughness when it is sprayed into the treatment surface

under high pressure, therefore ceramic beads is used for surface preparation before electroplating,painting,

anode etc.

Zirnano Ceramic Beads selected the high quality zirconium sand as the main raw material,fused in an electric

arc furnace under high temperature over 2000 degrees,then made into different micro or fine beads through

a special technology.

2. Main Technical Data of Ceramic Beads Blasting

Main Index of Ceramic Bead Blasting
ZrO2 SiO2 Al2O3
60-66% 25-30% 7-13%
Vicker Hardness True Specific Gravity Bulk Density
≥700 HV ≥3.85 g/cm3 2.3g/cm3

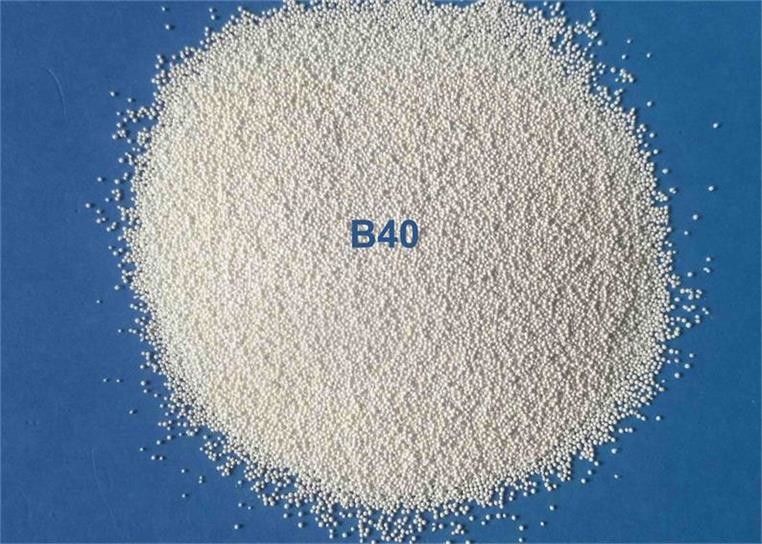

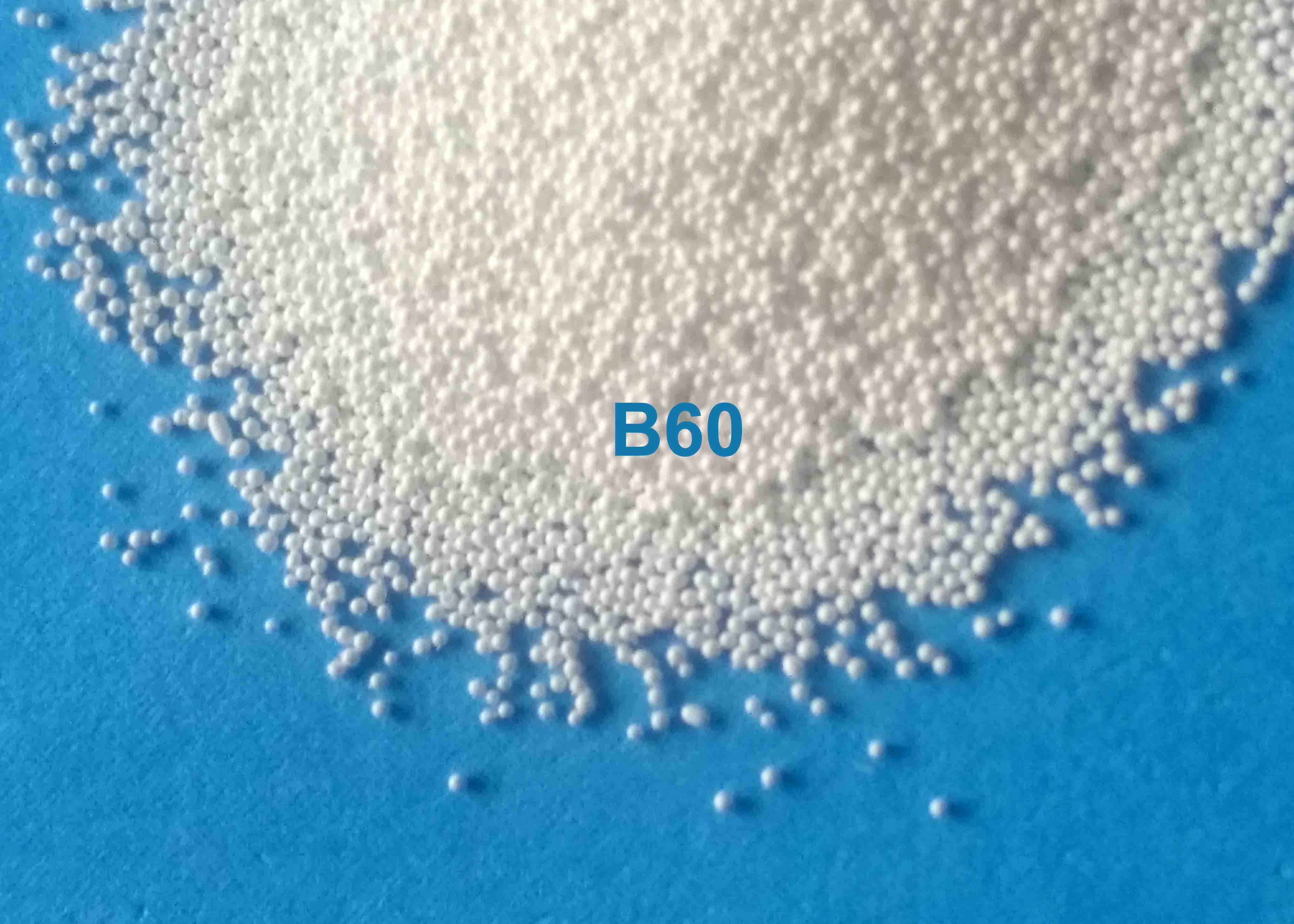

Particle Size of Ceramic Blasting Media
B20: 600-850μm B100: 125-180μm
B30: 425-600μm B120: 63-125μm
B40: 250-425μm B170: 45-90μm
B60: 125-250μm B205: 0-63μm
B80: 180-250μm B400: 30-63μm
Remark: Special specification can be customized



3. Package of  Ceramic Bead Blasting



High Toughness ZrO2 62-66% Ceramic Bead Blasting Material Shot Peening B20 - B400 For Surface Preparation 0



4. Main Features of Ceramic Bead Blasting

  • High Hardness,High strength impact;
  • Smooth surface,good elasticity;
  • Low breakdown rate,more consistent blasting effect from the first part to the last;
  • No ferrous contamination to the treatment surface,low wear rate to the blasting equipment;
  • Low dust generation,good blasting sight;
  • Clean working condition,No hidden dangers of silicosis.

5. Main Applications of ceramic Bead Blasting

Surface preparation to achieve one certain toughness of treatment surface before electroplating,painting,

anode etc.



Surface Cleaning for for casting and forging parts,welded parts as well as heat-treated parts to remove the

impurities,micro burrs...,finally exposing the uniform metallic color,achieving smooth and non-reflective visual

effect;



Surface cleaning for the inner and outer walls of various pipes such as cooper pipes,steel pipes...



Ceramic beads is also used for stain finish in 3C products,the accessories of 3C product,light metal parts,

stainless steel parts,high strength steel...



It is also widely used as shot peening media in aviation,automotive industries...





The detail applications,please kindly visit our website www.ceramicbeadblasting.com



6. The Outstanding  Advantages of Zirnano Ceramic Bead Blasting

Higher clearliness

Our ceramic bead are screened more than six times and blow-cleaning under high temperature,

which provides higher clearliness and ensures it to be work normally in humid weather;



More concentrated particle size distribution

B400(0.030-0.063μm) is more concentrated than the other one(0-0.063μm) from other company,

which will achieve better blasting effect.



6. Why Choose Zirnano Ceramic Beads?

Professional Manufacturer of ceramic beads,annual output over 3000mts;

Equipped the most advanced production line,testing equipment, as well as professional technical staffs;

Strict quality control and quality assurance, products will be inspected by eachShipment,even for the free

sample in small quantity;

Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;

Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc

Products in good quality & stable performance,competitive price,flexible payment terms.
