Medical Devices Industries Ceramic Bead Blasting Media Ceramic Beads B170 45 - 90 μM
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

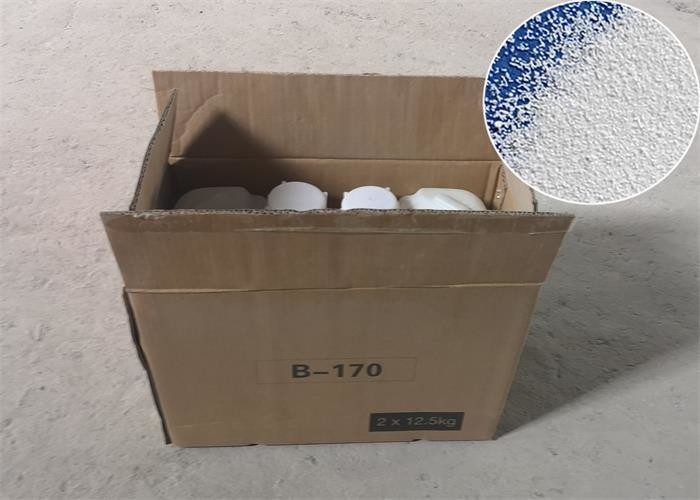

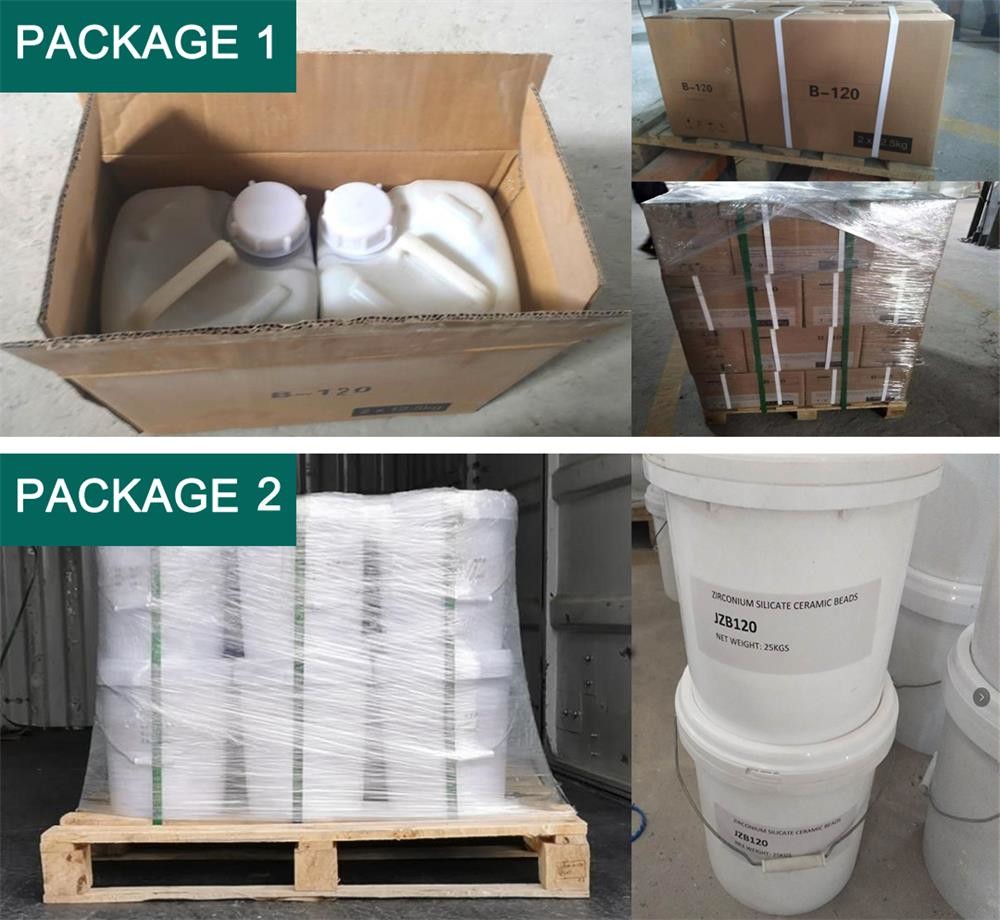

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | abrasive blasting media,bead blasting material |
||
Product Description

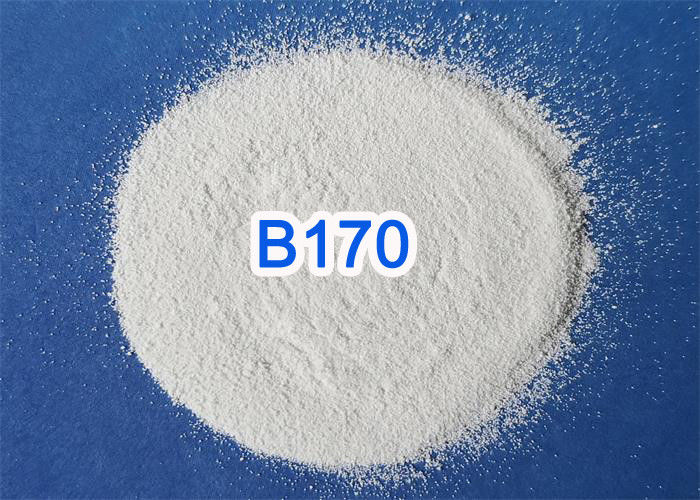

Micro blasting in Medical devices industries Ceramic beads B170 45-90 μm
DESCRIPTION OF CERAMIC BLASTING MEDIA
Ceramic blasting media is a micro blasting media, also called as Ceramic beads.
The internal structure is made up of a crystalline ceramic phase bonded by an amorphous silica phase resulting in high impact properties coupled with good hardness.
Widely used for micro blasting in Medical devices industries.
SPECIFICATION OF CERAMIC BLASTING MEDIA
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
Sizes Available
| B20 | B30 | B40 | B60 |
| B80 | B100 | B120 | B170 |
| B205 | B400 | Special sizes can be customized. | |
FEATURES OF CERAMIC BLASTING MEDIA
Strong chemical resistance
Guarantees constant performance eg. consistent Surface blasting effect.
Low dust emission
Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.
Not easy to break
Recyclable,and can reduce the refueling times, improve working efficiency.
APPLICATION OF CERAMIC BLASTING MEDIA
CERAMIC BEADS MICROBLASTING TO CLEAN MEDICAL DEVICES & PARTS
As medical devices become smaller and more intricate, a micro abrasive blasting becomes more significant. Ceramic beads is a high-tech abrasive, particularly suitable for micro blasting for medical devices industries.
The applicable medical devices & parts as below:
Cardiac pacemakers are also often cleaned with micro-abrasive blasting.
Cardiac pacemakers
Surgical tools such as scissors, knives, saws and scalpels
Stents, shunts, cages and other implant devices

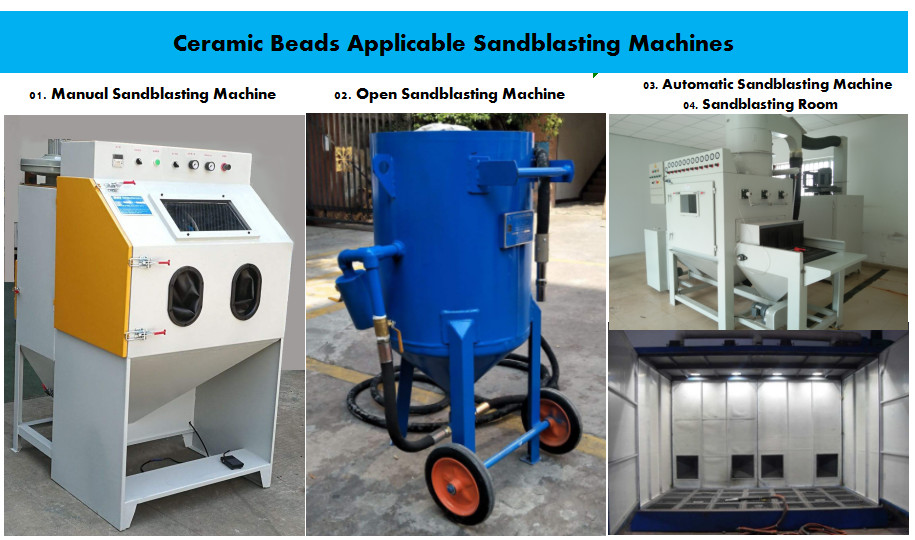

APPLICABLE EQUIPMENTS
Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room
If you're looking for ceramic beads, just contact us to get advisory service, best price, more details and samples.
