Non Destructive Medical Instrument Sandblasting Ceramic Beads B100 125-180 μm

Non Destructive Medical Instrument Sandblasting Ceramic Beads B100 125-180 μm

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation

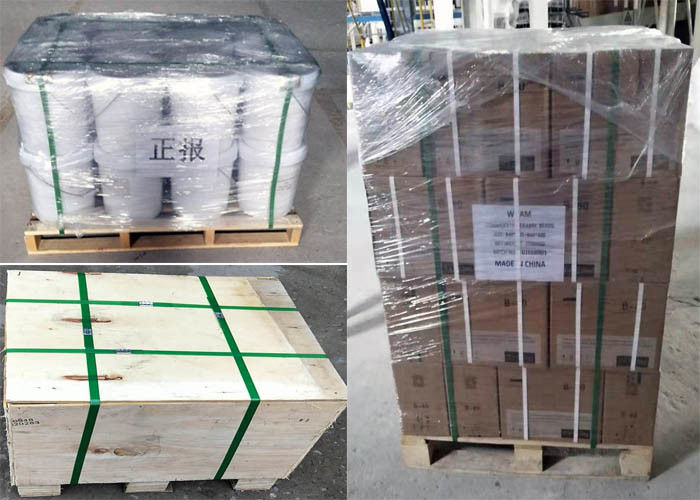

Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

low dust blasting media

,

ceramic cleaning media

Product Description

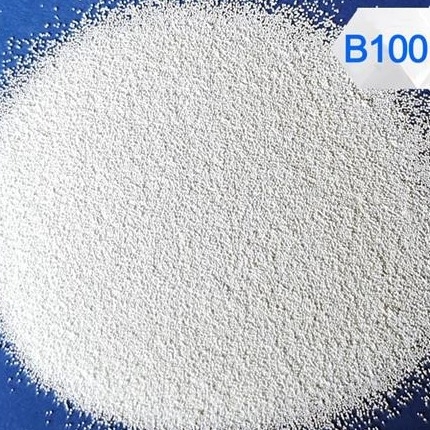

Non-destructive medical instrument sandblasting Ceramic beads B100 125-180 μm


Description of ceramic beads



The ceramic bead is high-tech abrasive blasting media, with ZrO2 60-66%, widely used for medical instruments finishing.

Non-destructive is a common requirement in medical instrument sandblasting.



Sand blasting is a fast and effective method of deburring precision components using ceramic beads blasting media. Certain high-stress orthopedic components are processed by shot peening by using the specialized automatic blasting equipment.





Specification of ceramic beads


Manufacturing process: Melting method



ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV

Sizes

B20 B30 B40 B60
600-850µm 425-6000µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm

Special sizes available against clients’ requirement.

Production process of ceramic beads

Non Destructive Medical Instrument Sandblasting Ceramic Beads B100 125-180 μm 0


Features of ceramic beads



High efficiency
With high hardness, long life and good elasticity, suitable for the complicated structure,without damage to the surface of the workpiece, eliminate the stress and improve the fatigue life of the workpiece.

High cost performance
Compared to glass beads, it has higher cleanliness, can prolong the service life 30-50 times. Compared to steel beads, it has superior smoothness, can prolong life 3-5 times. It ‘s also recyclable,and can reduce the refueling times, improve working efficiency.

Environmental protection
Not easy to break during sandblasting process, no dust, clean, and no hidden danger of silicosis, it is harmless to the human body.

Application of ceramic beads



Sandblasting finish for medical instruments

Medical Sandblasting can be applied to wide range of materials: Aluminum, Titanium, Stainless Steel, Nitinol, Inconel, Polypropylene, etc.

Medical Sandblasting applicable for below devices: Surgical Instruments, Needles, Vascular Stents, Implantable Devices, Implant, Medical Molding, etc.


Applicable equipment

  • Surface Preparation Systems.
  • Shot Blast Cleaning Equipments
  • Sand Blasting machines.
  • Shot Peening Equipments.
  • Air Blast Equipments.
  • Wheel Blast Equipments.
