• High Strength Ceramic Blasting Media Zirnano Shot Peening Z100 - Z850 For Automotives Inustry
  • High Strength Ceramic Blasting Media Zirnano Shot Peening Z100 - Z850 For Automotives Inustry
High Strength Ceramic Blasting Media Zirnano Shot Peening Z100 - Z850 For Automotives Inustry

High Strength Ceramic Blasting Media Zirnano Shot Peening Z100 - Z850 For Automotives Inustry

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: Z100-Z850

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Bead Blasting Product Name: Zirconia Shot Peening
Usage: Shot Peening Shot Peening Effect: Small Deformation
Bulk Density: 2.3g/cm3 Vicker Hardness: 700 HV
Shape: Solid Round Ball Energy Consumption: Low
High Light:

abrasive blasting media

,

bead blasting material

Product Description

High Strength Ceramic Blasting Media Zirnano Shot peening Z100-Z850 for Automotives Inustry

1. Product Description of Ceramic Shot Peening

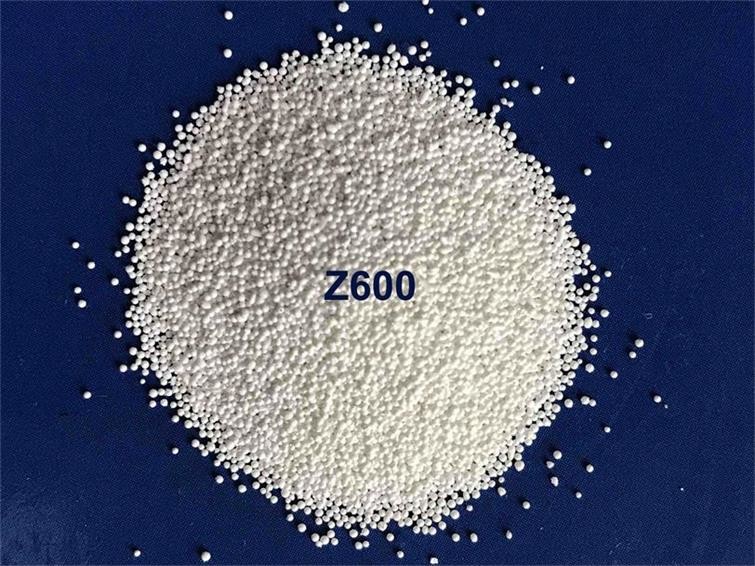

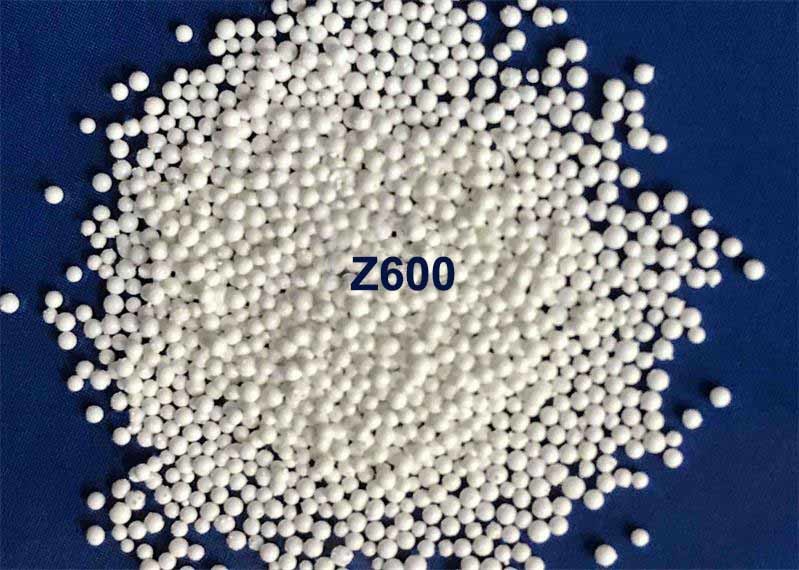

Ceramic bead is also called as zirconia bead,it selects the high quality zirconium sand

as raw materials,fused in an electric furnace under high temperature over 2000 degrees,then made

into different micro beads by special technology,then screened,inspected,packed strictly according

to the related product standards.

Ceramic bead has wide particle size distribution,B20,B40,B60,B80,B100,B120,B170,B205,B400

is used as blasting media,while Z100,Z150,Z210,Z300,Z425,Z600,Z850 is used as shot peening

media. Different particle size has different applications.

2. The main Technical of Ceramic Shot Peening

Main Index of Ceramic Shot Peening
ZrO2 SiO2 Al2O3
60-66% 25-30% 7-13%
Vicker Hardness True Specific Gravity Bulk Density
≥700 HV ≥3.85 g/cm3 2.3g/cm3



Z100 Z150 Z210 Z300
100-150μm 150-210μm 210-300μm 300-425μm
Z425 Z600 Z850
425-600μm 600-850μm 850-1180μm



3. Product Features of Ceramic Shot Peening:

Fine microstructure & Low Break Down Rate

Ceramic bead contains 62-66% ZrO2, 25-30% SiO2& 7-13% Al2O3,the special chemical composition provides

the fine microstructure,its solid round shape decides its good elasticity,it can be rebounded in multi-angles in

the shot peening process,not easy to be break down in the long shot peening process.



Outstanding peening effect &Uniform Surface Finish

Ceramic bead has high hardness and impact resistance, when rebounded in the shot peening process,the high

energy will be transferred at the impact point on the metallic substrate,improving the peening effect and it will

also preserve the integrity of the peened surface with smooth and uniform surface finish



High Effciency and Long service life

Ceramic bead is not easy to be break down,people do not need to refuel the new beads frequently, its service

life has prolonged to be 20-30 times compared with the one of glass bead, even the broken ceramic bead will

still maintain its original round shape and performance,it will save the refuel time and improve the shot peening

efficiency.



No hidden danger of Silicosis

Little dust generated in the shot peeningprocess,then the worker are able to escape from the hidden danger of

silicosis, working in one clean and bright working condition.

4. Main Application of Ceramic Shot Peening:

Ceramic bead is especially suitable for shot peeing in the production of metal parts and the shot peening of ligh

alloy products, it will shape or straighten flat metallic parts by deflection effect,which is called as peen forming

technology, widely used in aviation,ships, automotives industry.

Ceramic bead peening form will greatly reduces the weight of treatment such as landing gears,crackshafts in

airplanes and automotives industry.

High Strength Ceramic Blasting Media Zirnano Shot Peening Z100 - Z850 For Automotives Inustry 0

5. Applicable Equipment:

Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting Room

6. What we will provide for you?

Products in good quality and stable performance

Good services before & after sales,professional technical support

More competitive price,quick delivery
