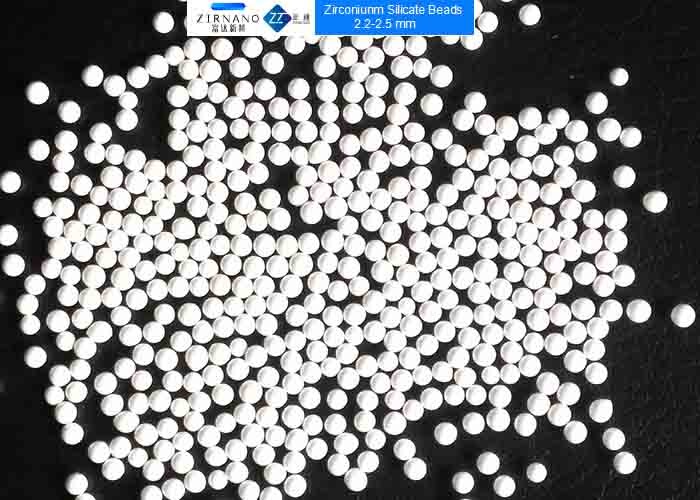

• 65 Zirconia Ceramic Grinding Media , 2.2 - 2.5 Mm Ceramic Grinding Balls For Dispersion
65 Zirconia Ceramic Grinding Media , 2.2 - 2.5 Mm Ceramic Grinding Balls For Dispersion

65 Zirconia Ceramic Grinding Media , 2.2 - 2.5 Mm Ceramic Grinding Balls For Dispersion

Product Details:

Place of Origin: Shanxi
Brand Name: Fuda
Certification: ISO9001&14001
Model Number: 0.1-50mm etc

Payment & Shipping Terms:

Minimum Order Quantity: 25 KG
Price: Negotiation
Packaging Details: 25kg drum+ pallet, ton bag
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T
Supply Ability: 1000mt per year
Get Best Price Contact Now

Detail Information

Product Name: 65 Zirconia Beads Usage: Grinding &dispersion
Material: 65% ZrO2 Hardness: ≥700 HV
Production Process: Sintering Bulk Density: ≥2.5g/cm3
High Light:

grinding media balls

,

ceramic grinding balls

Product Description

65 Zirconia Beads Ceramic Grinding Media Zirconium Silicate Beads for Ultra-fine Dispersion

1. Product Description of 65 Zirconia Beads Ceramic Grinding Media

Zirconium Silicate Beads is one kind of sintered beads,it is solid beads from the inside to outside,

there is no problems of bad roundness,large pores etc compared with the one of fused beads

(Zirconia Ceramic Blasting media).

Zirconium Silicate Beads has at least 65% ZrO2,then it is also called as 65 zirconia.

There is also one kind of 95 ziconia beads,which  is different from the 65 zirconia,both are suitable for

grinding media  in various industries.



Here we make a simple comparasion between 65 zirconia beads and 95 zirconia beads as below:

Item 65 Zircona Beads 95 Zirconia Beads
Chemical Index ZrO2 ≥65%
SiO2 25-30%
Others ≤1.0%
ZrO2 ≥95%
Y2O3 ≥4.5%
Others ≤0.5%
Mohs Hardness 8 Mohs 9 Mohs
True Specific Gravity ≥4.0g/cm3 ≥6.0 g/cm3
Bulk Density ≥2.5g/cm3 ≥3.7g/cm3
Wear Rate Per Ton 0.03kg/h 0.01kg/h
Particle Size Φ0.1-10mm etc. Φ0.1-50mm etc.
Usage Grinding of Low or Medium
Viscosity slurry and slurry sentitive to heat
Grinding of High Viscosity and High Hardnes with zero pollution



Compared with 95 Yttrium stabilized zirconia beads ,65 zirconia Beads has the characteristics of lower

density,Which is suitable for grinding of low and medium viscosity slurry,it is also applicable to every type

of grinding machines.

In addition, It also has price advantages then the 95 zirconia beads.



2. Avilable Particle Size of Zirconium Silicate Beads



Particle Size of Zirconium Silicate Beads
0.1mm,0.2-0.4mm 0.4-0.6mm 0.6-0.8mm,0.8-1.0mm,1.0-1.2mm,
1.2-1.4mm,1.4-1.6mm,1.6-1.8mm,1.8-2.0mm,2.5-3.0mm ,3.0-3.5mm
4mm,5mm,6mm,7mm,8mm,10mm etc.
Special products can be customized



3. Main Applications of 65 Zirconia Beads Ceramic Grinding Media

Zirconium silicate beads is suitable for grinding and dispersion of large-capacity minerals, such as CaCO3,

Kaolin etc.

Zirconium silicate beads is suitable for grinding of pigment,dye,paint,ink,coating,pesticide as well as the

metal minerals.

4. Equipment Applicable:

Horizontal sand mill

Vertical sand mill

Basket mill

Ball mill

Vibration mill

Sand blasting machine

5. Product Package of 95 Zirconia Beads Ceramic Grinding Media:

65 Zirconia Ceramic Grinding Media , 2.2 - 2.5 Mm Ceramic Grinding Balls For Dispersion 0

6. Why Choose Us?

Professional manufacturer,Providing good products with stable quality & favorable price;

Equipped with the most advanced production line and testing equipments,certificatd by

ISO9001&14001;

Products has been exported to USA,South Korea,Vietnam,Japan etc.
