Tilting Furnace Barmac Fused Aluminum Oxide High Purity Trigonal Crystal System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGTONG |
| Certification: | ISO9001, ISO14001 |
| Model Number: | F12#-F220# |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 MT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs bags+Ton bag or pallet, 25mt/20'GP usually |
| Delivery Time: | 8-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000mt per year |
|
Detail Information |
|||
| Material: | Brown Aluminium Oxide Al2O3 | Crystal Form: | Trigonal Crystal Sytem |
|---|---|---|---|
| Color: | Brown | Hardness: | Vickers Harness: 2100 HV Mohs: 9 |
| Bulk Density: | F12#-F220# 1.98-1.68g/cm3 | True Specific: | 3.97g/cm3 |
| Package: | 25kgs Bags +Ton Bag Or Pallet | Chemical Index: | Al2O3 95%min. SiO2 1%max. Fe2O3 0.3%max. TiO2 2.0-2.8% |
| Usage: | ABV For Grinding Wheels, ABR For Cutting Discs | Port Of Loading: | Tianjin, China |
| High Light: | white fused alumina,chemical grade alumina |
||
Product Description
TILTING FURNACE BARMAC BROWN FUSED ALUMINA ABV, ABR
Brown fused alumina is a kind of artificial corundum, with Al2O3 95%Min. HS code: 2818101000
By application it can be divided into:
- F sand for Bonded Abrasives, sandblasting, polishing
- P sand for coated Abrasives
- Section sand for refractory
Then F sand can be divided into:

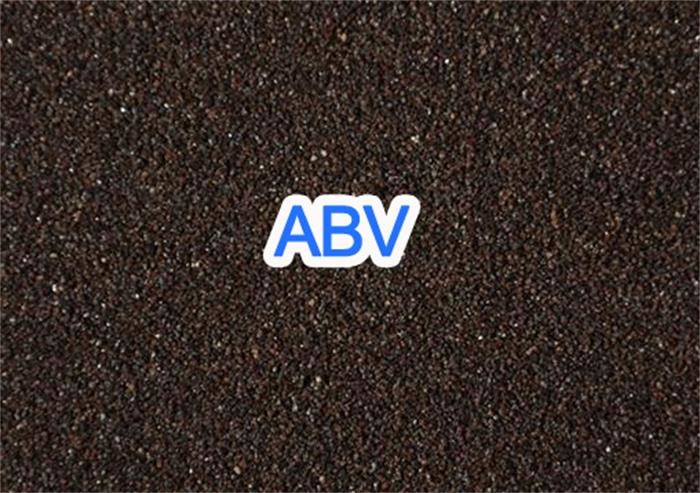

- ABV-Abrasive for Bonded Vitrified
Feature: Higher TiO2
The grinding wheels produced by ABV with blue color, no reticulate crack, high grinding efficiency

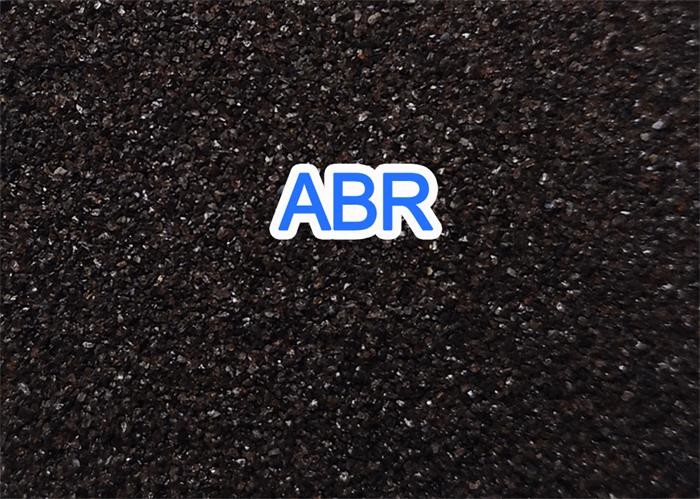

- ABR- Abrasive for Bonded Resin
High toughness, good self-sharpness, super grinding capacity, the cutting discs produce by ABR is of great cutting efficiency
- Blasting media
High bulk density, no free silica, large specific gravity, good toughness, is an ideal "environmental" type sand blasting material, widely used in aluminum parts, copper work piece, precision molds and other fields;
| Application | Size | Main Chemical Index % |
Magnetic Materials % |
||||
| Al2O3 | Fe2O3 | SiO2 | TiO2 | ||||
|
Abrasives/ Sandblast |
F | 4#-80# | ≥95.3 | ≤0.3 | ≤1.0 | ≤2.8 | ≤0.04 |
| 90#-220# | ≥95.0 | ≤0.02 | |||||
| P | 8#-80# | ≥95.3 | ≤0.2 | ≤1.2 | ≤2.8 | ≤0.04 | |
| 100#-220# | ≥94.5 | ≤0.02 | |||||
| Refractory | Section sand | 0-1mm 1-3mm 3-5mm 5-8mm 8-12mm | ≥95.3 | ≤0.3 | ≤1.0 | ≤2.8 | - |
|
25-0mm 10-0mm 50-0mm 30-0mm |
≥95.5 | ≤0.3 | ≤1.0 | ≤2.8 | - | ||
| BFA Crude for Abrasive |
Fine powder |
180#-0 200#-0 320#-0 | ≥94.0 | ≤0.4 | ≤1.0 | ≤3.0 | - |
- 1. Bonded abrasives
Vitrified Bonded abrasives and resin bonded abrasives. Like grinding wheels, cutting discs, etc.
- 2. Coated abrasives
Coated abrasives like sand paper, sand rolls, flap discs, etc;
- 3. Sand blasting
Shoe molds blasting, decontamination, descaling, cleaning, pretreatment, matte finish, etching art, deburring, stress relief, etc.
- 4. Hydraulic cutting
Cutting of petroleum (natural gas) pipelines, steel and other components
- 5. Refractories, castables, refractory bricks
Advanced refractory materials, castables, refractory bricks, refractory bricks, ramming materials, skateboards, steel sliding nozzles, ladle, furnace linings, smelting rare metals, special alloys, ceramics, linings for ironmaking blast furnaces ( Wall and tube);
Why Choose us?
1) 20 years abrasive industry experiences
2) Direct Factory supply & Fixed abrasive sources
3) On-site inspection in factory for each shipment
4) Samples tests each lot in Zhengzhou Research Institute for Abrasives& Grinding Co., Ltd
Our Brown fused alumina grit has been exported to Japan, India, Israel, Russia, Poland etc.
Pls send me email to get Brown fused alumina datasheet /samples and quotation…
