Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Zirconia Beads Usage: Metal Shot Peening
Specification: B20 Particle Size: 0.600-0.850mm
Bulk Density: ≥2.3g/cm3 Processing Method: Melting
High Light:

abrasive media blasting

,

ceramic cleaning media

Product Description

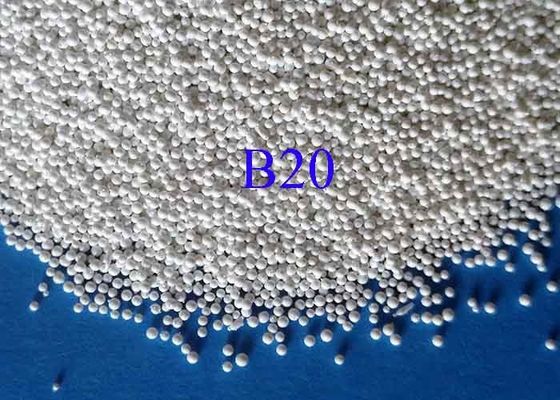

High Strength Ceramic Blasting Media Zirconia Beads B20 for Metal Surface Cleaning
1. Product Description
Ceramic Blasting Media is one kind of zirconia beads,it contains 60-66% ZrO2,which selects thezirconium sand as
main materials,then fused under high temperature.
Generally speaking,there are the other three kinds of ceramic bead according to their different content
of ZrO2, 65 zirconia beads (65% ZrO2),80 Zirconia Beads(80% ZrO2) ,95 Zirconia Beads (95% ZrO2).
2. The Comparation between different Ceramic Blasting Beads

Item

Ceramic Blasting
Beads

65 Zirconium
Silicate Beads

80 Zirconia
Beads

95 Zirconia Beads
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
ZrO2 ≥65%
SiO2 25-30%
Others ≤1.0%
ZrO2 ≥80%
SiO2 ≥10%
Al2O3≥9.0%
ZrO2 ≥95%
Y2O3 ≥4.5%
Others ≤0.5%
Mohs Hardness 8 Mohs 8 Mohs 9 Mohs 9 Mohs
True Specific Gravity ≥3.85 g/cm3 ≥4.0g/cm3 5.2g/cm³ ≥6.0 g/cm3
Bulk Density ≥2.3g/cm3 ≥2.5g/cm3 3.2g/cm³ ≥3.7g/cm3
Particle Size 0.04-0.85mm Φ0.1-10mm etc. Φ0.6-2.2mm etc. Φ0.1-50mm etc.
Usage Blasting Media

Grinding of Low or
Medium
Viscosity slurry

Grinding of High
Viscosity Slurry

Grinding of High
Viscosity and High
Hardnes with zero
pollution


Seen from the above chart,ceramic beads has the lower bulk density and true gravity as well as  different chemical
composition compared with the other three ceramic beads. Its unique features makes it more applicable for one blasting
media.
3. Specification of Zirconia Beads Ceramic Blasting Media

Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized

4. Product Features of
High Grinding Effect
No Ferrous Contamination to the treatment surface
Low Abrasion rate
More concentrated particle distribution
Consistent blasting effect
No dust generation and no hidden silicosis danger

5.Main Application of Zirconia Beads Ceramic Blasting Media
Ceramic Beads Blasting has various particle specification from B20 to B505,it will meet the different
blasting purpose as below:
 B20&B30  for metal surfacce peening to strengthen its anti-fatigue life.
B40 for cleaning the glass-making molds,tire molds,tie casting etc.
B60 for the pipeline inner and outer wall blast cleaning;
B120 for the surface finish of golf club or medical instruments;
B170 for sandblasting the metal surface of 3C products;
B205 for metal surface finishing of light metal such as such as aluminium alloy,titanium alloy and stainless
steel parts.

5. Product Package of Zirconia Beads Ceramic Blasting Media:


2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
High Strength Ceramic Microbeads , Metal Surface Cleaning B20 Zirconia Blasting Media 0























6. Why Choose us?
Professional Manufacturers of Zirconia Ceramic Beads;

Stable quality and good after-sales service;

Main supplier of Foxconn,Samsung etc.
