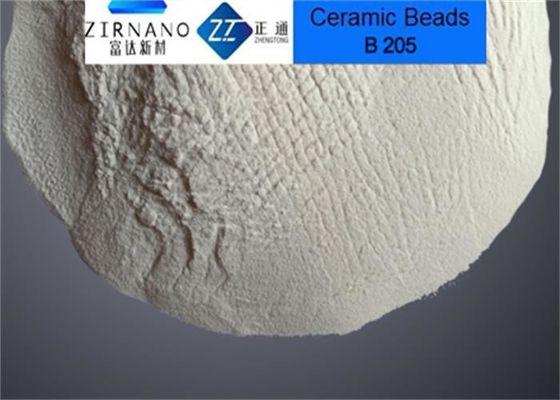

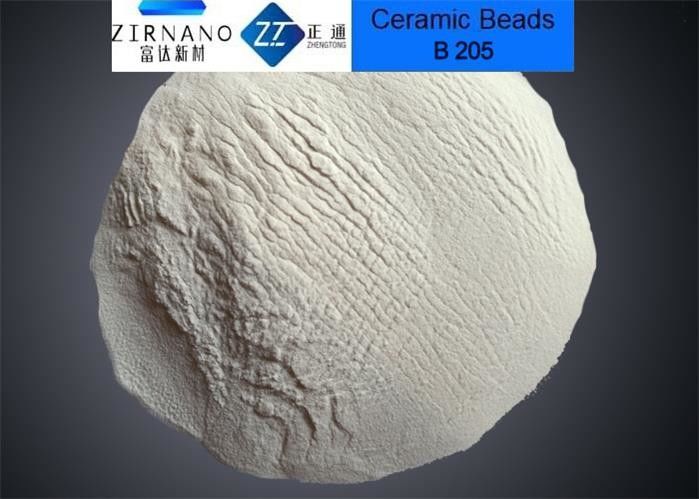

No Ferrous Ceramic Beads Zirconia Blasting Media B205 for 3C metal surface finish
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet |
| Delivery Time: | 3-10 days depending on the order quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200mt per month |
|
Detail Information |
|||
| Product Name: | Ceramic Beads | Usage: | 3C Metal Surface Finish |
|---|---|---|---|
| Specification: | B205 | Particle Size: | 0.000-0.063mm |
| Process: | Melting | Vicker Hardness: | 700HV |
| High Light: | bead blasting material,ceramic bead blasting media |
||
Product Description
No Ferrous Ceramic Beads Zirconia Blasting Media B205 for 3C metal surface finish
1.Product Description of Ceramic Beads Zirconia Blasting Media
Ceramic Beads also named as zirconia blasting beads,the main chemical composition is about 62-66%
ZrO2,25-30% SiO2,7-13% Al2O3,it selects the zirconium sand as main materials, melting in an electric
furnace,then made by special technology to different particle sizes.
It has the characteristic of high hardness,high toughness,good spherical, high strength,low breakdown
rate,no silicosis danger. Then it is widely used as one blasting media to replace the glass beads.
2.The Comparation between Ceramic Beads,Glass Beads,Steel Beads
| Item | Ceramic Blasting Beads | Glass Beads | Steel Beads |
| Chemical Index | ZrO2 62-66% SiO2 25-30% Al2O3 7-13% |
SiO2>65%,Na2O<14.0% MgO>2.5% |
C 0.8-1.2% Si 0.45-1.50% Mn 0.60-1.20% |
| Vickers Hardness | ≥700 HV | ≥560HV | ≥700 HV |
| True Specific Gravity | ≥3.85 g/cm3 | ≥2.5g/cm3 | ≥7.8 g/cm3 |
| Particle Size | 0.04-0.85mm | 0.045-0.85mm | 0.05-0.60mm |
| Usage | Blasting Media | Blasting Media | Blasting Media |
| Ferrous Contamination | No Ferrous | No Ferrous | Ferrous |
| Dust Pollution | Little | Large | Medium |
| Recyclable Times | Multiple | One time or twice | Multiple |
| Power consumption | Low | Low | High |
| Service Life | Long | 1/25 of ceramic beads | Long |
| Equipment Wear Rate | Low | Low | High |
| Blasting Effect | High finish No discoloration |
High finish White discoloration |
Low finish Black discoloration |
Seen from the above chart,ceramic beads has long service life,which is about 25 times than the one
of glass beads,it is one clean blasting media with low dust,which is able to replace the glass beads where
clean working condition is concerned.
Ceramic beads has no ferrous contamination,which is able to be applied where ferrous contamination
is not allowed.
3. Specification of Zirconia Beads Ceramic Blasting Media
| Particle Size | |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized | |
3.Main Application of Blasting Ceramic Beads
Ceramic Beads B205 is Widely used in 3C products’surface finishing treatment such as the metal or
plastic surface or its built-in parts of computer,mobile phone,camera etc.;
In addition,ceramic beads are also used in other applications:
B20 & B30 for metal surface shot peening
B40 for cleaning the glass molds
B60 for the pipeline inner and outer wall blast cleaning
B120 for the surface finish of golf club or medical instruments
B170 used for sandblasting the metal surface and built-in parts of iphone,ipad,ipod;
4. Applicable Equipment:
Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting Room
5. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
6.Why Choose us?
Professional Manufacturers of Zirconia Ceramic Beads;
Stable quality and good after-sales service;
Main supplier of Foxconn,Samsung etc.
