Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, IS014001
Model Number: 0.1mm-50mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kgs
Price: Negotiation
Packaging Details: 25kgs barrels+Pallet
Delivery Time: 5-20 days
Supply Ability: 500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Zirconia Milling Beads Color: Shiny White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Chemical Index: ZrO2 95%Min. Port Of Loading: Tianjin/Qingdao, China
Package: 25kgs Barrels+Pallet Application: Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc
High Light:

zirconia milling media

,

zirconia ceramic balls

Product Description

95 Yttria stabilized zirconium oxide grinding balls density 6.0g/cm3 Size 4-50mm



  • DESCRIPTION



Zirconium oxide balls are mainly used for ultra-fine grinding and dispersion of high viscosity and high hardness materials, and can achieve zero pollution.



High grinding efficiency: Due to the high density of zirconium oxide balls, it has a higher grinding kinetic energy at the same moving speed, and the grinding efficiency is 2-3 times higher than that of ordinary ceramic beads. You can get better results.

Impact resistance, low wear: Due to the high content of ZrO2, high density, high toughness, low abrasion, no broken ball, peeling, etc., the dispersion of the abrasive is less polluted. The abrasion is 4-10 times lower than that of ordinary ceramic beads.

Good stability: good stability, acid and alkali corrosion resistance.

Good fluidity: good circularity, smooth surface, no pores, reflective gloss, easy to clean. The fluidity between the microbeads and the microbeads is good, and the wear on the equipment is small.

Low cost of use: Zirconium oxide ball wear is the lowest in all grinding media. Zirconium oxide balls are high-strength, inert, hard, perfect, fine spherical particles.



Application in coatings can reduce costs, increase solids content, provide performance and improve process operating conditions.

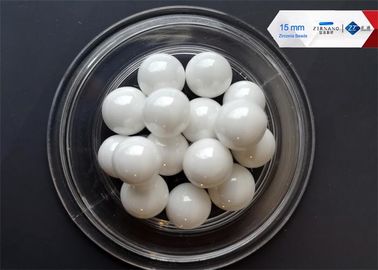

95 Yttria stabilized zirconium oxide grinding balls 15mm



95 Yttria Stabilized Zirconium Oxide Balls 1100HV Harness 0.5ppm / H Abrasion Loss 0

95 Yttria Stabilized Zirconium Oxide Balls 1100HV Harness 0.5ppm / H Abrasion Loss 1

Manufacturing process: Sintering Method



Chemical composition ZrO2 95% Min. Y2O3 4.5% Min
Density 6.0g/cm³ Min.
Specific density 3.7g/cm³ Min.
Moh's hardness 9
Impact Strength 2.0KN (2mm)
Compressive Strength 5500MPa
Modulus of Elasticity 200Gpa
Thermal Expansion Coefficient 9.6 (20-400℃ )
Compressive strength 2300KN (Φ2.0mm)
Package 25kg/barrel





SIZES Φ MM
0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8
0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8
1.8-2.0 2.0-2.2 2.2-2.4 2.4-2.6 2.6-2.8
2.8-3.0 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50



  • PRODUCTION PROCESS



95 Yttria Stabilized Zirconium Oxide Balls 1100HV Harness 0.5ppm / H Abrasion Loss 2

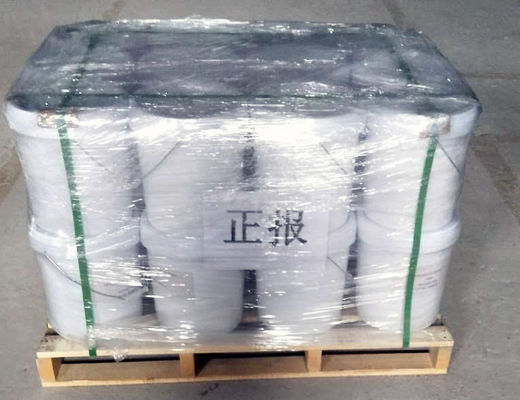

  • PACKAGE
  • 25KGS BARRELS+PALLET







95 Yttria Stabilized Zirconium Oxide Balls 1100HV Harness 0.5ppm / H Abrasion Loss 3



  • APPLICATION
  •
  • Pigments and dyes: dispersing and grinding of titanium pigment, carbon black, inorganic pigment like iron oxide red; organic pigments like Phthalocyanine blue, permanent violet.

  • Paints and coatings materials: Anti-corrosion industrial paint, plastic paint, emulsion paint, printing ink, ink-jet ink, paper coating material, tape and disk coating.

  • Pesticide: pesticides, herbicides, antiseptic, seed coating agent.



  • APPLICABLE EQUIPMENT
  •
  • Due to the high compressive strength, zirconium balls are preferably added during production grinding. To improve the dispersion effect sand mill, ball milling, and rolling can be used. Compared to the use of other fillers of the same or lower hardness, the use of zirconium oxide balls is less subject to wear and tear on the equipment.



  • OUR SERVICE



1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated factory.

2. Treat all clients with sincerity, no imaginary higher price.

Even if you’re the first time to buy and know little about the Zirconia grinding beads, you can get the same price as the experienced clients.

3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.

4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.

5. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.

6. Customized/OEM available, size, shape, Packages could be made against customer’s requirements.
