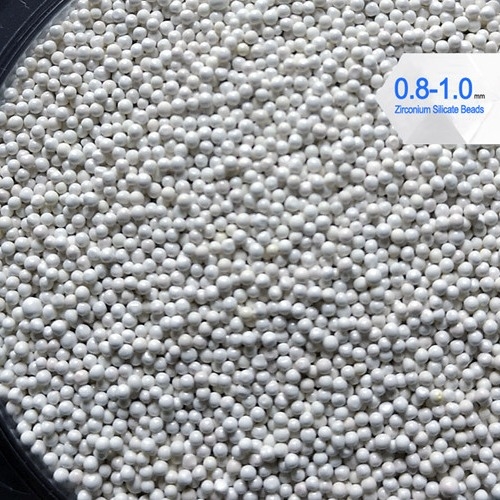

900 HV Zirconium Silicate beads 0.8-1.0mm 4g/cm3 Density For Printing Ink grinding
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | 0.6-0.8mm~10mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |

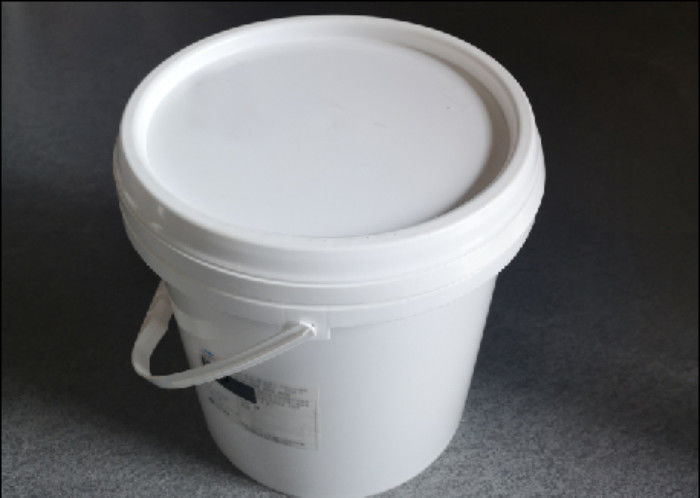

| Packaging Details: | 25kgs barrels+pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity: | 65 Zirconium Silicate Grinding Beads | Color: | White Or Milky White |
|---|---|---|---|
| Chemical Index: | ZrO2 65%min. SiO2 30-25% | Bulk Density: | 2.5g/cm3 |
| True Density: | 4.0g/cm3 | Hardness: | 900 HV |
| Impact Strength: | 1.1KN | Package: | 25kgs Barrels+pallet |
| High Light: | zirconia sintering beads,zirconium silicate media |
||
Product Description
900 HV Zirconium Silicate beads 0.8-1.0mm 4g/cm3 Density For Printing Ink grinding
Zirconium Silicate Grinding Beads are sintered from imported zirconium silicate powder and formulated with strict process controls, show high crushing strength and fracture durability, leading to higher wear resistance, and longer working life.
Moreover, these grinding media are resistant to rust and corrosion, so it will not take pollution to the materials which are ground or dispersed.
Zirconium Silicate beads grinding media are with the low price and high level of efficiency, available in different fractions ranging from 0.6 mm to 10 mm.
Manufacturing process: Sintering Method
| ZrO2 | SiO2 | Other |
| 65% Min. | 30-35% | 1.0 % Max. |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.5g/cm3 | 4.0g/cm3 | 900 HV |
Size Φ mm
| 0.6-0.8 | 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.5-3.0 | 3.0-3.5 | 4 | 5 |
| 6 | 7 | 8 | 10 | Special sizes can be customized. | |
· Homogenous microstructure--Minimal fractured fragments
· High density and high hardness--Better milling efficiency
· High wear resistance--Longer working life
· High sphericity--Longer mill life
Printing Inks
- Ink for paper, metal, plastic, cloth, etc.
- Ink for embossing, lithography, gravure, photogravure, screen printing, etc.
Gravure ink: generally use pin (5-50 L) or disc sander (10-100 L) sand mills.
Rotary offset printing inks: generally use vertical bar type (5-130 L) or horizontal disc type sander (60-500 L), and super high viscosity sheet-fed ink production often use high energy density conical sander or three roller machine.
Inkjet inks (inks and pigment solvents): generally use high-energy density pin type (graphic or vertical) and centrifugal turbine rotor.
- Open vertical sand mills,
- Closed vertical sand mills
- Traditional horizontal sand mills
- Turbine horizontal sand mills
- Special-shaped cylinder sand mills.
- Profiled disc sand mills
