High Purity Zirconia Grinding Beads , Battery Material Zirconia Ceramic Balls
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 0.1-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kg drum+Pallet |
| Delivery Time: | 3-14days depending on the order quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000MT per Year |
|
Detail Information |
|||
| Product Name: | Ziconia Grinding Media, Ziconium Oxide Beads | Usage: | Battery Dispersion |
|---|---|---|---|
| Vicker Hardnes: | ≥ 1100 HV | True Gravity: | ≥6.0 G/cm3 |
| Bulk Density: | ≥3.7 G/cm3 | Specification: | 0.1-50mm |
| High Light: | zirconium oxide balls,zirconia ceramic balls |
||
Product Description

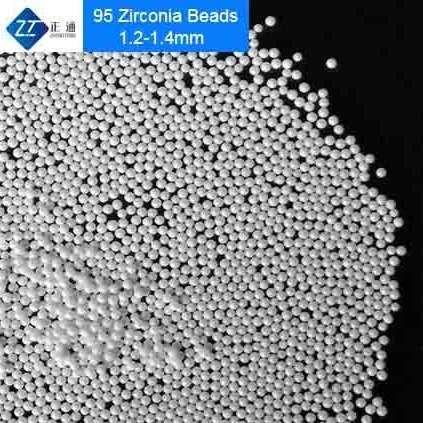

High Purity 95 Ziconia Grinding Media Ziconium Oxide Beads for Battery material
1. Description of 95 Ziconia Grinding Media Ziconium Oxide Beads
Zirconia Grinding Beads selected the mircon or sub-nanometer zirconia powder as raw material,then made
by special sintering process. The main chemical composition of zirconia grinding media is 95% zirconia,then
it is also named as 95 zirconia,Yttrium stablized zirconia beads.
It is different from the 65 zirconium silicate beads and ceramic blasting media, it is the most durable ceramic
beads at present,widely used in grinding and dispersion applications.
2. Main Technical Index of 95 Ziconia Grinding Media Ziconium Oxide Beads
| Commodity | Typical Chemical Index | Main Physical Index |
| Ziconia Grinding Media | ZrO2 ≥95% | True Gravity ≥6.0g/cm3 |
| Y2O3 ≥4.5% | Bulk Density ≥3.7g/cm3 | |
| Others ≤0.5% | Vicker Hardness ≥1100 HV | |
| sintering process | compressive strength ≥2.0KN Φ2mm |
| Zirconia Grinding Beads Specification | |||
| Φ0.1-0.2mm | Φ0.2-0.3mm | Φ0.3-0.4mm | Φ0.4-0.6mm |
| Φ0.6-0.8mm | Φ0.8-1.0mm | Φ1.0-1.2mm | Φ1.2-1.4mm |
| Φ1.4-1.6mm | Φ1.6-1.8mm | Φ1.8-2.0mm | Φ2.0-2.2mm |
| Φ2.2-2.4mm | Φ2.4-2.6mm | Φ2.6-2.8mm | Φ2.8-3.0mm |
| Φ4mm | Φ5mm | Φ6mm | Φ7mm |
| Φ8mm | Φ9mm | Φ10mm | Φ12mm |
| Φ15mm | Φ17mm | Φ20mm | Φ25mm |
| Φ30mm | Φ40mm | Φ45mm | Φ50mm |
| Special Specification can be customized | |||
3. Main Features of 95 Ziconia Grinding Media Ziconium Oxide Beads
- Good spherical gloss
- High density
- High hardness
- Low abrasion rate
- High Purity
- No Contamination to the surface of treatment
- Resistant to acid and alkila
- High Grinding Efficiency
4. Main Application of 95 Ziconia Grinding Media Ziconium Oxide Beads
Zirconia Grinding Media is widely used for grinding and dispersion the slurry of pigment,coating,
ink,paint, dyes, Medicine,pesticides,food comestics.
Zirconia Grinding Media is also used for grinding titanium dioxide,Magnetic&rare-earth material,etc.
5. Products Package of 95 Ziconia Grinding Media Ziconium Oxide Beads
25kg drum+pallet,special packages can be customized.
6. FAQ
Q: What is the size in your products?
A: Our common size is 0.1mm-50mm. Special specification can be customized
Q: What is your terms of delivery?
A: FOB, CFR, CIF,DDU,FCA etc.
Q: Are you able to accept small quantity sample order before Formal Production?
A: Yes, of course.
Q: How long the goods will be prepared well after order placed?
A: Goods will be ready well 3-14 days after receiving the payment, it depends on the order
quantity and goods specifications.
