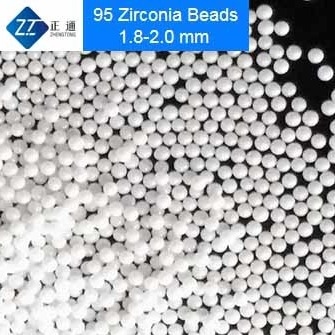

95 Zirconia Grinding Media Ceramic Beads High Strength For Electronic Ceramic Slurry Dispersion
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 0.1-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kg drum+Pallet |
| Delivery Time: | 3-14days depending on the order quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000MT per Year |
|
Detail Information |
|||
| Product Name: | Zirconia Grinding Beads Or Ceramic Beads | Usage: | Making Construction Ceramics |
|---|---|---|---|
| Mohs Hardnes: | ≥9 Mohs | True Gravity: | ≥6.0 G/cm3 |
| Bulk Density: | ≥3.7 G/cm3 | ZrO2: | ≥95% |
| High Light: | zirconium oxide beads,zirconia ceramic balls |
||
Product Description
High Strength 95 Zirconia Grinding Media Ceramic Beads for Making construction ceramics
1. Description of 95 Zirconia Grinding Media Ceramic Beads
Zirconia Beads is also named as 95% zirconia beads,Yttrium stablized beads.
It is selected the mircon or sub-nanometer zirconia powder as raw material,sintered by medium-high
temperture.It cotains about 95% zirconia, so it is also called as the 95 zirconia
It is the most durable grinding media compared with the alumina ball and zirconia silicate beads.
2. Main Technical Index of 95 Zirconia Grinding Media Ceramic Beads
- Typical Chemical Index
ZrO2 ≥95%
Y2O3 ≥4.5%
Others ≤0.5%
Sintering process
- Physical Index of Zirconia Beads:
True Gravity ≥6.0g/cm3
Bulk Density ≥3.7g/cm3
Vicker Hardness ≥1100 HV
Compressive strength ≥2.0KN Φ2mm
- Specifications:
Φ0.1-0.2mm, Φ0.2-0.3mm, Φ0.3-0.4mm
Φ0.4-0.6mm, Φ0.6-0.8mm, Φ0.8-1.0mm
Φ1.6-1.8mm, Φ1.8-2.0mm, Φ2.0-2.2mm
Φ2.2-2.4mm, Φ2.4-2.6mm Φ,2.6-2.8mm
Φ4mm, Φ5mm, Φ6mm, Φ7mm, Φ8mm,
Φ9mm,Φ10mm,Φ12mm,Φ15mm,Φ17mm,
Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,
Φ50mm etc.
3. Main Features of 95 Zirconia Grinding Media Ceramic Beads
- Higher hardness and Density
- Better wear resistance
- Higher Mechanical Strength
- Lower Abrasion loss
- Anti-acid alkali
- Higher thermal expansion rate
- Zero contamination to the treatment
4. Main Application of 95 Zirconia Grinding Media Ceramic Beads
- Grinding and dispersion for metallic minerals such as copper, silver, nickel, gold, Zinc etc.
- Grinding and dispersion for non-metallic minerals such as Calcium Carbonate, kaolin clay, titanium dioxide etc.
- Grinding and dispersion for pigments, coatings, paints, inks, dyes,cosmetic,medicine etc.
- Grinding and dispersion for magnetic materials,battery materials,electronic ceramic slurry.
- Making construction ceramics, refractory materials etc.
5. Products Package of 95 Zirconia Grinding Media Ceramic Beads
25kg drum+pallet,special packages can be customized.
6. FAQ
Q: What is the size in your products?
A: Our common size is 0.1mm-50mm. Special specification can be customized
Q: What is your terms of delivery?
A: FOB, CFR, CIF,DDU,FCA etc.
Q: Are you able to accept small quantity sample order before Formal Production?
A: Yes, of course.
Q: How long the goods will be prepared well after order placed?
A: Goods will be ready well 3-14 days after receiving the payment, it depends on the order
quantity and goods specifications.
