Low Abrasion Rate Zirconia Milling Media , Magnetic Materials Zirconium Oxide Beads
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 0.1-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kg drum+Pallet |
| Delivery Time: | 3-14days depending on the order quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000MT per Year |
|
Detail Information |
|||
| Product Name: | Zirconia Grinding Beads Or Ceramic Ball | Usage: | Grinding And Dispersion |
|---|---|---|---|
| Vicker Hardness: | ≥1100 HV | Mohs Hardness: | >9 Mohs |
| True Gravity: | ≥6.0 G/cm3 | Bulk Density: | ≥3.7 G/cm3 |
| ZrO2: | ≥95% | Y2O3: | ≥4.5% |
| High Light: | zirconium oxide beads,zirconia ceramic balls |
||
Product Description

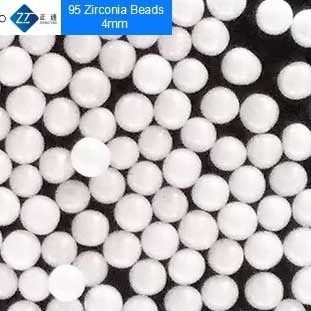

Low Abrasion Rate Zirconia Grinding Beads Ceramic Ball for Magnetic Materials
1. Description of Zirconia Grinding Beads Ceramic Ball
Zirconia Grinding Bead is also called Zirconia Beads,95 Yttrium stablized beads or Zirconia ceramic ball or
Zirconium bead . It owns the good spherical ,the gloss of pearl and smooth surface ,it is the most durable
and efficient grinding media at present. It is more suitable for high velocity operations and wet grinding
operations.
2. Main Technical Index of 95 Yittrium Stabilized Zirconia Grinding Beads
| Commodity | Typical Chemical Index | Main Physical Index |
| Zirconia Grinding Beads | ZrO2 ≥95% | True Gravity ≥6.0g/cm3 |
| Y2O3 ≥4.5% | Bulk Density ≥3.7g/cm3 | |
| Others ≤0.5% | Vicker Hardness ≥1100 HV | |
| sintering process | compressive strength ≥2.0KN Φ2mm |
| Particle Size |
| Φ0.1-0.2mm,Φ0.2-0.3mm,Φ0.3-0.4mm,Φ0.4-0.6mm,Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm, |
| Φ1.2-1.4mm,Φ1.4-1.6mm,Φ1.6-1.8mm,Φ1.8-2.0mm,Φ2.0-2.2mm,Φ2.2-2.4mm,Φ2.4-2.6mm, |
| Φ2.6-2.8mm,Φ4mm,Φ5mmΦ,6mm,Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ12mm,Φ15mm,Φ17mm, |
| Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,Φ50mmetc. |
| Special products can be customized |
3. Main Features of Zirconia Grinding Beads Ceramic Ball
- Low abrasion loss due to the unique yttria stabilized zirconia (YSZ)material system.
- Higher grinding efficiency due to zirconia’s higher density
- Most durable grinding material, reducing operational cost in the long run.
- Lower Wear rate substantially
- Acid and alkali resistant
- Good Spherical and smooth surface
4. Main Application of Zirconia Grinding Beads Ceramic Ball
- Magnetic materials such as iron and chrome based magnetic materials used for audio or video
- recording tapes etc.
- Electronic-grade ceramics such as ferroelectric, sensors etc,advanced structural ceramics
- Nano materials
- Pigments,Ink,Dye,Coating
- Medicine,Pesticides,Cosmetics etc.
5. Products Package
25kg drum+pallet,special packages can be customized.
6. FAQ
Q: What is the size in your products?
A: Our common size is 0.1mm-50mm. Special specification can be customized
Q: What is your terms of delivery?
A: FOB, CFR, CIF,DDU,FCA etc.
Q: Are you able to accept small quantity sample order before Formal Production?
A: Yes, of course.
Q: How long the goods will be prepared well after order placed?
A: Goods will be ready well 3-14 days after receiving the payment, it depends on the order
quantity and goods specifications.
