• Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand
Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand

Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand

Product Details:

Place of Origin: Henan, China
Brand Name: ZHENGTONG
Certification: ISO9001, ISO14001
Model Number: F12#-F220#

Payment & Shipping Terms:

Minimum Order Quantity: 1 MT
Price: Negotiation
Packaging Details: 25kgs bags+Ton bag or pallet, 25mt/20'GP usually
Delivery Time: 8-30 days
Payment Terms: L/C, T/T
Supply Ability: 10000mt per year
Get Best Price Contact Now

Detail Information

Material: Aluminium Oxide Al2O3 Product Name: Brown Fused Alumina
Crystal Form: Trigonal Crystal Sytem Color: Brown
Hardness: Vickers Harness: 2100 HV Mohs: 9 Bulk Density: F12#-F220# 1.98-1.68g/cm3
True Specific: 3.97g/cm3 Package: 25kgs Bags +Ton Bag Or Pallet
Chemical Index: Al2O3 95%min. SiO2 1%max. Fe2O3 0.3%max. TiO2 2.0-2.8% Cao 0.45% Max. Usage: For Bonded Abrasives Like Cutting Discm Grinding Wheels, Etc.
Port Of Loading: Tianjin, China Sample: 1 Kg For Free
High Light:

brown fused aluminum oxide

,

grit aluminum oxide

Product Description

BROWN ALUMINUM OXIDE GRITS FOR BONDED ABRASIVES



Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand 0

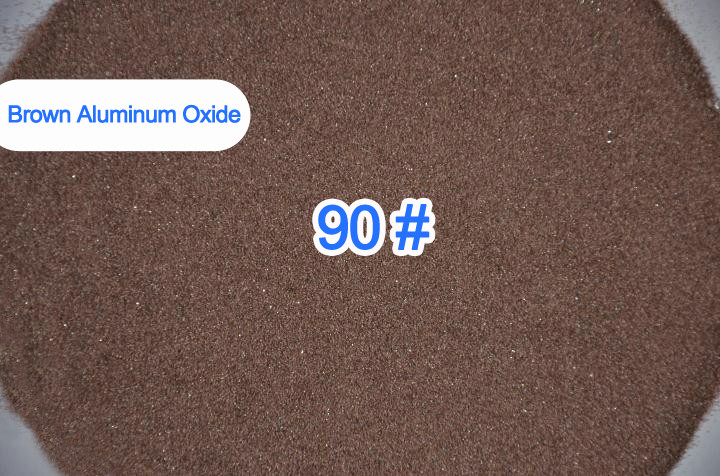

Brown aluminum oxide is made by fusion in an electric arc furnace from a mixture of bauxite, anthracite and iron scraps at high temperature. It has brown color, high hardness and great toughness. No rusty spot, greatly improved grinding efficiency, applicable to make high quality vitrified and resin bonded abrasives.

The brown aluminum oxide grits for vitrified boned abrasives simply called “ABV”, and the grits for resin bonded abrasives called “ABR”



Our production standard can be GB/T, also can be FEPA, JIS, ISO, etc.. according to clients’ requirements.

Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand 1



Commodity: Brown Fused Alumina

Production Type: Tilting Furnace, Barmac Crushing, Air Blow Cleaning

Chemical Index
Al2O3 SiO2 Fe2O3 TiO2 CaO
95%min. 1.0% max. 0.3% max. 2.0%-3.0% 0.45% Max.





Physical Index
Color Crystal Form True Specific Gravity Vickers Hardness Melting point
Brown Trigonal Crystal 3.97g/cm3 2100kg /mm2 2000 °C



Sizes-Grit & Bulk Density (g/cm3)
F12#   1.93-1.99 F14#   1.92-1.98 F16#  1.91-1.97 F20#  1.90-1.96 F22# 1.89-1.95
F24#   1.88-1.94 F30#   1.87-1.93 F36#  1.85-1.91 F40#  1.84-1.90 F46# 1.83-1.89
F54#   1.82-1.88 F60#    1.81-1.86 F70#   1.80-1.84 F80#  1.79-1.82 F90#  1.77-1.80
F100#  1.75-1.78 F120#  1.73-1.76 F150#  1.70-1.74 F180# 1.69-1.73 F220# 1.68-1.72
Sizes-Section sand
0-1mm 1-3mm 3-5mm 5-8mm 0-25mm
200mesh 325mesh Special sizes can be customized as per clients’ requirements



Supply Capacity

BFA grit: F12#-F220# for abrasives and sandblasting: 1000 mt per Month
BFA section sand 0-1mm, 1-3mm, 3-5mm, 200 mesh, 325 mesh for refractory: 1000 mt per Month

Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand 2

Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand 3



Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand 4



Brown Aluminum oxide grits especially F 20#, 24#, 30#, 36#, 46#, 60#, 70#, 80#

Is applicable for

  • Bonded abrasives

Vitrified Bonded abrasives and resin bonded abrasives. Like grinding wheels, cutting discs, etc.

With features: Abrasives made from Brown aluminum oxide usually have suitable color, good hardness, high toughness, suitable particle cross-section type and edge retention, and good grinding efficiency.

Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand 5

Why Choose us?

1) 20 years abrasive industry experiences

2) Direct Factory supply & Fixed abrasive sources

3) On-site inspection in factory for each shipment

4) Samples tests each lot in Zhengzhou Research Institute for Abrasives& Grinding Co., Ltd



Our Brown fused alumina grit has been exported to Japan, India, Israel, Russia, Poland etc.

Pls send me email to get Brown fused alumina datasheet /samples and quotation…

Tilting Furnace Brown Fused Alumina , Bonded Abrasives 80# Grit Aluminum Oxide Sand 6
