2.0 - 2.5 Mm Industrial Ceramic Beads , High Grinding Throughput 65 Zirconia Ceramic Ball Mill Media
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | 0.6-10mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kg drum+Pallet, 25kg Bag+Pallet,Ton Bag |
| Delivery Time: | 3-14days depending on the order quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000MT per Year |
|
Detail Information |
|||
| Product Name: | Zirconium Silicate Grinding Beads | Usage: | Slurry Dispersion |
|---|---|---|---|
| Vicker Hardness: | ≥900 HV | True Gravity: | ≥4.0g/cm3 |
| Shape: | Spherical | ZRO2: | ≥ 65% |
| High Light: | zirconia sintering beads,zirconium silicate media |
||
Product Description
High Grinding Throughput 65 Zirconia Beads Zirconium Silicate Grinding Media 2.5 - 3.0 mm
1. Product Description

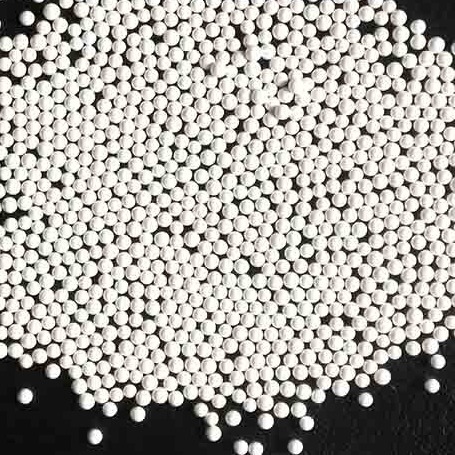

Zirconium Silicate Grinding Media are made from zircon sand with special sintering method.It contains at least
65% ZrO2,which is also named as 65 zirconia beads, widely used for grinding and dispersing the medium and
low viscosity slurries.
It is usually matched in high-speed mixing mill, sand mill, vibrating mill, and little breaking beads
under high speed running.
2. Main technical index of Zirconium Silicate Grinding Media
| Commodity | Typical Chemical Index | Main Physical Index |
|
Zirconium Silicate Grinding Media (Sinterred Process) |
ZrO2 ≥65% | True Gravity ≥4.0g/cm3 |
| SiO2 25-30% | Bulk Density ≥2.5g/cm3 | |
| Others ≤1.0% | Vicker Hardness ≥900 HV | |
| Sintering process | compressive strength ≥1.1KN (Φ2mm) |
| Particle Size | ||||||
| Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm,Φ1.2-1.4mm,Φ1.4-1.6mm | ||||||
| Φ1.6-1.8mm,Φ1.8-2.0mm,Φ2.5-3.0mm ,Φ3.0-3.5mm | ||||||
| Φ4mm,Φ5mm,Φ6mm,Φ7mm,Φ8mm,Φ10mm etc. | ||||||
| Special products can be customized |
3. Main Features of Zirconium Silicate Grinding Media
Good sphericity , and no air hole;
Smooth Surface , high density, no pollution to the slurry and few damage to the grinding equipment;
Good stability, acid resistance and alkali proof;
Lower abrasion rate and Higher grinding efficiency,Lower cost compared with the one of 95 zirconia
Beads.
4. Main Application of Zirconium Silicate Grinding Media
Grinding and dispersing media for titanium dioxide, pesticide, pigment, dye, Ink, paint, coating, etc.
5. Products Package
25kg drum+pallet, 25kg bag +pallet, ton bag,special packages can be customized.
6.Why Choose Us?
Professional manufacturer,Providing good products with stable quality & favorable price;
Equipped with the most advanced production line and testing equipments,certificatd by
ISO9001&14001;
Products has been exported to USA,South Korea,Vietnam,Japan etc.
