• ZrSiO4 Zirconium Silicate Beads Media 2.7 - 3.2 Mm Size Good Sphericity
ZrSiO4 Zirconium Silicate Beads Media 2.7 - 3.2 Mm Size Good Sphericity

ZrSiO4 Zirconium Silicate Beads Media 2.7 - 3.2 Mm Size Good Sphericity

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: 0.6-10mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kg
Price: Negotiation
Packaging Details: 25kg drum+Pallet, 25kg Bag+Pallet,Ton Bag
Delivery Time: 3-14days depending on the order quantity
Payment Terms: T/T, L/C
Supply Ability: 3000MT per Year
Get Best Price Contact Now

Detail Information

Product Name: Zirconium Silicate Grinding Beads Usage: Slurry Dispersion
Vicker Hardness: ≥900 HV True Gravity: ≥4.0g/cm3
Shape: Spherical ZRO2: ≥ 65%
High Light:

ceramic grinding media balls

,

zirconium silicate media

Product Description

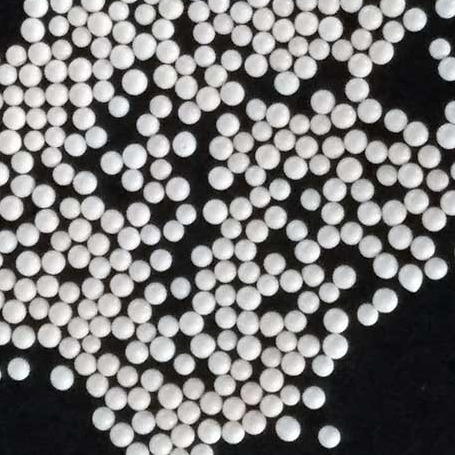

Good Sphericity Zirconium Silicate Beads ZrSiO4 Ceramic Grinding Media 0.6-0.8 mm



1. Description of Zirconium Silicate Beads



Zirconium silicate (ZrSiO4) Grinding Beads, is also called 65 zirconia bead,it is obtained from

zircon sand through a special sintering process.

It  can be matched in high-speed mixing mill, sand mill, vibrating mill, and little breaking beads

under high speed running.

ZrSiO4 Zirconium Silicate Beads Media 2.7 - 3.2 Mm Size Good Sphericity 0

2. Main technical index of Zirconium Silicate Beads

Commodity Typical Chemical Index Main Physical Index

Zirconium Silicate Beads

Ceramic  Grinding Media

(Sinterred Process)

ZrO2 ≥65% True Gravity ≥4.0g/cm3
SiO2 25-30% Bulk Density ≥2.5g/cm3
Others ≤1.0% Vicker Hardness ≥900 HV
Sintering process compressive strength ≥1.1KN (Φ2mm)



Particle Size
Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm,Φ1.2-1.4mm,Φ1.4-1.6mm
Φ1.6-1.8mm,Φ1.8-2.0mm,Φ2.5-3.0mm ,Φ3.0-3.5mm
Φ4mm,Φ5mm,Φ6mm,Φ7mm,Φ8mm,Φ10mm etc.
Special products can be customized



3. Main Features of Zirconium Silicate Beads



The special crystal structure and More concentrated particle size distribution offers lower abrasion

rate and better grinding quality;



Good sphericity provides better slurry fluidity and higher grinding throughput;



Smooth surface ensures little damage to the grinding equipment and easily to be washed when

change the slurry color;



Lower grinding cost compared with the 95 zirconia beads.



4. Main Application of Zirconium Silicate Beads



Zirconium Silicate Beads is widely used for dispersing the coating and paint slurry,such as emulsion

paint,printing inks,paper coating  etc.



In addition,it is also widely used as one grinding media for Pigment,dye, titanium dioxide,pesticide

etc.



5. Products Package

25kg drum+pallet, 25kg bag +pallet, ton bag,special packages can be customized.

ZrSiO4 Zirconium Silicate Beads Media 2.7 - 3.2 Mm Size Good Sphericity 1

6.Why Choose Us?



Professional manufacturer,Providing good products with stable quality & favorable price;



Equipped with the most advanced production line and testing equipments,certificatd by

ISO9001&14001;



Products has been exported to USA,South Korea,Vietnam,Japan etc.
