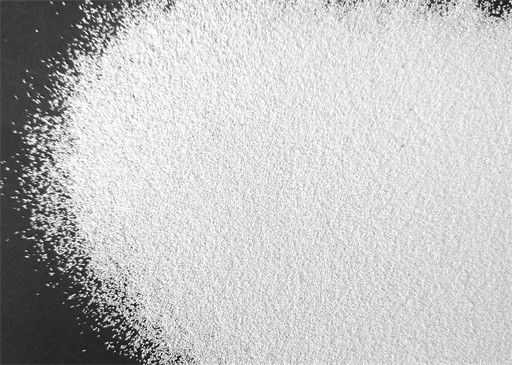

High Efficiency Ceramic Blasting Media B60 Specification Pipeline Zirconia Sand
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | FUDA |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet |
| Delivery Time: | 3-10 days depending on the order quantity |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200mt per month |
|
Detail Information |
|||
| Product Name: | Zirconium Sand | Usage: | Pipeline Surface Cleaning |
|---|---|---|---|
| Specification: | B60 | Particle Size: | 0.125-0.250mm |
| Vicker Hardness: | 700 HV | Free Sample: | Available |
| High Light: | abrasive blasting media,bead blasting material |
||
Product Description

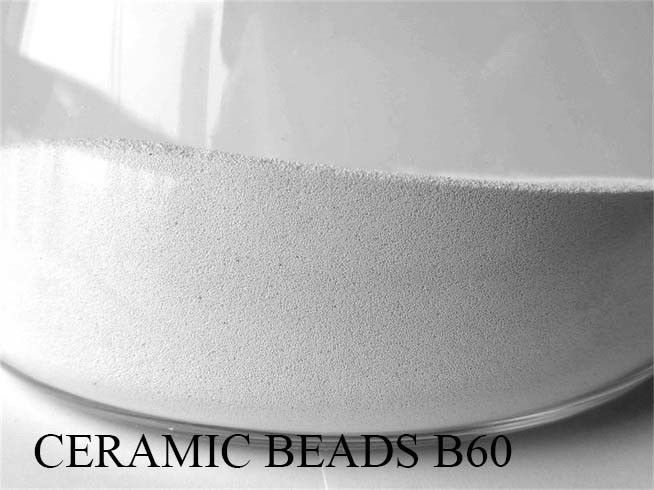

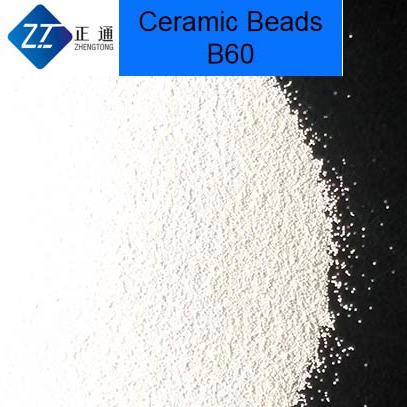

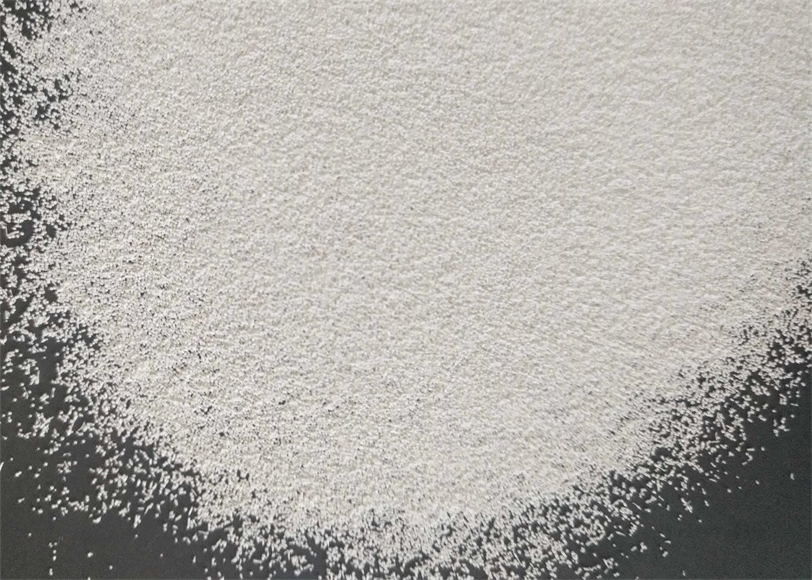

High Efficiency Ceramic Blasting Media Zirconia Beads B60 for Pipeline Cleaning
1. Product Description
The ceramic blasting media zirconia beads is obtained from zirconium sand in electric furnace
through the special technology.It is widely used in surface finishing processes to improve the wear
properties of metal surfaces, then achieve better visual effect and texture.
2. Main Technical Index of Ceramic Blasting Media Zirconia Beads
| Commodity | Main Chemical Index | Main Physical Index |
|
Ceramic Blasting Media Zirconia Beads (Melting Method) |
ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 | |
| Al2O3 7-13% |
Vickers Hardness: 700 kg /mm2 |
| Particle Size | |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized | |
3. Product Features of Ceramic Blasting Media Zirconia Beads
High Hardness and Good Elasticity
Ceramic beads has high hardness and good elasticity,it is able to be rebounded in multi-angles in
peening process,it is especially suitable for light metal workpieces to improve the visual effect;
No damage to the Treatment Surface
Ceramic Beads is spherical in shape and superior smoothness,so there is no damage to the blasting
equipment and treatment surface;
Low Breakdown Rate and High Price/ performance ratio
The greater density of ceramic beads makes it higher modulus of elasticity and greater impact energy,
it will reduce shot peening pressure and energy consumption to get the same shot peening effect.Its
lower breakdown rate will reduce the refueling times, improve working efficiency,then finally save the
production cost;
No Ferrous Contamination to the workpieces
Zirconia Ceramic Beads contains zero iron,then there is no ferrous contamination for treatment surface,
it can be used to replace steel shot where ferrous contamination is not allowed.
Clean and Healthy Working Environment
Low dust generated in peening process,it will create cleaner working environment and better visul sense,
the operator will escape from the danger of silicosis.
4. Main Application of Ceramic Blasting Media Zirconia Beads
Surface cleaning for aluminium alloy,tatinium alloy and stainless steel etc;
Surface Pretreatment for electroplating, painting, anode etc., to remove the impurity and increase product
surface adhesion;
Surface finish for delicate medical instruments to make small rounded conners at thejunction of two surfaces
to enhance the smoothness and texture;
Surface shot peening for automotive and aviation components such as automotive gears, aerospace engine
blades, turbines etc to improve the fatigue life.
5. Applicable Equipment:
Manual Sandblasting machine;
Automatic Blasting Machine;
Open Blasting Machine;
Sandblasting Room
6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
7. FAQ
Are you direct Manufacturer of Zirconia Ceramic Beads ?
Yes,we are professional manufacturer,equipped with the most advanced production line and testing
equipment;
Are you able to provide free samples?
Yes, few quantity free sample is avialable.
Could you please name your some clients?
Yes, our clients includes Foxconn, Samsung Electronics etc.
If you have any other questions,please contact me freely.
