Product Details:

Place of Origin: Shanxi, China
Brand Name: Zhengtong
Certification: ISO9001, ISO14001
Model Number: B170

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

bead blasting material

,

ceramic bead blasting media

Product Description

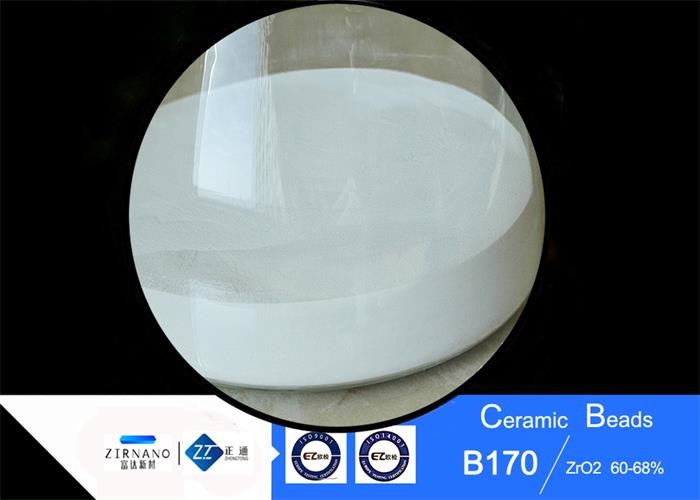

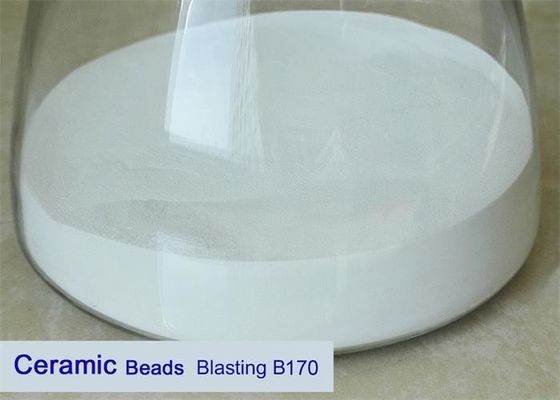

Ceramic blasting media B170 Automotive industry blast reinforcement refurbishment



Description of Ceramic blasting media



Ceramic Beads are spherical sandblasting media made by the electric fusion of zirconia oxides sand at very high temperature. Ceramic Beads are with good toughness and fracture resistant, ensuring surface treatment consistent intensities and satin finishes.



Specification of Ceramic blasting media



Manufacturing process: Melting method



ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%



Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV



Sizes



B20 B30 B40 B60
600-850µm 425-6000µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm



Special sizes available against clients’ requirement.





Features of Ceramic blasting media



Strong chemical resistance

Guarantees constant performance eg. consistent Surface blasting effect.

Low dust emission

Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.

Not easy to break

Recyclable,and can reduce the refueling times, improve working efficiency.



Application of Ceramic blasting media



Automotive industry-sandblasting reinforcement and refurbishment

Suitable for gearbox gears, automotive aluminum alloy wheels, automotive cylinder liners/piston parts/shock absorbers, engine crankshaft blasting/shot peening, and automobiles, motorcycles, and electromechanical equipments moving parts refurbishment.

The refurbishment and cleaning of all moving parts can be achieved by using ceramic beads blasting, and restore the metal luster of the work piece. At the same time, it can eliminate the fatigue stress of the parts and prolong their service life.



Other application like Sandblasting finishing, Surface cleaning, Surface Pretreatment etc..



Ceramic B170 Media Blasting Media Automotive Industry Blast Reinforcement 0

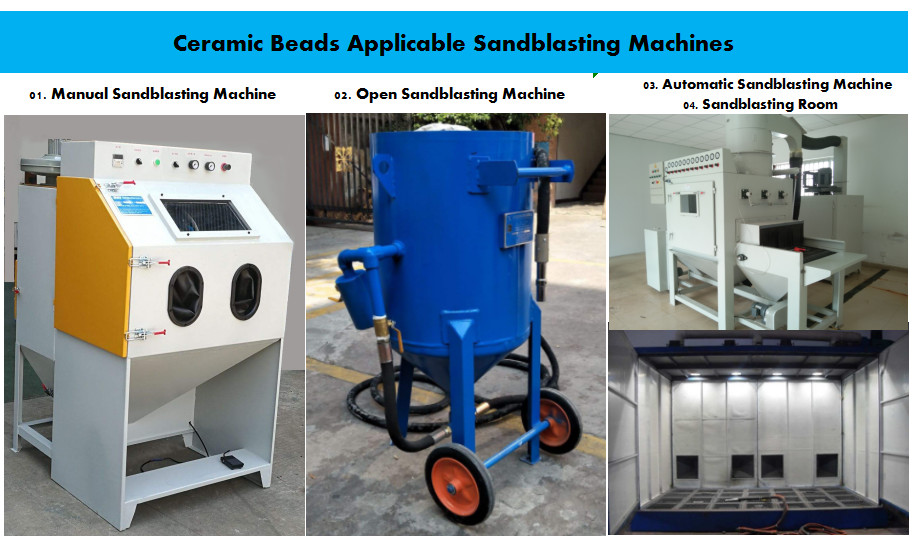

Suitable sand blasting machine:

Manual type series:

Manual closed type blasting machine, manual cart rotary blasting machine, double gun double station manual blasting machine, manual (automatic) roller dual-purpose blasting machine, manual closed pressure

Automatic series of sand blasting machine:

Automatic closed pressure blasting machine, automatic conveying type blasting machine, crawler type blasting machine, automatic turntable blasting machine, automatic turntable continuous pressure blasting machine, automatic conveying

Open type series of sand blasting machine:

Crankshaft inner wall automatic sand blasting machine

Blasting room series:

Pneumatic conveying type blasting room, mechanical conveying type blasting room, etc.
