Metal Surface Finishing Ceramic Bead Blasting Media B170/B205 / B400 High Toughness

Metal Surface Finishing Ceramic Bead Blasting Media B170/B205 / B400 High Toughness

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Color: White Shape: Round
True Specific Gravity: ≥3.85g/cm3 Bulk Density: 2.3g/cm3
Vicker Hardness: 700HV Processing Method: Melting
Usage: Blasting Media For Metal Surface Free Sample: Avilable
Loading Port: Tianjin,China Or Qingdao,China
High Light:

abrasive media blasting

,

low dust blasting media

Product Description

Metal Surface Finishing Ceramic Bead Blasting Media B170/B205 / B400 High Toughness

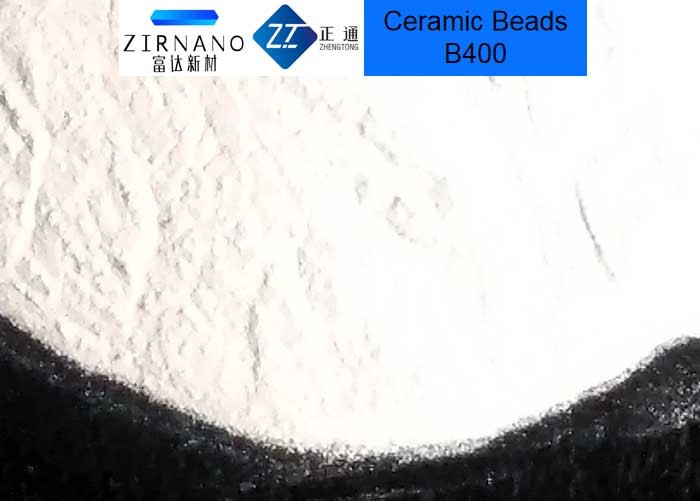

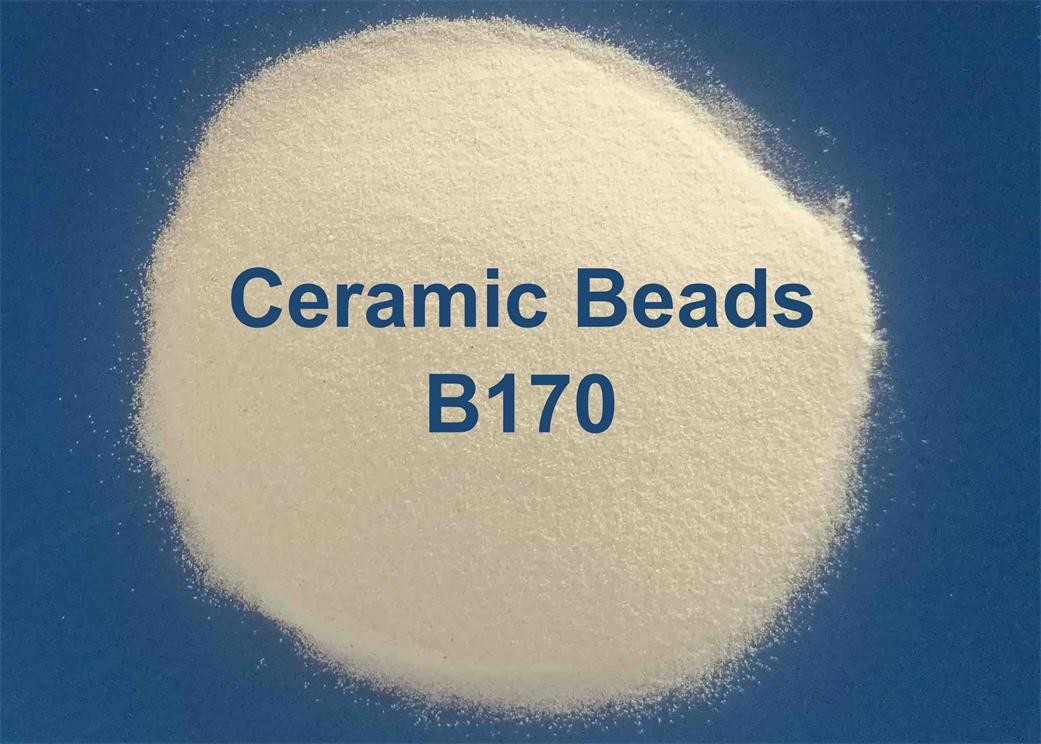

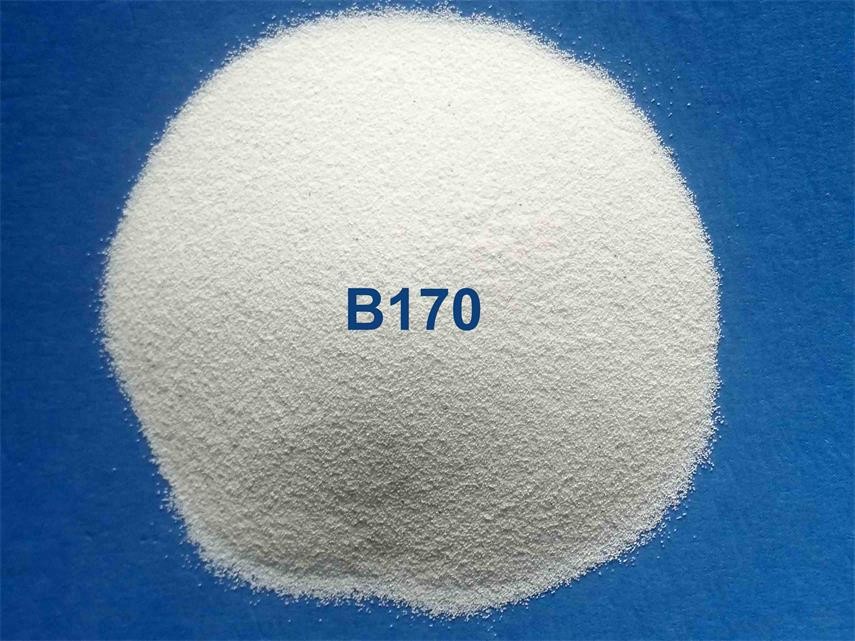

1. Description of Ceramic Bead Blasting Media



The ceramic bead blasting media is obtained mianly from high quality zirconium sand, melting and blending

in  electric furnace under high temperature more than 2000 degrees, then made into micro beads by the

special technology through screening, inspection, packing process.

It has the characteristics of high hardness,high durability  and non ferrous contamination. Then it is widely

used as blasting media where non-ferrious required in the working process.



2. Main Technical Index of Ceramic Bead Blasting Media



Commodity Main Chemical Index Main Physical Index

Ceramic Bead Blasting

(Melting Method)

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13%

Vickers Hardness: 700 kg /mm2



Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized



3. Product Package:

Metal Surface Finishing Ceramic Bead Blasting Media B170/B205 / B400 High Toughness 0



4. Main Product Features of Ceramic Bead Blasting Media

High Hardness and Good Toughness

It will provide better cleaning power for ceramic beads in blasting process.



High Efficiency and No Surface Contamination to the Treatment

Ceramic beads can be recycled 70-90 times with breakdown rate about 1.2%,then it is one high efficiency

and low energy consumption blasting media.

Its white color and solid round shape makes it no damage and surface contamination.



Low Breakdown Rate and Consistent Blasting Effect

Also due to the low breakdown rate,people do not need to refuel the beads frequently,then the beads in the

blasting equipment will maintain the almost quantity and same shape,then it will achieve the high consistent

blasting effect.



Clean and Environmental Friendly

Ceramic beads is also an clean and friendly blasting media,there is no dust and hidden dangers of silicosis

to the worker’s body.



Superior Smoothness

Compared with steel beads, ceramic beads has superior smoothness,it can be used in peening applications

in the place of steel shots where ferrous contamination is not acceptable.



5. Why Choose Zirnano Ceramic Beads?

Higher clearliness

Our ceramic bead are screened more than six times and blow-cleaning under high temperature,

which provides higher clearliness and ensures it to be work normally in humid weather;



More concentrated particle size distribution

B400(0.030-0.063μm) is more concentrated than the other one(0-0.063μm) from other company,which will

achieve  better blasting effect.



Multiple Authentication

Certificated by ISO9001 ISO14001,SGS,ROHS



Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc



Products in good quality & stable performance,competitive price,flexible payment terms.



6. Main Application of Ceramic Bead Blasting Media

Surface Finish for the metal surface,middle frame, built-in parts of 3C products(computer, communication,

Consumer Electronics) to achieve the different reflection and matte effect;



Sandblasting for hardware parts and precision machinery such as mechanical gears to improve lubrication

conditions and reduce the noise.



Molds cleaning to remove the oil stains in the surface of glass molds, automotive molds,plastics molds,

tire molds,dies etc.



Surface cleaning for Metal pipes such as copper pipes and steel pipes to clean  its inner and outer walls;



Furniture industry sandblasting for aluminium alloy doors,windows and the metal handle etc.



Sandblasting for golf head and golf club etc.



Surface finish for delicate parts such as the medical instrument and make small rounded conners at the

junction of two surfaces,enhance the smoothness and texture.



Shot peening for aviation& aerospace and shipbuilding,automotive industry such as springs,gears and

other components.

Metal Surface Finishing Ceramic Bead Blasting Media B170/B205 / B400 High Toughness 1
