Sphere Shape 95 Zirconia Grinding Media For Color Paste Coating / Painting
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-60mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 2-20 days |
| Supply Ability: | 3000mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Beads Grinding Media | Color: | White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Package: | 25kgs Barrels+Pallet | Port Of Loading: | Tianjin/Qingdao, China |
| High Light: | zirconium oxide beads,zirconium oxide balls |
||
Product Description

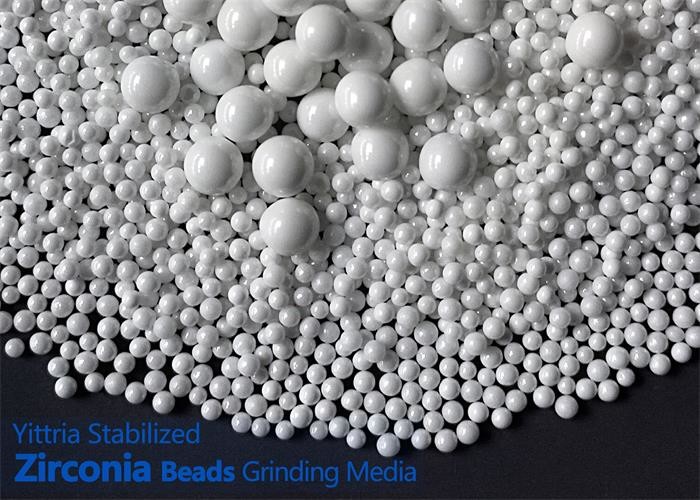

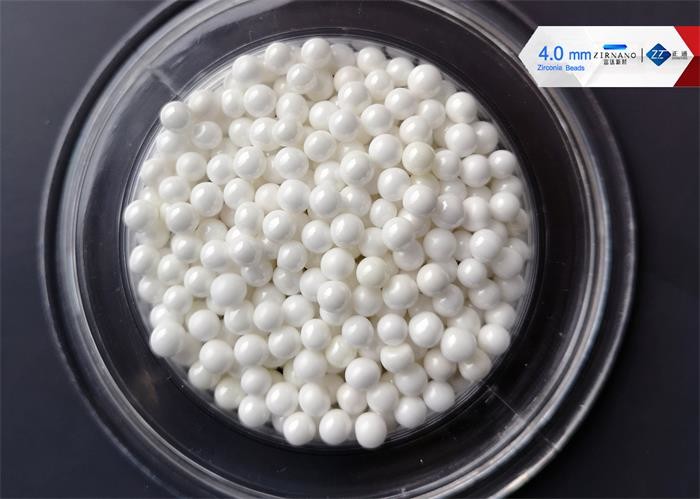

Sphere Shape 95 Zirconia Grinding Media For Color Paste Coating / Painting
Zirconia beads, called TZP, also called zirconium beads, 95 zirconium beads, yttrium stabilized zirconia beads, zirconia balls, zirconia ceramic balls, Zirconia Ceramic Grinding Media, etc. Use micron/sub-nanometer zirconia powder as raw material, sintered by medium-high temperature by sintering method. It has good spherical gloss, high density, high hardness, low abrasion and high grinding efficiency. It is the high quality grinding media.
Manufacturing process: Sintering Method
| ZrO2 | Y2O3 | Other |
| 95% Min. | 4.5% Min. | 0.5% Max. |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 3.7g/cm3 | 6.0g/cm3 | 1100 HV |
Size Φ mm
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 | 0.8-1.0 |
| 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 | 1.8-2.0 | 2.0-2.2 |
| 2.2-2.4 | 2.4-2.6 | 2.6-2.8 | 2.8-3.0 | 4 | 5 |
| 6 | 7 | 8 | 10 | 12 | 15 |
| 17 | 20 | 25 | 30 | 40 | 50 |
|
Special specifications can be customized. |
|||||
Package: 25kgs barrels+Pallet
Delivery: Usually 2-5 working days after order confirmed
| 01 | Good Sphericity | Smooth surface and good fluidity |
| 02 | High Density | High grinding efficiency, 10-12 times that of glass beads and 4-6 times that of zirconium silicate beads |
| 03 | High Strength, High Toughness | Impact resistance, long life, high speed operation not break. The abrasion resistance is 30-50 times that of glass beads and 8 times that of zirconium silicate beads. |
| 04 | Low Abrasion Loss | Zero pollution |
| 05 | Acid and Alkali Resistant | Good stability |
01 Electronic/Ceramic Slurry
02 Nano Materials/Magnetic/Rare-earth Material
03 Battery Material/Lithium Battery
04 Non-metallic mineral/ ground calcium carbonate
05 Titanium Dioxide
06Coating / ink /Dye/pigment
07 Medicine/Pesticides
08 Cosmetics
- Bar pin horizonal grinding mill
- Turbine horizonal grinding mill
- Ring-type grinding mill
- Centrifugal grinding mill
- Nano Grinder
