Min 95% AL2O3 Barmac Brown Fused Aluminum Oxide BFA For Bonded Abrasives
Product Details:
| Place of Origin: | Henan,China |
| Brand Name: | ZHENGTONG |
| Certification: | ISO9001,ISO14001 |
| Model Number: | F4-F220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Metric Ton |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Ton bag,25kg bag+Ton bag, 25kg bag+pallet,special packages can be customized. |
| Delivery Time: | Within 7-20days depending on the order quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000mts per month |
|
Detail Information |
|||
| Product Name: | Brown Aluminum Oxide | Usage: | Bonded Abrasives,refractory,sandblasting Etc. |
|---|---|---|---|
| Crushed Method: | Barmac,Ball Mill,Roller | Product Standard: | GB/T,FEPA Standards Etc. |
| Grain Size: | F4-F220 | Mohs Hardness: | 9 Mohs Min |
| Vicker Hardness: | 2100kg/mm2 | Bulk Density: | 1.68-1.98g/cm3 |
| True Specific Gravity: | 3.97g/cm3 | ||
| High Light: | brown fused alumina,grit aluminum oxide |
||
Product Description
Min 95% AL2O3 Barmac Brown Aluminum Oxide BFA F12-F220 for Bonded Abrasives
1. Description of Brown Aluminum Oxide BFA
Brown Aluminum Oxide is also named as brown fused alumina, it is made by high-quality bauxite,coke
(anthracite) as main raw materials, melting in an electric arc furnace at a temperature over 2200℃,then
made into different grain size through cooling crystallization, sort, crush, magnetic separation , screen size,
blow cleaning etc..
Its main chemical composition is Al2O3 which is over 95%, it has the characteristics of high hardness,
great toughness and sharpness.
2. Main Technical Index of Brown Aluminum Oxide BFA
| Commodity | Usage | Grit | Main Chemical Index | ||||
| Al2O3 | TiO2 | SiO2 | Fe2O3 | Magnetic | |||
|
Brown Aluminum Oxide
|
Abrasive |
F4～F80 P12-P80 |
≥95% |
≤3.5% |
≤1.0% | ≤0.30% | ≤0.05 |
|
F90～F150 P100-P150 |
≥94% |
≤3.5% |
≤1.0% | ≤0.30% | ≤0.03 | ||
|
F180～F220 P180-P220 |
≥93% |
≤3.5% |
≤1.0% | ≤0.30% | ≤0.03 | ||
| Refractory | 0-1mm,1-3mm |
≥95%
|
≤3.5%
|
≤1.0%
|
≤0.30%
|
/ | |
| 3-5mm,5-8mm | |||||||
| 0-25mm,0-30mm | |||||||
| 200mesh | ≥94% | ≤3.5% | ≤1.0% | ≤0.30% | / | ||
| 325mesh | ≥94% | ≤3.5% | ≤1.0% | ≤0.30% |
/ |
||
| Main Physical Index | |
| Color | Brown |
| Crystal Structure | Trigonal |
| True Specific Gravity | ≥3.97g/cm3 |
| Bulk Density | 1.68-1.98g/cm3 |
| Vicker Hardness | 2100kg /mm2 |
| Mohs Hardness | ≥9 Mohs |
| Compressive strength | 34N |
| Melting point | 2050℃ |
| Refractoriness | 1900℃ |
| Furnace Type | Tilting furnace |
| Crushing Method | Barmac,Roller,Ball mill |
3. Main Applications of Brown Aluminum Oxide BFA
Bonded abrasives : resin cutting discs, grinding wheels,honing stones etc.
Coated abrasives: sandpaper, sandbelts,flap wheels etc.
Sandblasting media to clean,polish,cut or finish surfaces both in dry or wet blasting.
Refractory materials: castable, refractory brick etc.
Anti-skid materials in high traffic areas,aircraft runway,parking floor,bridge etc.

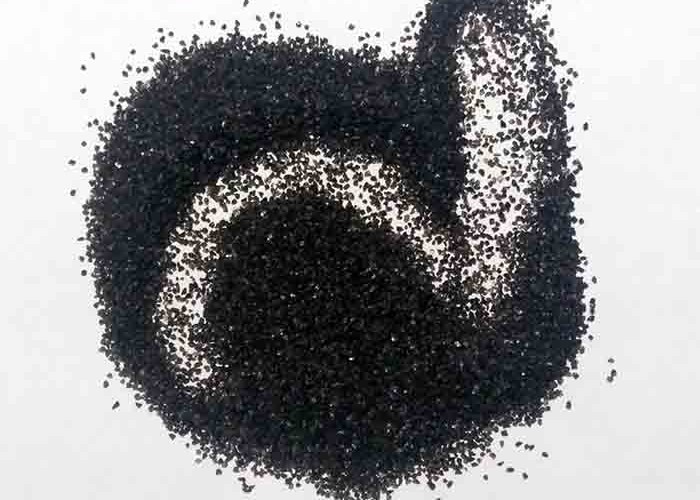

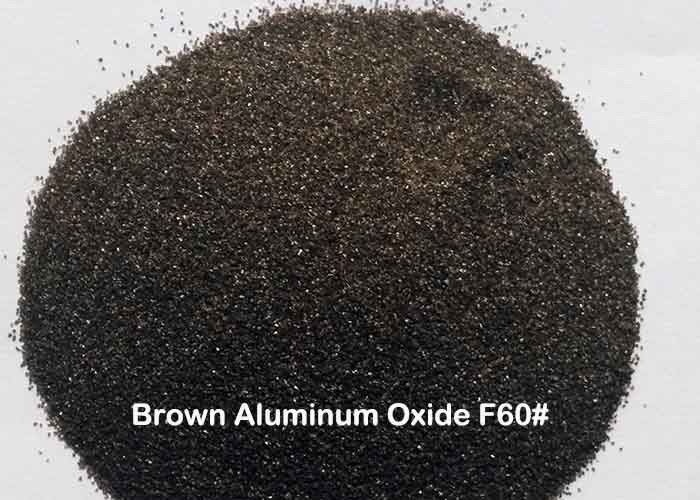

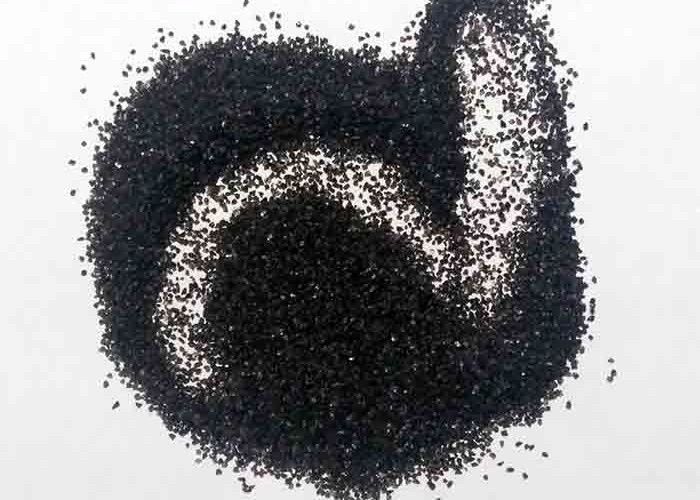

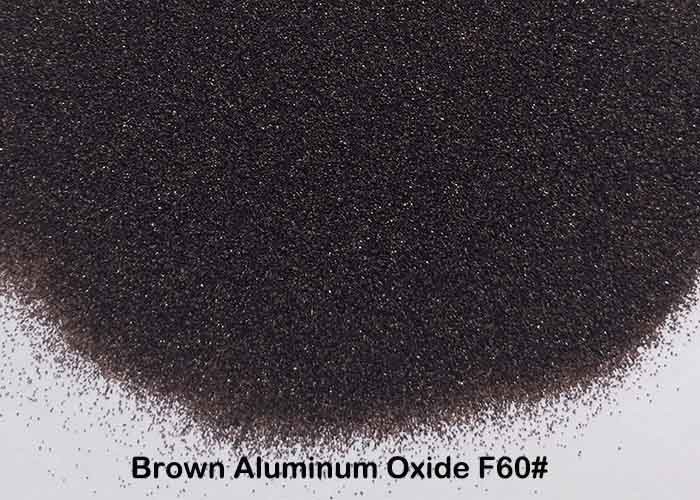

4. Product Show
5. Product Package
